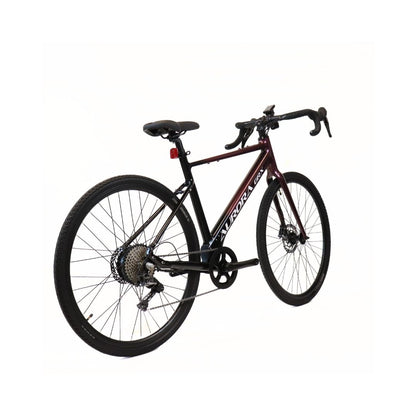

Aurora GRX
BUILD DETAILS

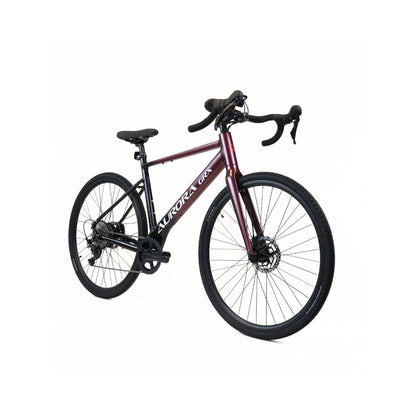

The Aurora GRX is a purpose-built e-bike designed for riders who push boundaries on both road and gravel. With its lightweight AL-T6 frame, gravel-tuned components, and 1x11 GRX groupset, and advanced electronics this bike delivers speed, agility, and precise control on technical courses, while maintaining a comfortable riding position and geometry for long distance rides.
- Size (L) Frameset - Recommended Rider Height: 5'7" - 6'4" (170 cm - 195 cm)
Performance
- Top Speed: 32 Kph
- Est. Range: 40-90 km
- Charging Time: 2 hr (80%) 3.5 hr (full charge)
- Total Weight: 19.8 / 44 lbs.
- Payload Capacity: 110 Kg / 245 lbs.
- Min. Rider Height: 5'6" (168 cm)
Specifications
Frame & Main Components |
|
|
Frame |
Aluminium AL-6061 |
|
Front Fork |
Aluminum alloy - Gravel |
|
Stem |
SM-A92-8 28.6*31.8*70mm AL-6061 |
|
Handlebars |
SM-AL-197 420mm AL-6061 |
|
Wheelset |
28" P19D double wall AL alloy |
|
Tires |
Kenda, K-1216 700C*40C Anti-puncture |
|
F/R Brakes |

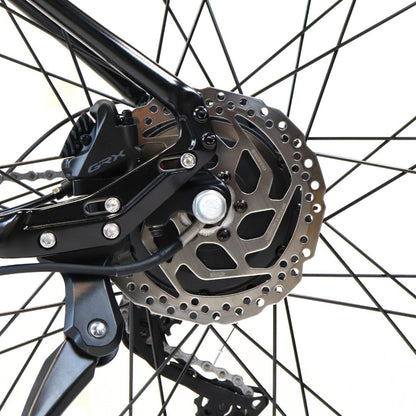

GRX- Shimano RX440 160mm,Hydraulic |
|
Saddle |

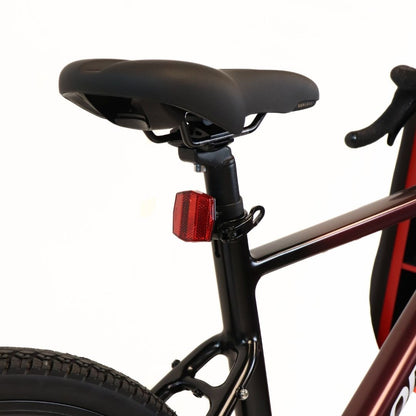

SR: Black leather, GRAVEL dedicated |
Transmission |
|
|
Crank |
170mm AL Crank |
|
Chainwheel |
42T CL49 Aluminum, for torque sensor |
|
Freewheel |

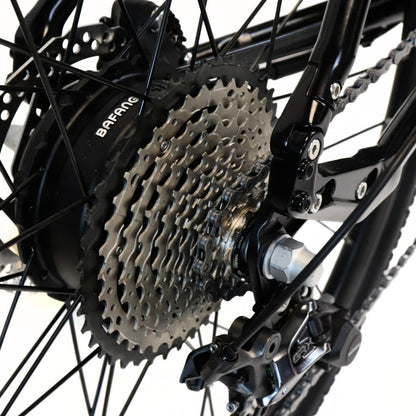

Shimano DEORE XTCS-M8000, , 1x11 cassette |
|
Chain |
KMC E11-S EPT 122L 11-speed anti-rust |
Electrical System |
|
|
Motor |

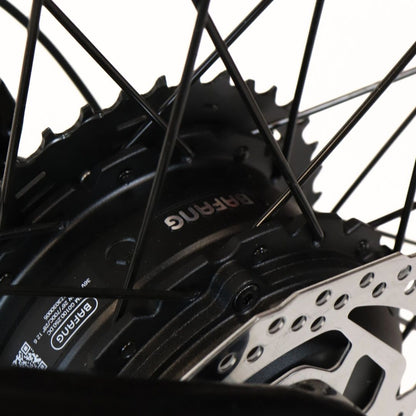

BAFANG RM G0100 ; 250W | 40 N.M |
|
Battery |
LG 378 Wh (UL Certified) |
|
Controller |
36V 15A |
|
PAS |
LDS B.B integrated Torque sensor |
|
Throttle |
|
|
Display |

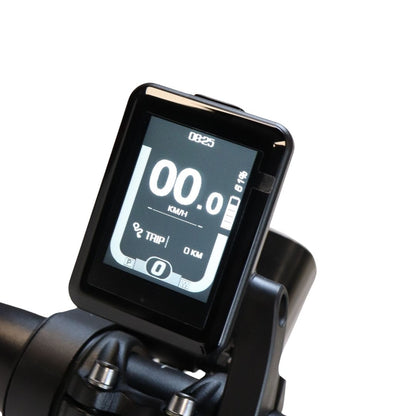

Velofox DM02 |
|

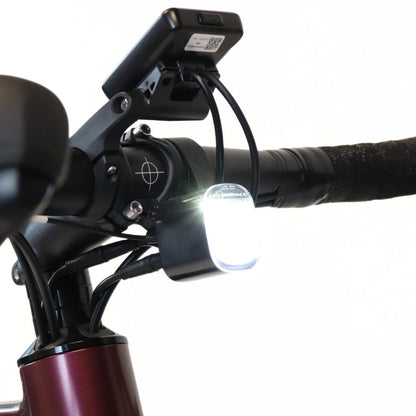

Front Light |

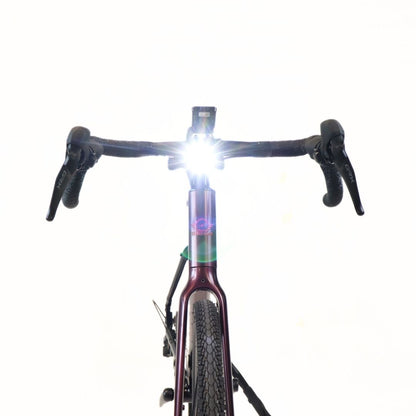

SATE-LITE C10 LED |
|
Rear Light |
|
|
Charger |
42V 2A charger DC2.1 |
Performance |
|
|
Top Speed |
32 km/h |
|
Est. Range |
50-90 km |
|
Curb Weight |
20 Kg (44 lbs) |
|
Min. Rider Height |
5'6" (168 cm) |
GEOMETRY:
Optional Add-ons
Couldn't load pickup availability
Pickup available at Store location
Usually ready in 24 hours2-Years Warranty
Experience peace of mind with parts, and service from local Canadian bike shops, under our comprehensive warranty coverage
Free Shipping
Get your e-bike delivered in just 2–6 days, Across Canada.
30-Day Returns
Changed your mind? Return or exchange your e-bike within 30 days, no hassle.
Optimized for gravel

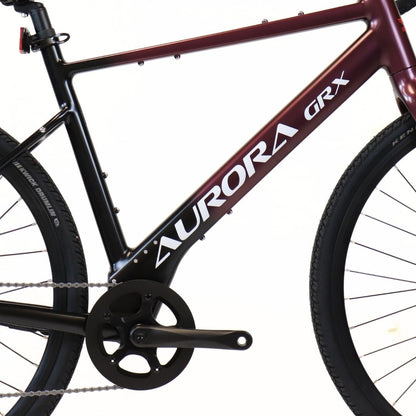

Precision-engineered AL6061-T6 aluminum gravel frame strikes the perfect balance between race-ready stiffness for attacking technical descents and endurance-focused geometry that keeps you comfortable through century rides. The gravel-tuned front fork translates every inch of trail into precise handling feedback, while the aggressive 700Cx40 wheelset setup tackles loose gravel, hardpack, and everything in between with confidence.
Integrated electronics
Fully integrated UL-certified 375 Wh battery delivers extended range without compromising handling. Advanced torque-sensing pedal assist amplifies your effort with natural, responsive power that adapts to every pedal stroke. Five customizable PAS modes let you dial in the perfect level of assistance, while full analog mode preserves the pure gravel experience when you want to ride unassisted.
SHIMANO GRX 1x11 Groupset
Shimano's purpose-built GRX 1x11 drivetrain delivers precise, wide-range gearing optimized specifically for gravel terrain, eliminating front derailleur complexity while maintaining the gear range you need for steep climbs and fast descents. GRX hydraulic disc brakes provide confident, modulated stopping power in all conditions, from dusty singletrack to wet pavement, with consistent lever feel that lets you brake later and harder when it counts.
The Ultimate E-GRAVEL RIde

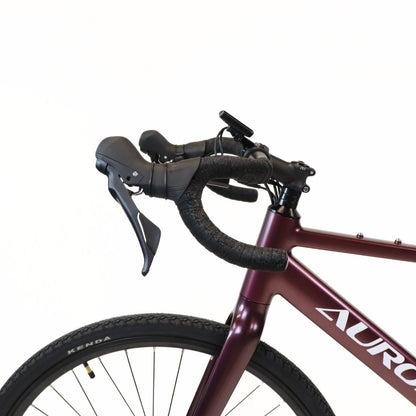

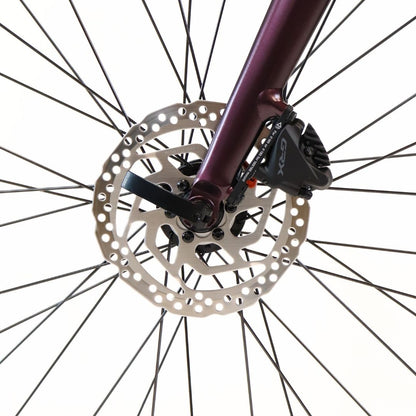

Full Shimano GRX RX440 hydraulic groupset gives you the confidence to push harder and stop faster on any terrain.

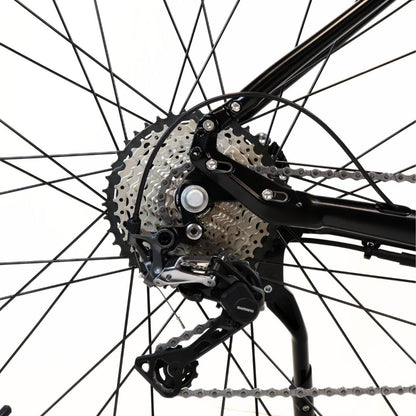

Engineered for tough gravel conditions; The 1x11 Shimano GRX RD600 drivetrain gives you a wide range of gearing to tackle any hill climb.
Advanced LDS Bottom Bracket integrated torque sensor provides customizable and natural feeling pedal assist.
Equipped with 40mm Kenda gravel tires as standard. The Aurora Frame provides up to 48mm tire clearance.
Rated Torque
Top Speed
Est. Range
Weapon of Champions
AURORA GRX
Ultra Light Frame
Nimble, responsive and Ultra lightweight frame & gravel-specific fork.
N.W( including battery): 19.8 Kg / 42 lbs.
Latest Gravel Technology
Ride the cutting-edge of gravel technology with SHIMANO GRX 1x11 groupset and hydraulic brakes
Cutting-Edge Electronics
B.B integrated torque sensor + Advanced Telemetry
Integrated battery & controller provides superior frame stiffness, safety, and improved riders response.
SGS; UL-C Certified
All Ebikecan models & electronics are tested and certified by SGS Labs to UL-2849/UL-2271 Standards.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
Frame and Main Components
Frame:
Aluminium AL6061-T6
Front Fork:
Reinforced AL6061-T6
Stem:
PROMAX - SM-A92-8 @28.6*31.8*70mm AL6061-T6
Handlebar:
PROMAX - SM-AL-197 420mm AL6061-T6
Wheelset:
700C P19D double wall Al Alloy
Kenda, K-1216 700C*40C Anti-puncture
F/R Brakes:
SHIMANO GRX RX400 (160mm)
Saddle:
SR - Light Series Black leather saddle,
Electrical System
Motor:
BAFANG RM G0100 ; 250W, 40 N.m
Battery:
Integrated LG Prismatic 378 Wh (UL-2271)
Controller:
Sine Wave Controller – 36V15A
PAS:
LDS - Torque sensor, BBTS1 7435-36D
Display:
Velo Fox - DM02 Full colour LCD
Front Light:
SATE-LITE C10 LED
Rear Light:
N/A
Charger:
42V 2A charger DC2.1（D power）
Transmission
Crank:
Prowheel - 170mm Aluminium Crank
Chainwheel :
42T CL49 Aluminum, torque sensor Compat.
Freewheel:
Shimano, CS-M8000, DEORE XT, 11 speed cassette
Chain:
KMC - E11-S EPT 1/2" - 11 speed anti-rust chain.
Performance
Top Speed:
32 km/h
Est. Range:
40-90 km
Charging Time:
3.5 hr (Charge from 0% to 100%)
Total Weight:
19.8 Kg (42 lbs.)
Measurements

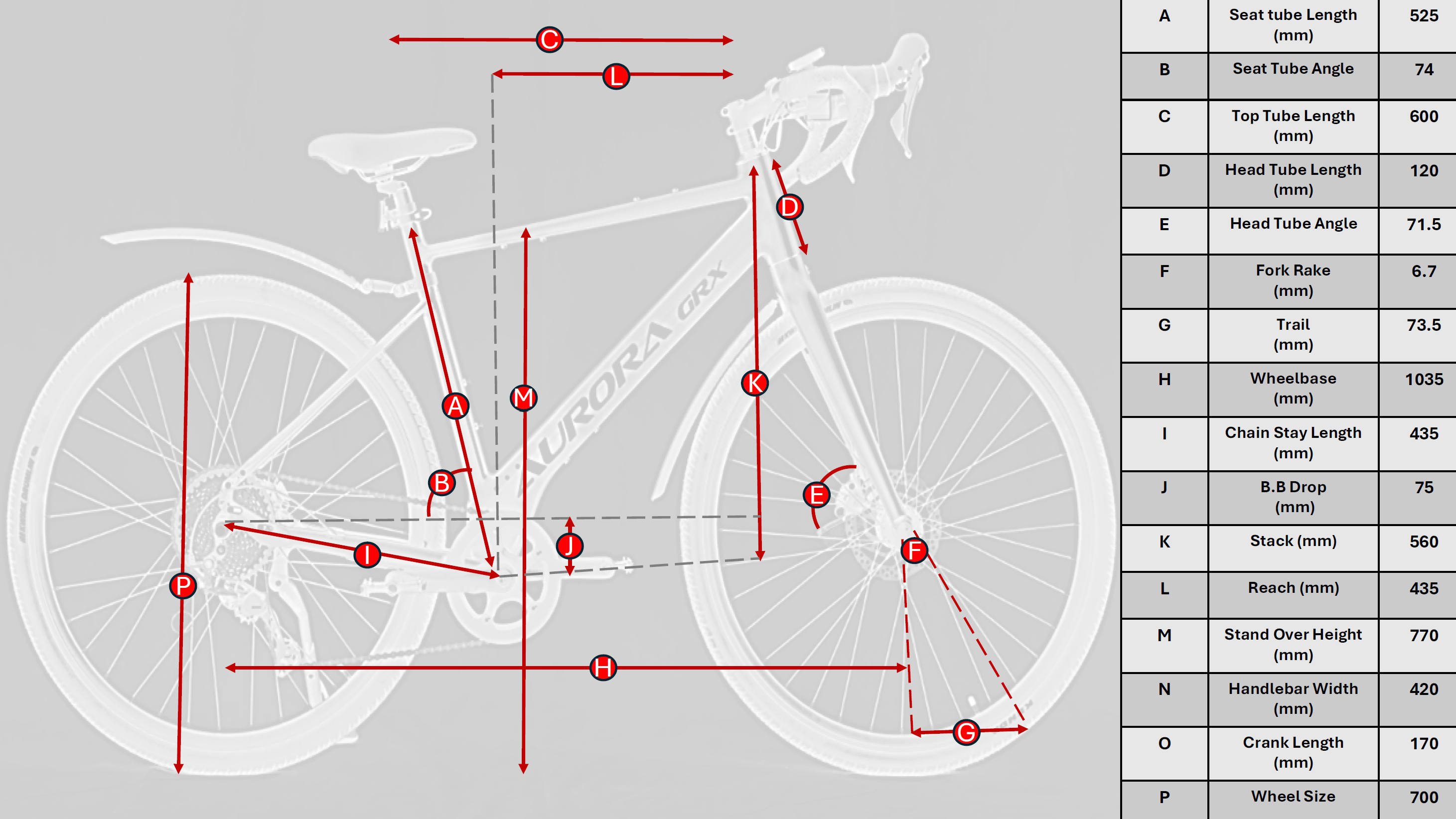

Geometry
FAQs
What is the estimated range on a full battery charge?
About 60-90 Kms
Note: Actual range may vary depending on terrain, rider weight, weather conditions, and riding style.
How long does it take to fully charge the battery?
Charging from 0% to 100% takes approximately 3.5 hours.
What kind of warranty comes with your E-bikes?
Frame: 4 years
Electrical Components: 18 months
(Includes: battery, motor, controller, charger, display, sensor, and throttle)
Is Aurora GRX water resistant?
Yes, all our e-bikes are designed with an IPX65 water resistance rating, making them safe to use in rainy conditions. However, we advise against fully submerging the e-bike in water.
Can I assemble them by myself?
Yes! Our E-bikes arrive 90% pre-assembled. You'll only need to install the handlebar, front tire, and lights. The process is simple and straight forward.
Are financing or payment plans available?
Yes, we offer flexible financing options through Klarna and PayPlan by RBC.
You can easily select your preferred plan at checkout — it only takes a few clicks!
What is the recommended rider height range?
Aurora GRX is ideal for riders between 5'6" and 6'5" (168–198 cm).
What are the differences between Class 1, Class 2, and Class 3 eBikes?
Class 1: Pedal assist only, no throttle — up to 32 km/h
Class 2: Pedal assist + throttle — up to 32 km/h
Class 3: Pedal assist only, no throttle — up to 45 km/h
