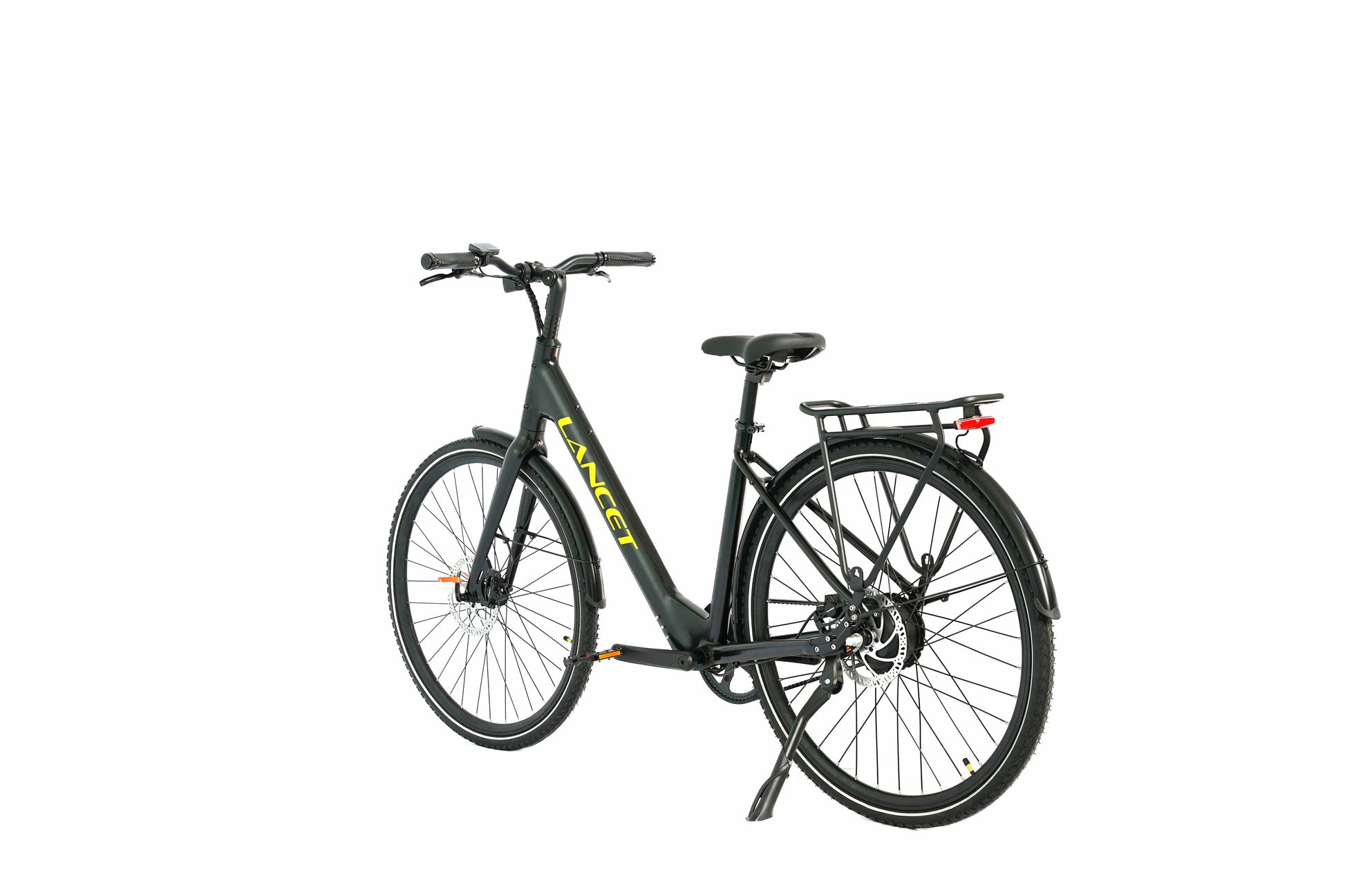

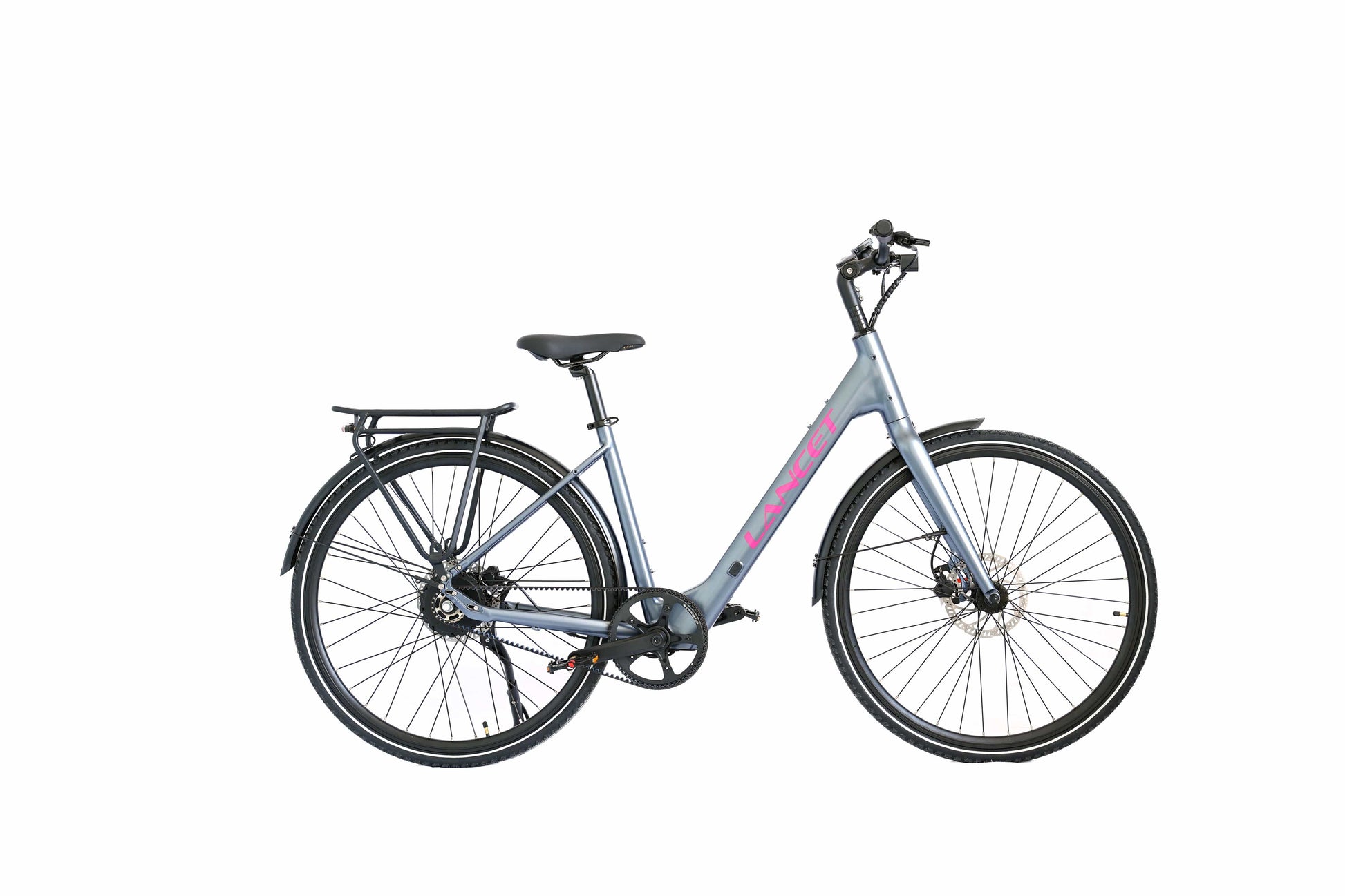

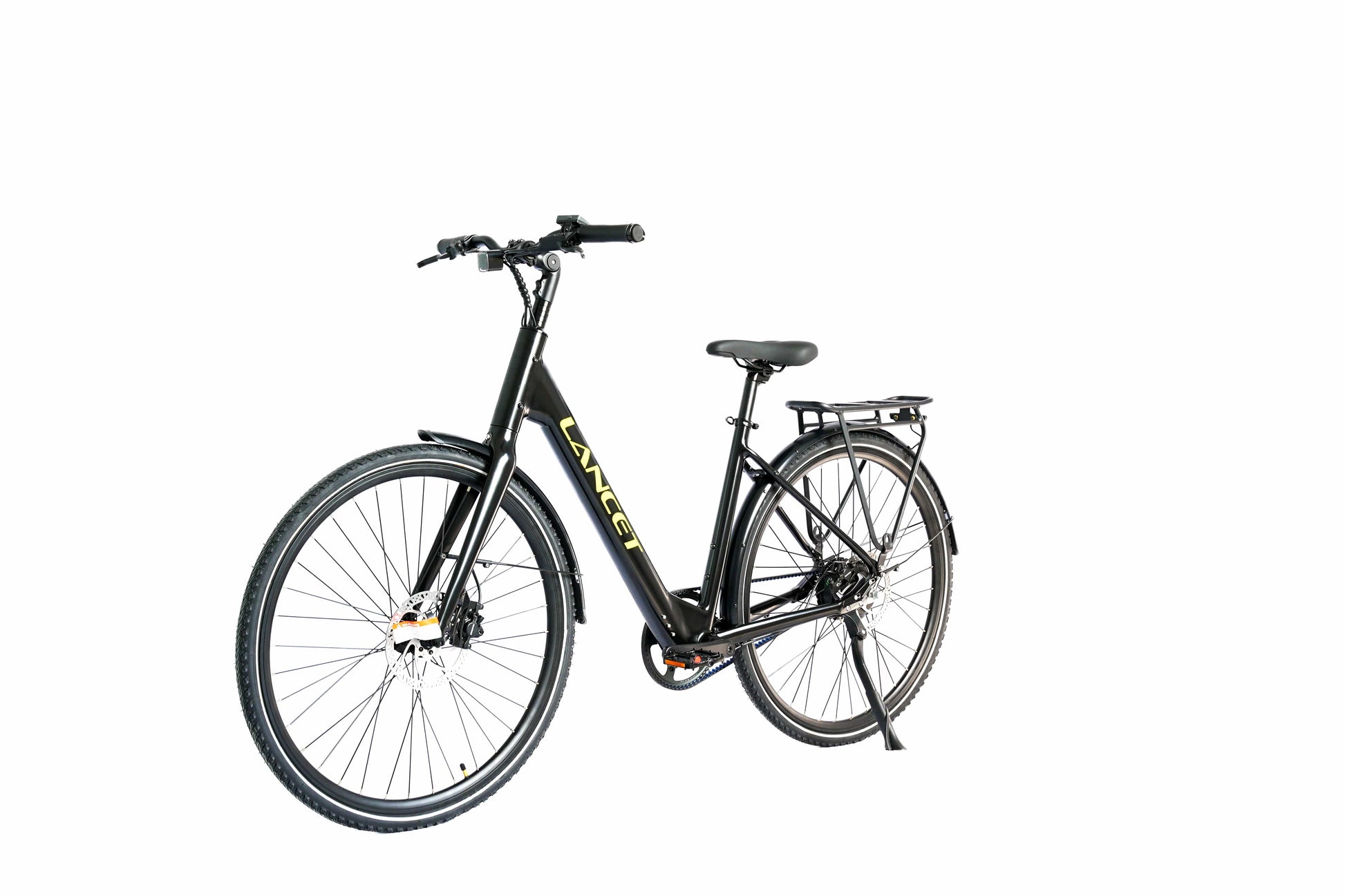

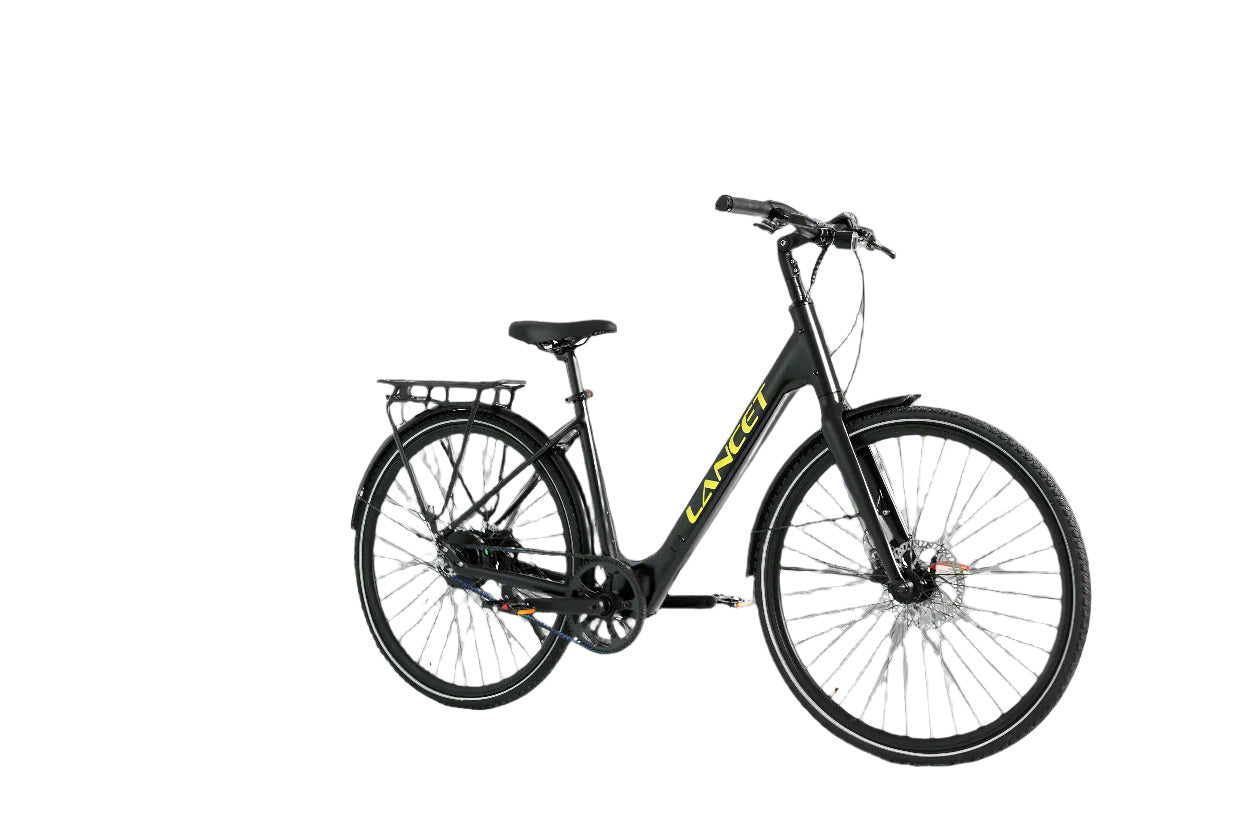

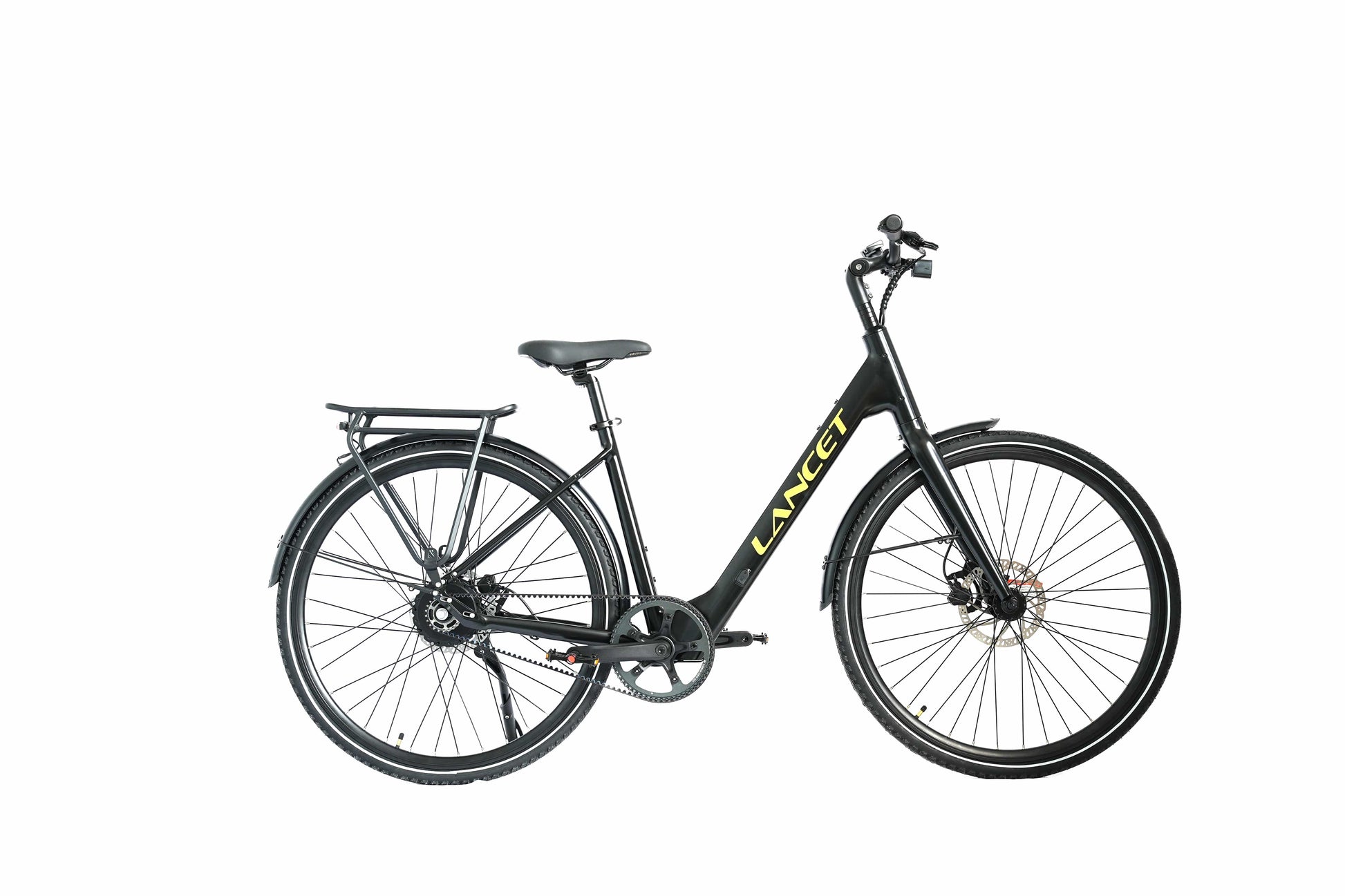

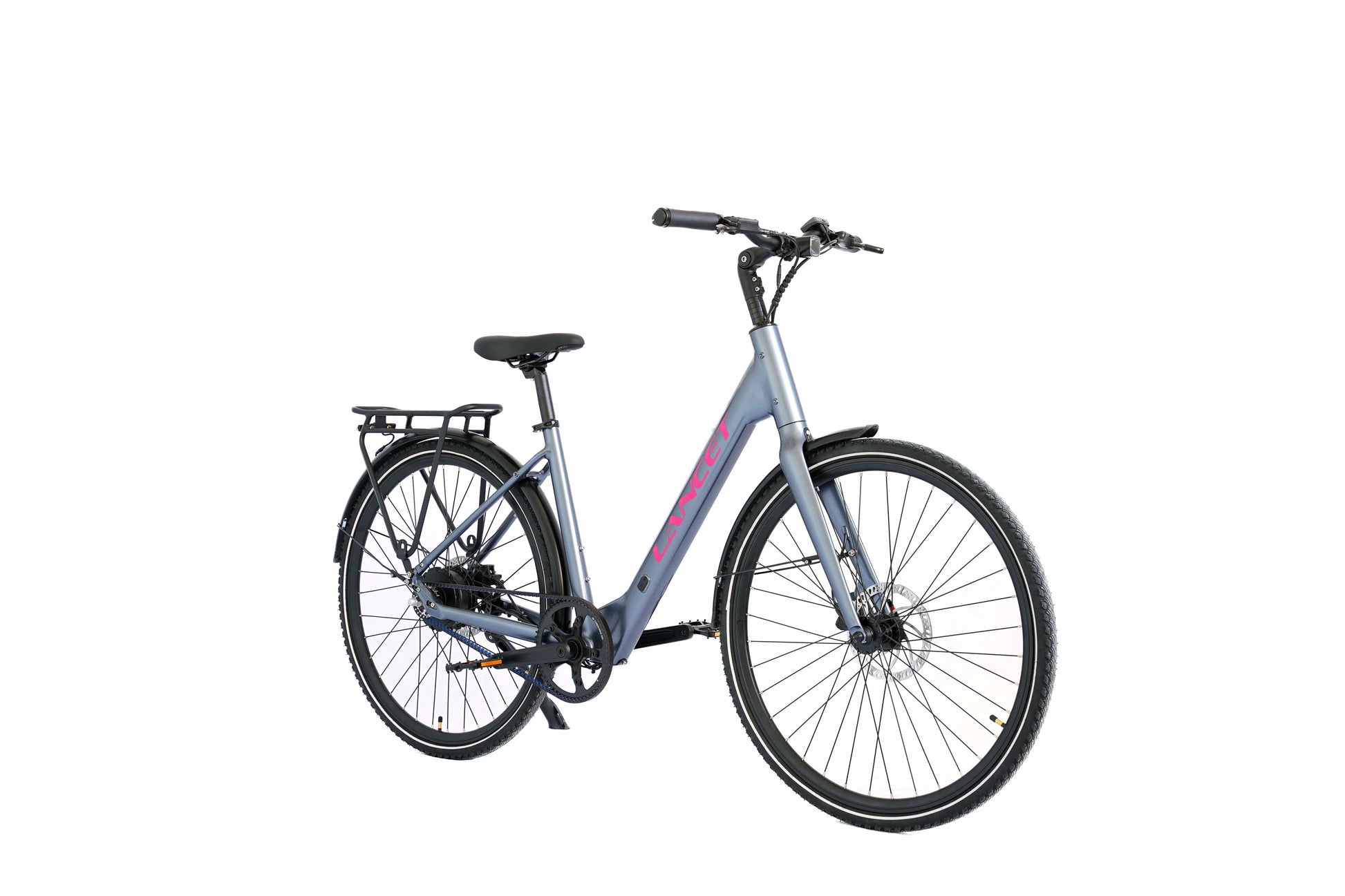

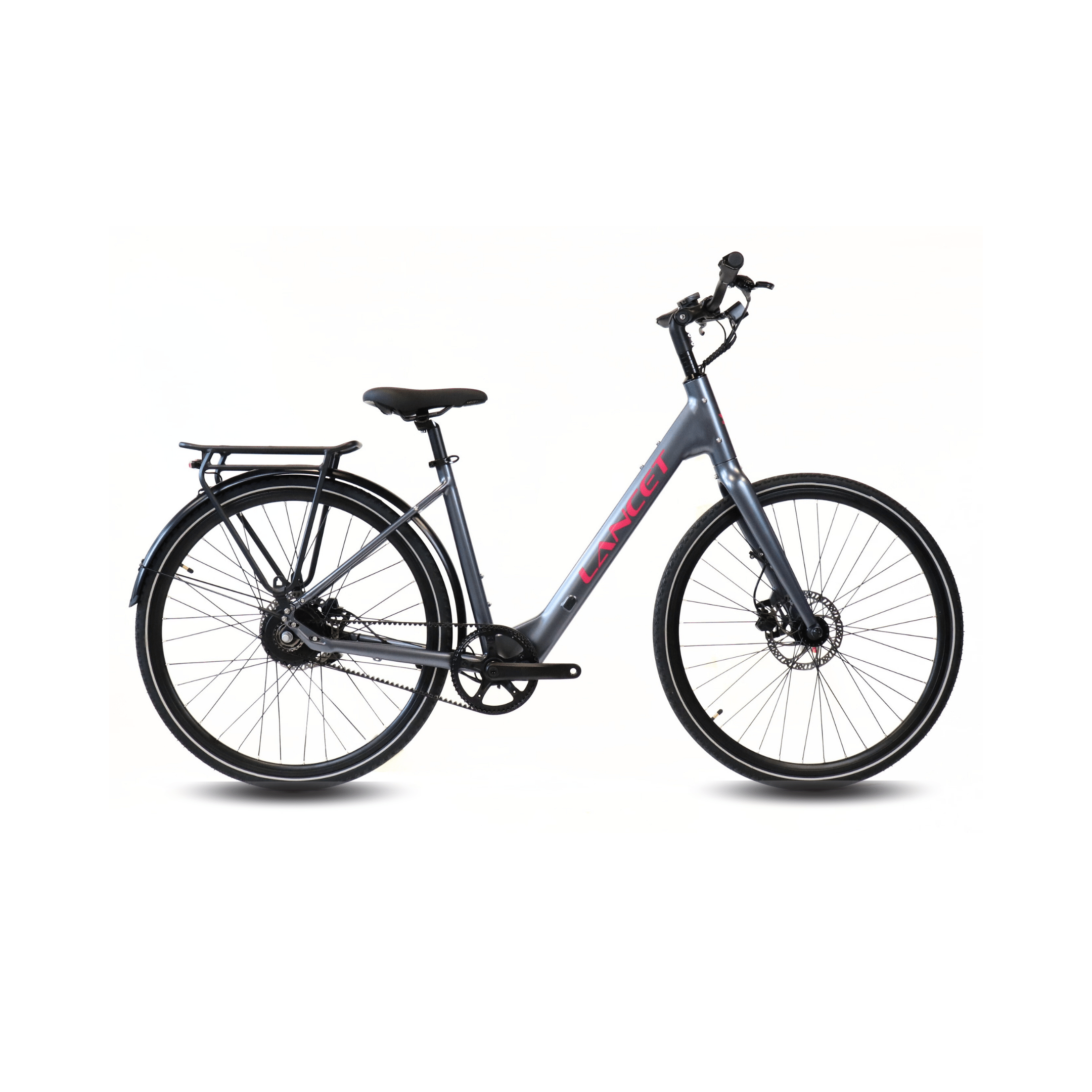

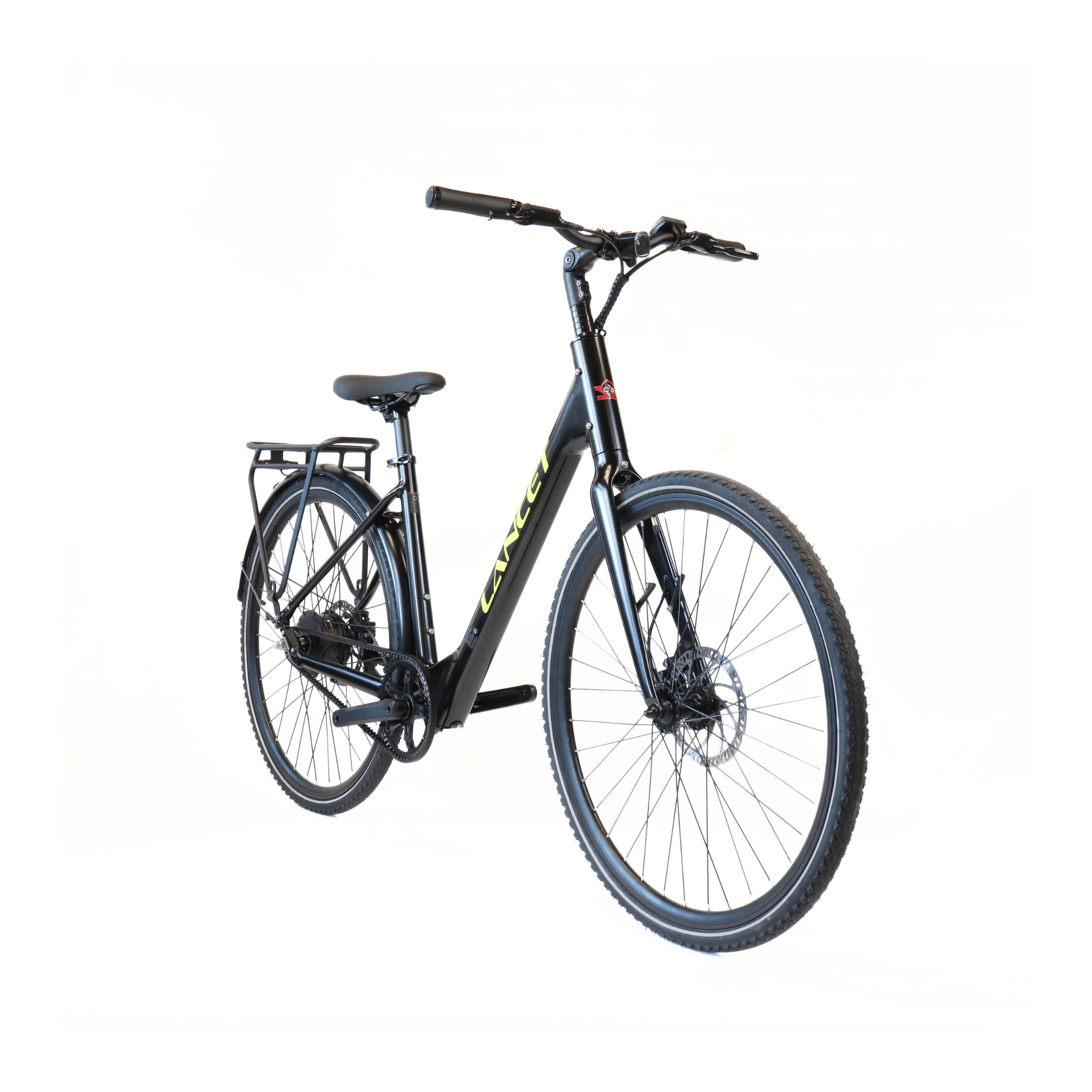

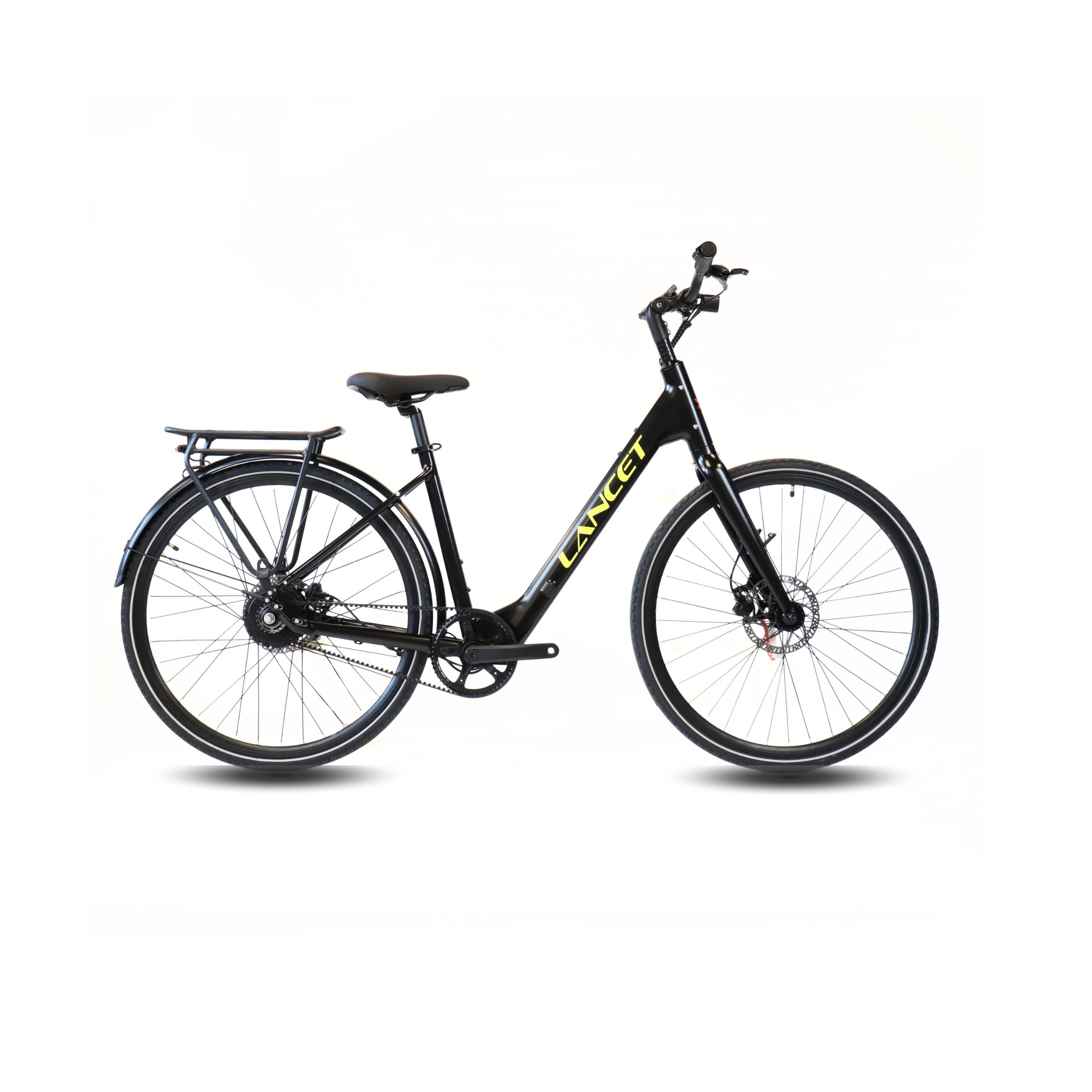

The Ultimate City E-Bike
lancet 2.0
CORE EDITION

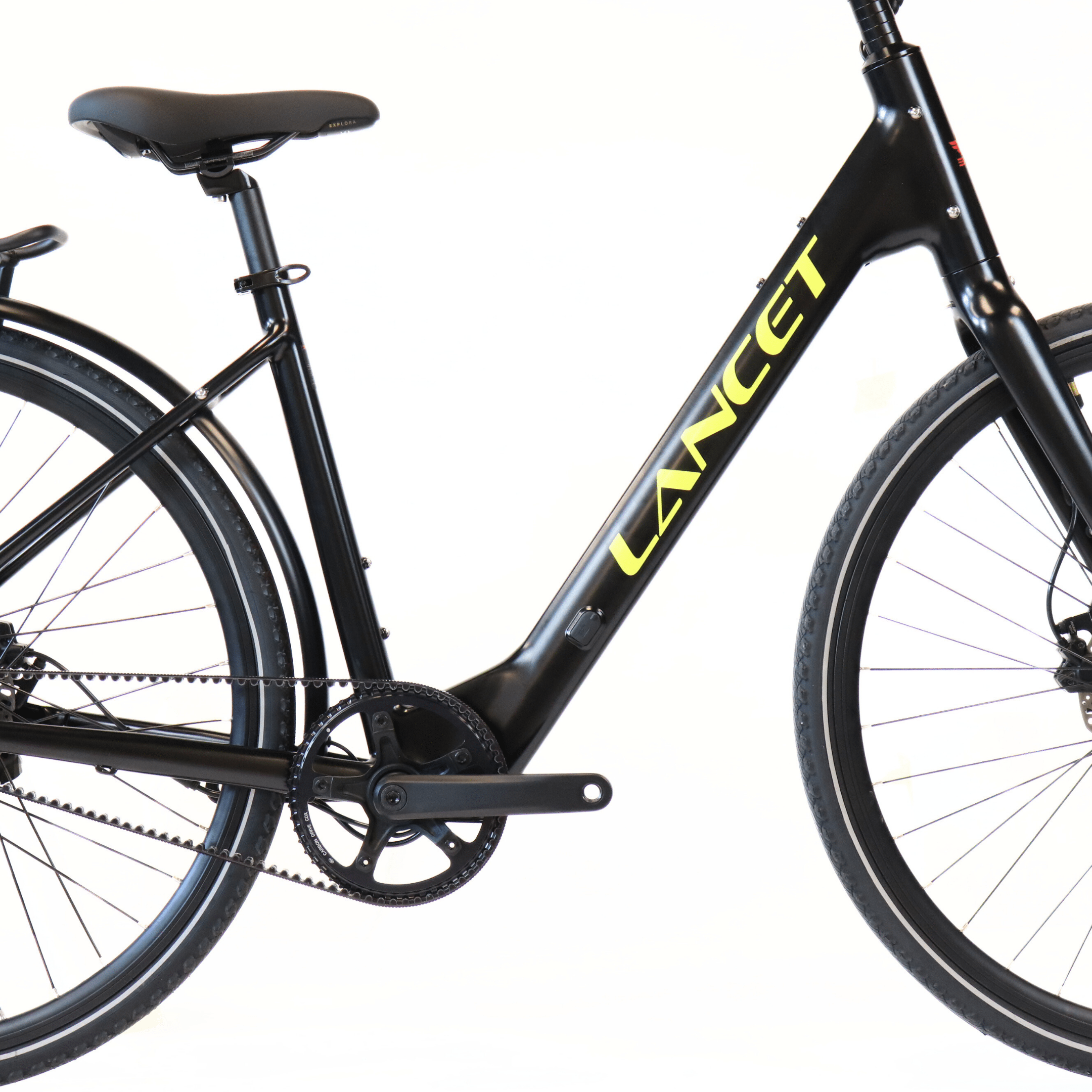

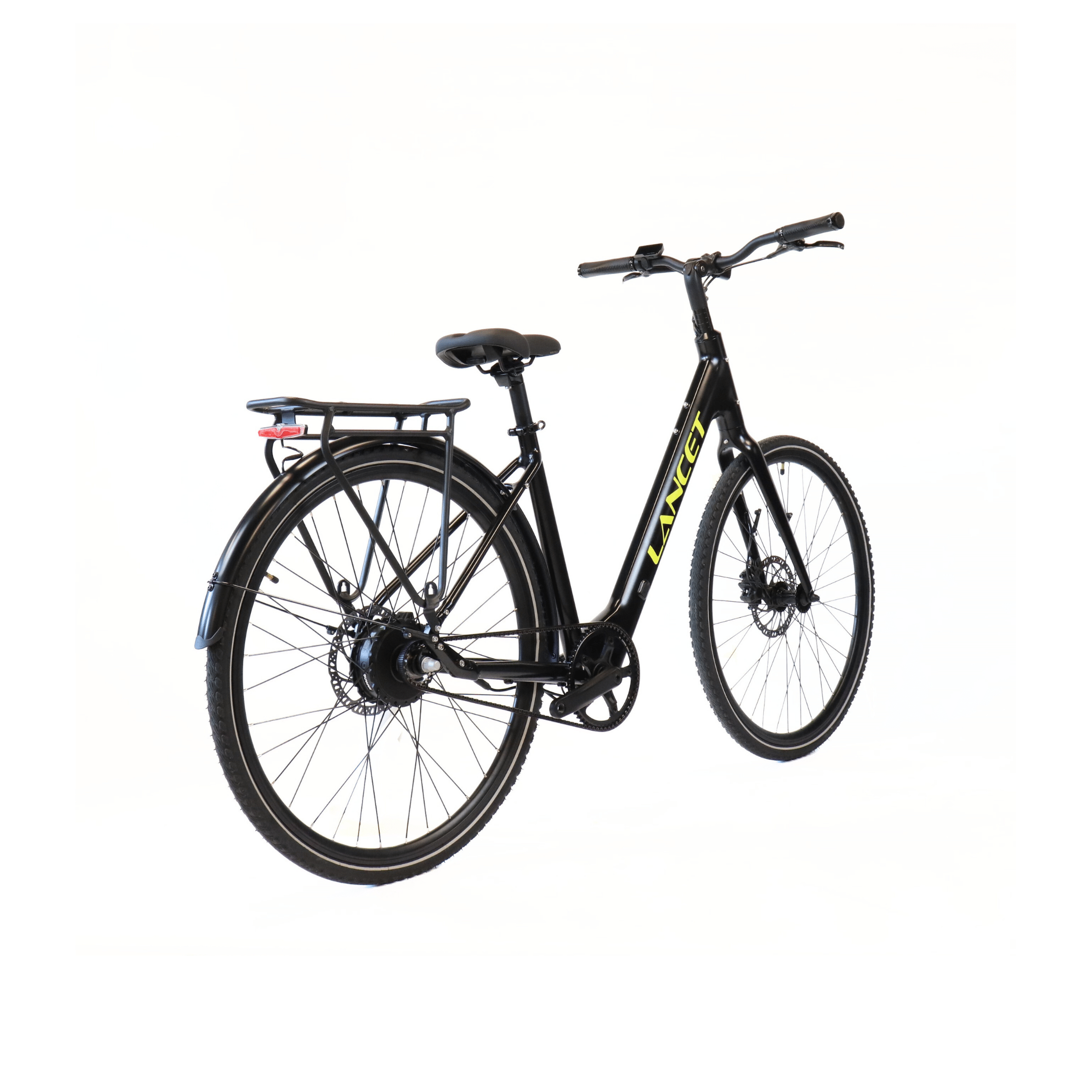

accessible Step-thru frame

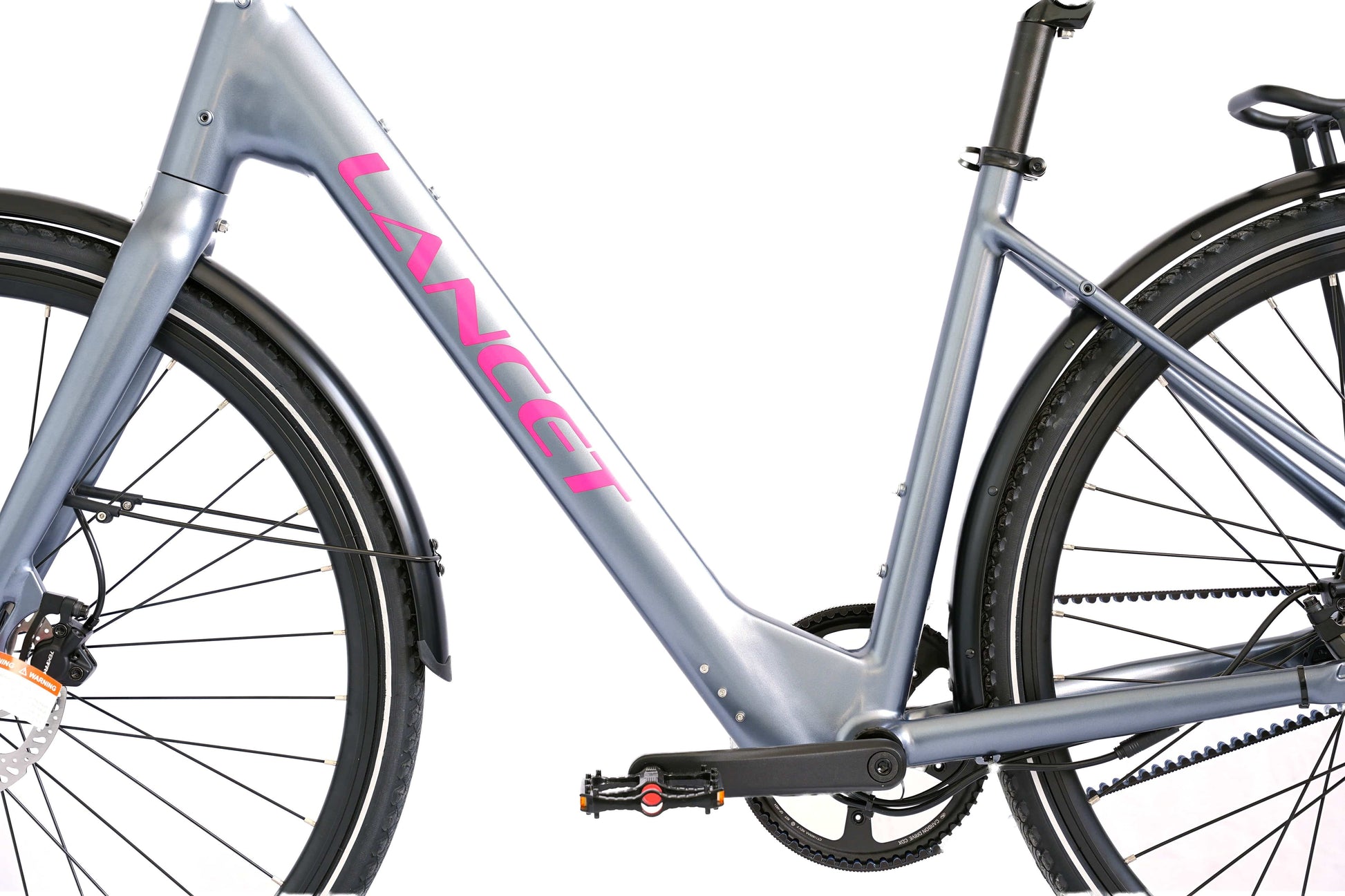

Revised & Ultra-light AL6061-T6 Step-Thru frame.
N.W: 18.9 Kg / 42 lbs.

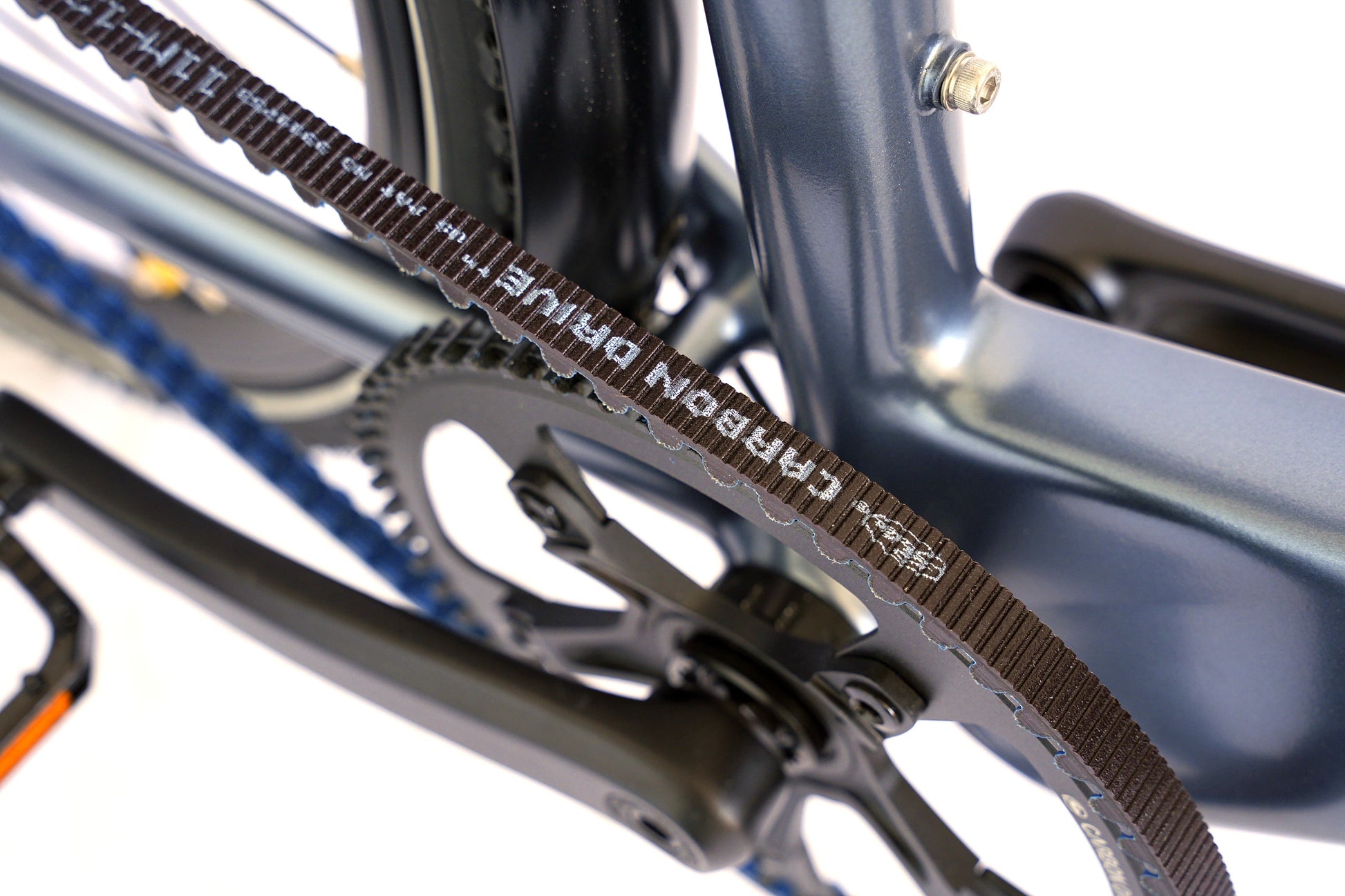

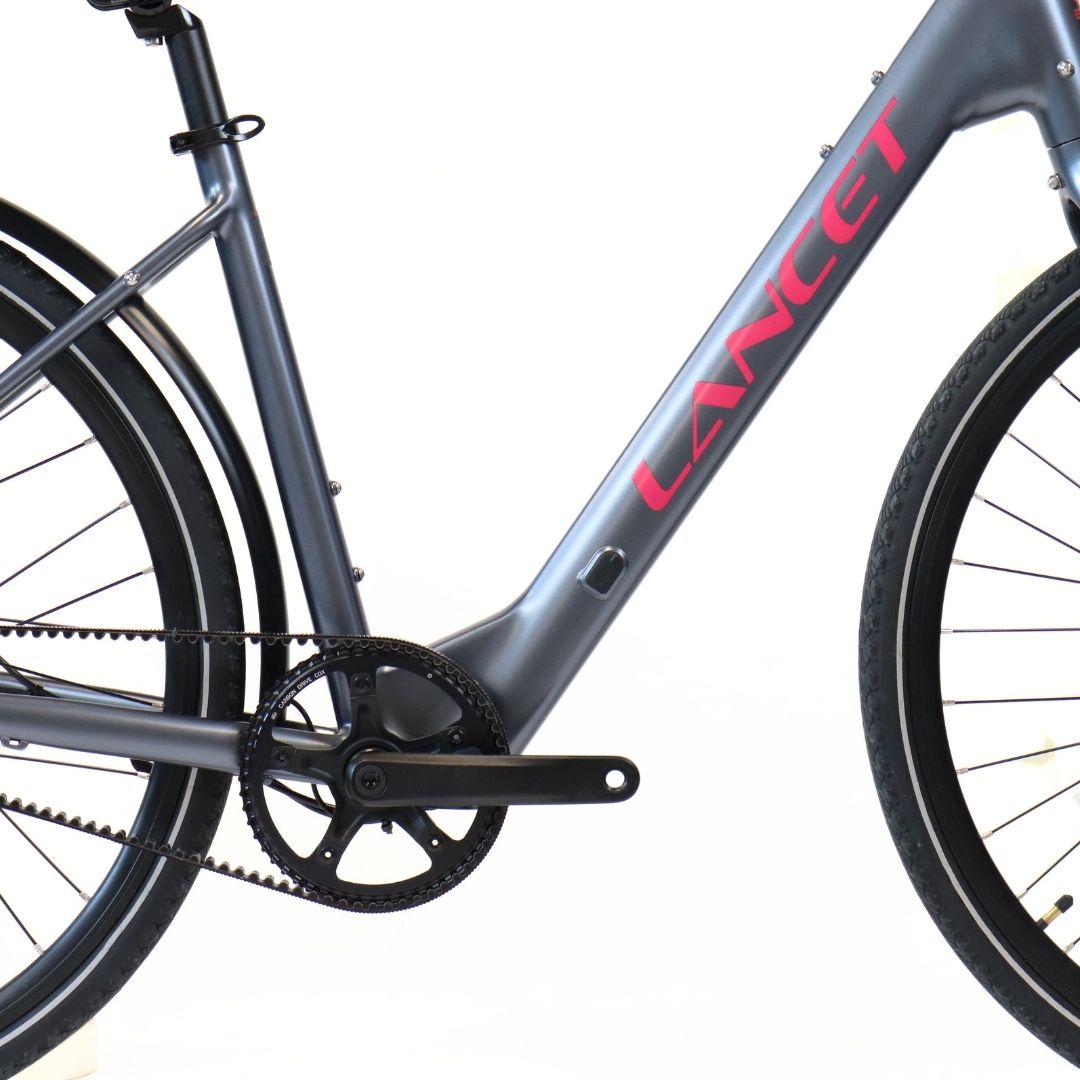

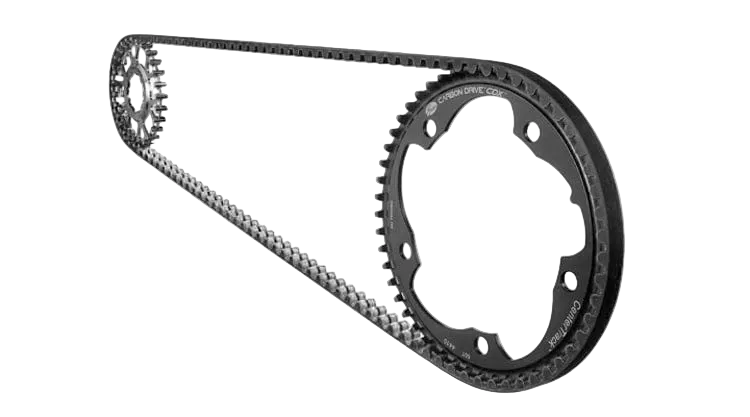

Carbon Belt Drive
1X1 Single-Speed DAYCO Carbon Belt Drive System
Silent & maintenance-free drivetrain.
Advanced Electronics

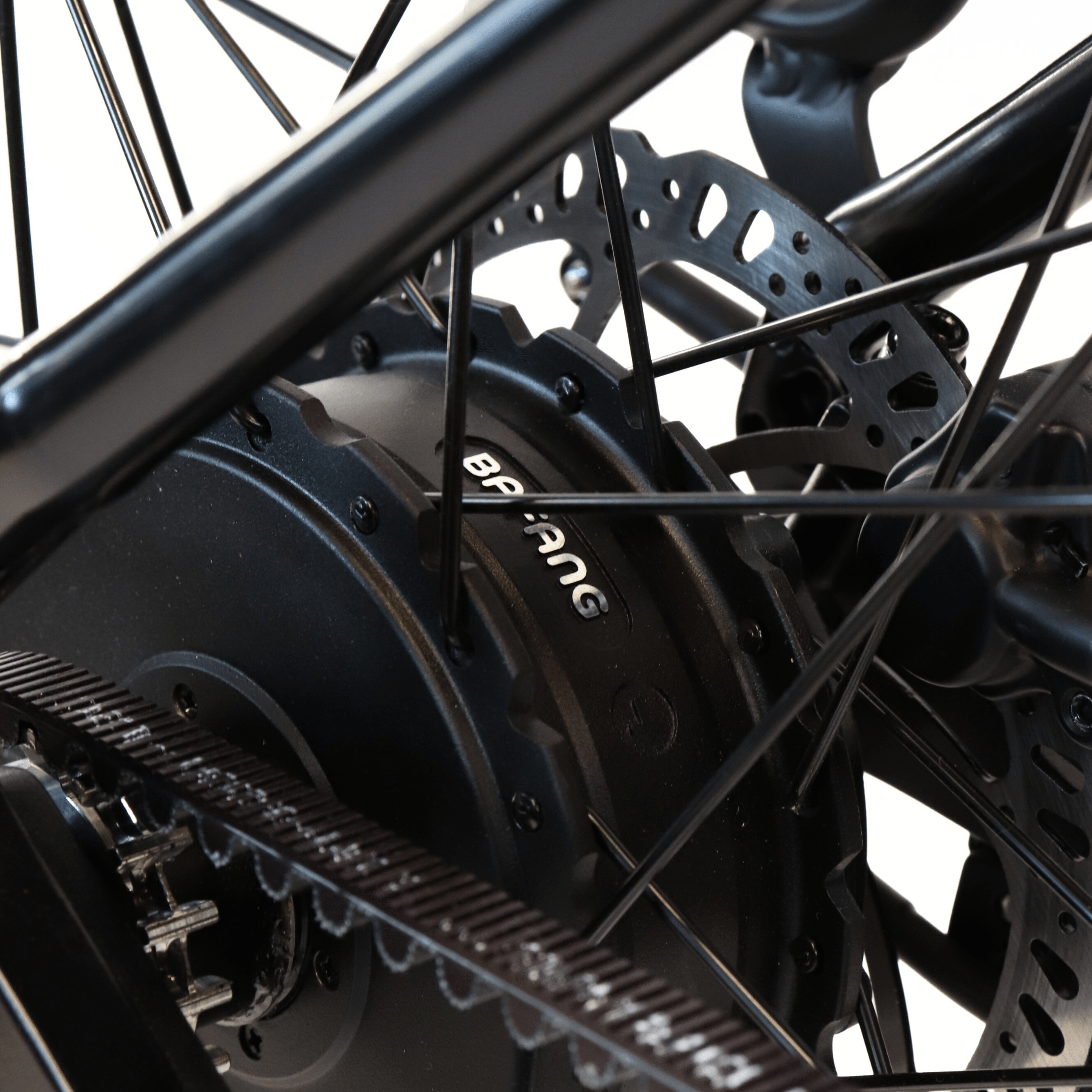

BAFANG Hub Motor + Adjustable Torque Sensing Pedal Assist
350W / 50 N.m (Continuous Output)
ANSI/CAN; UL-2849 Certified
All Ebikecan models & electronics are tested and certified.
UL-2849 / UL-2271
CLASS & BUILD DETAILS
Lancet 2.0 raises the bar for step-thru e-bikes with a lighter, more accessible frame and advanced safety features. The carbon belt drive and hydraulic brakes deliver a quiet, maintenance-free ride, while UL 2849 certification ensures the highest standards of safety and reliability for both riders and public spaces.
- Redesigned step-thru frame for improved accessibility and comfort for a wider range of heights
- Aerospace-grade AL6061-T6 Step-thru frame for strength, reduced weight & handling

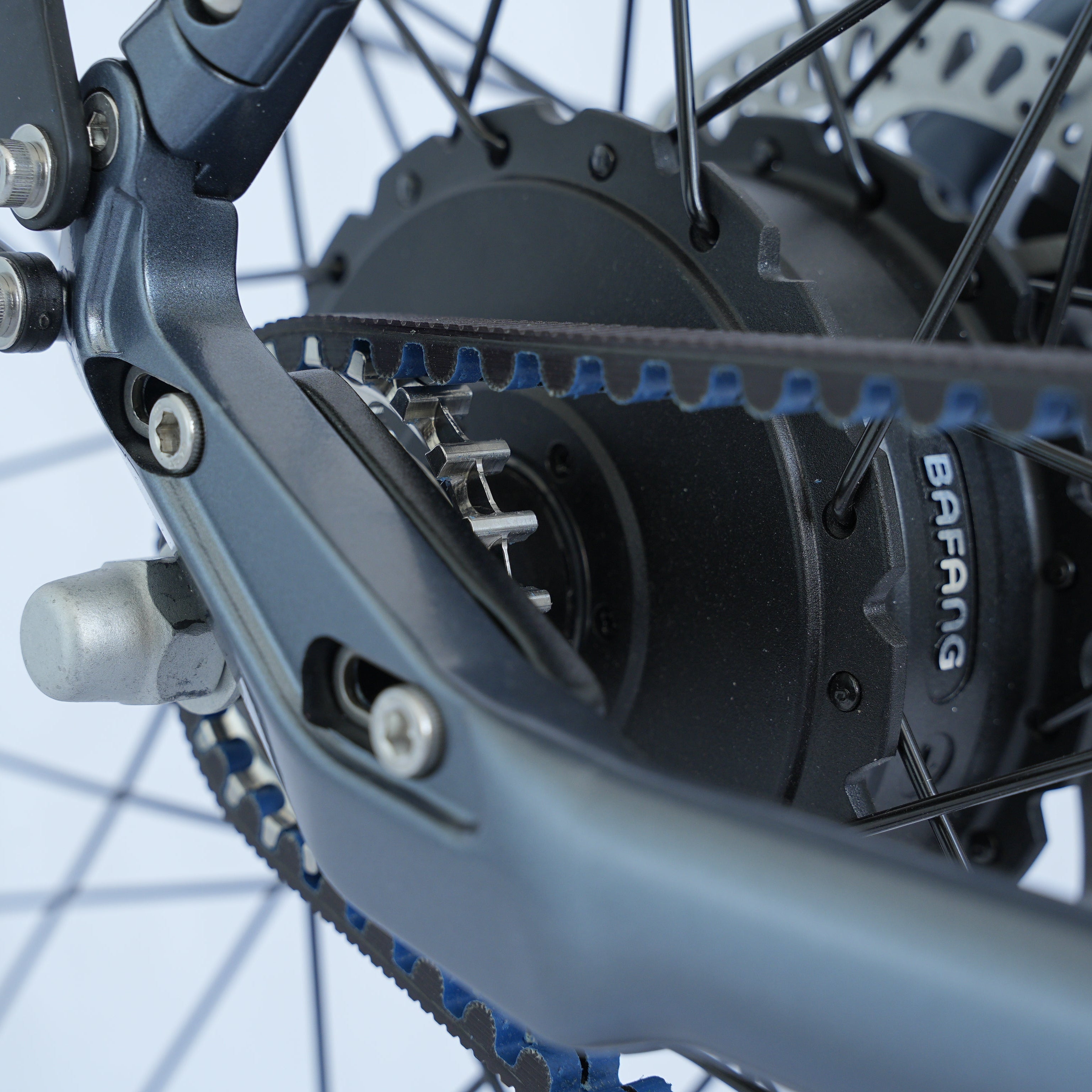

- Dayco single speed Carbon belt drive system for a smooth, quiet, and maintenance-free ride
- 180 mm Tektro hydraulic brakes, with electronic cut-off, for confident stopping power
- Integrated safety features, including Full UL-2849 & UL-2271 certifications, complete with full front and rear LED lighting
- Advanced torque sensing pedal assist system with 5 + 1 fully adjustable assist modes
- Configurable as Class 1 & 2
Performance
- Top Speed: 32 kph (Class 1 & 2)
- Est. Range: 60-90 km
- Charging Time: 2 hr (80%) 3.5 hr (Full Charge)
- Total weight: 18.9 Kg / 42 lbs.
- Payload Capacity: 120 Kg / 265 lbs.
Couldn't load pickup availability
Pickup available at Store location
Usually ready in 24 hoursIf you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Flexible Financing
Pay over time with flexible payment solutions via Klarna & PayPlan by RBC
fast delivery
Get your e-bike delivered in just 2–6 days.
2 year warranty
Enjoy peace of mind with a full 2-year warranty.
30-day return
Changed your mind? Return it within 14 days, no hassle.
Detailed Specifications
Frame and Main Components
Frame: AL alloy 6061-T6
Front Fork: AL alloy 6061-T6

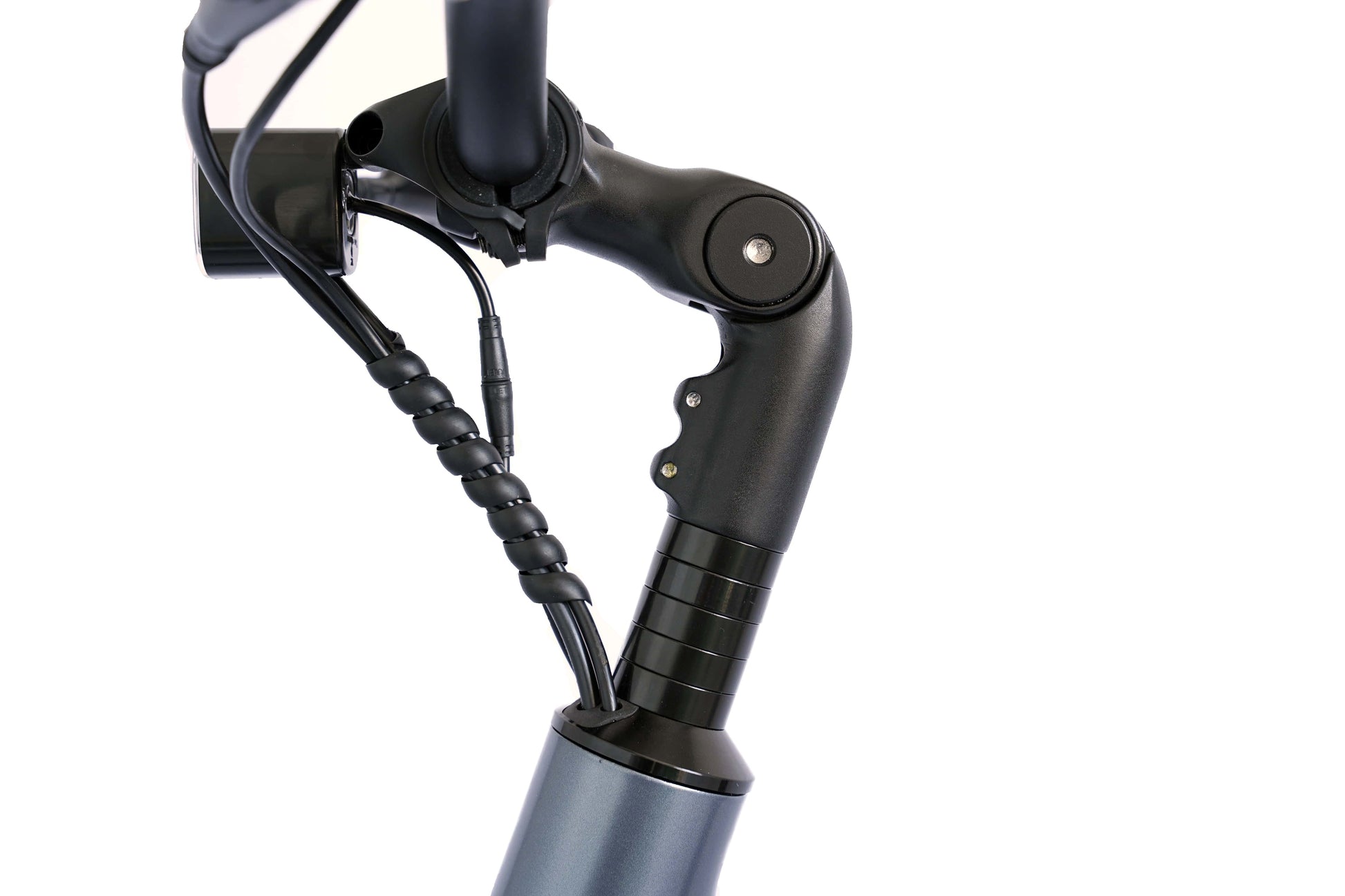

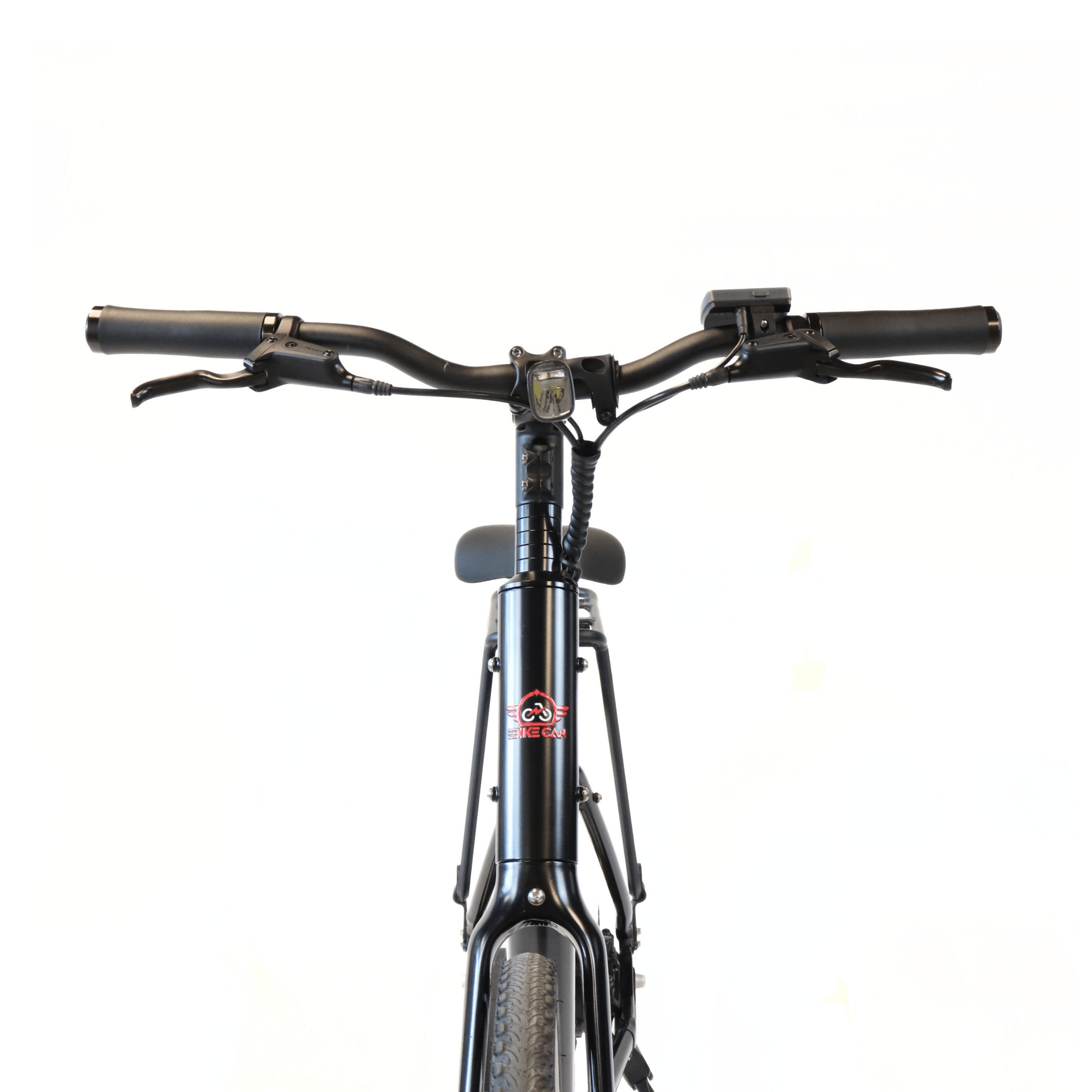

Stem: PROMAX, MA-596 adjustable
Handlebar: PROMAX HB-T305
Wheelset: P19D 700C Double layer aluminum alloy, front wheel 13G 36 holes, rear wheel 13G 36 hole
Tires: Innova, IA-2066 700*40C, with reflective line

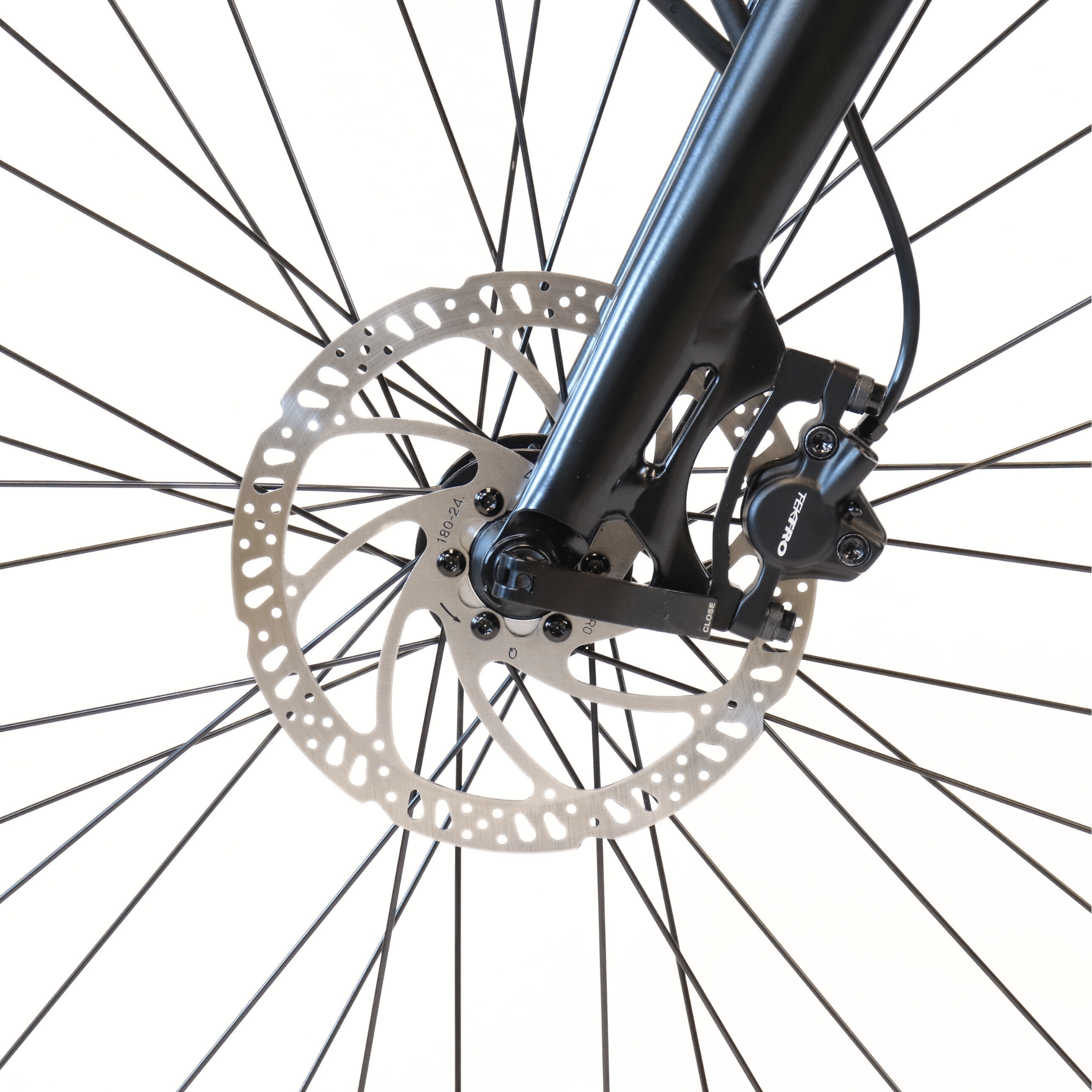

F/R Brakes: TEKTRO HD-M275 , 180mm Hydraulic Disc

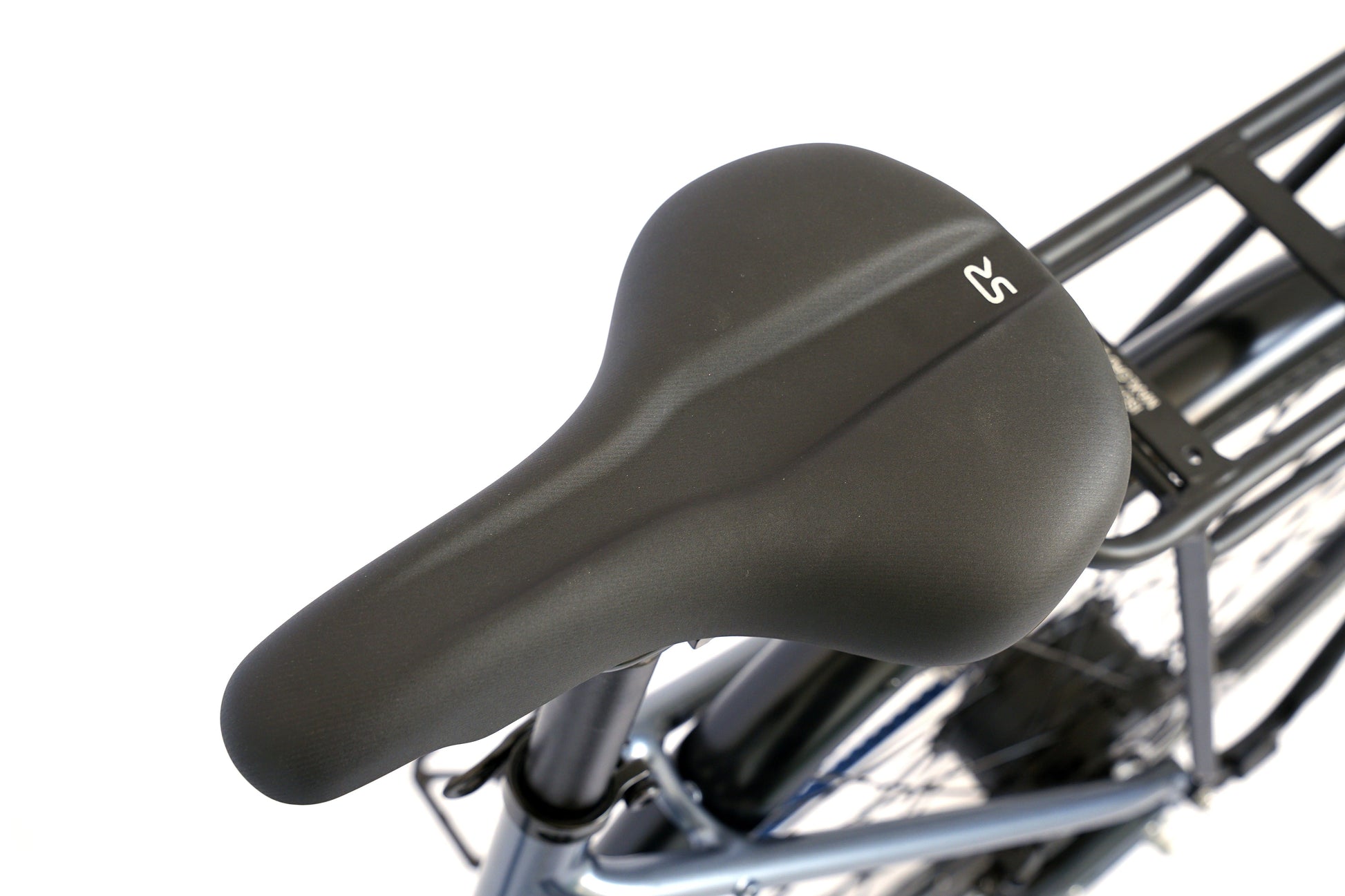

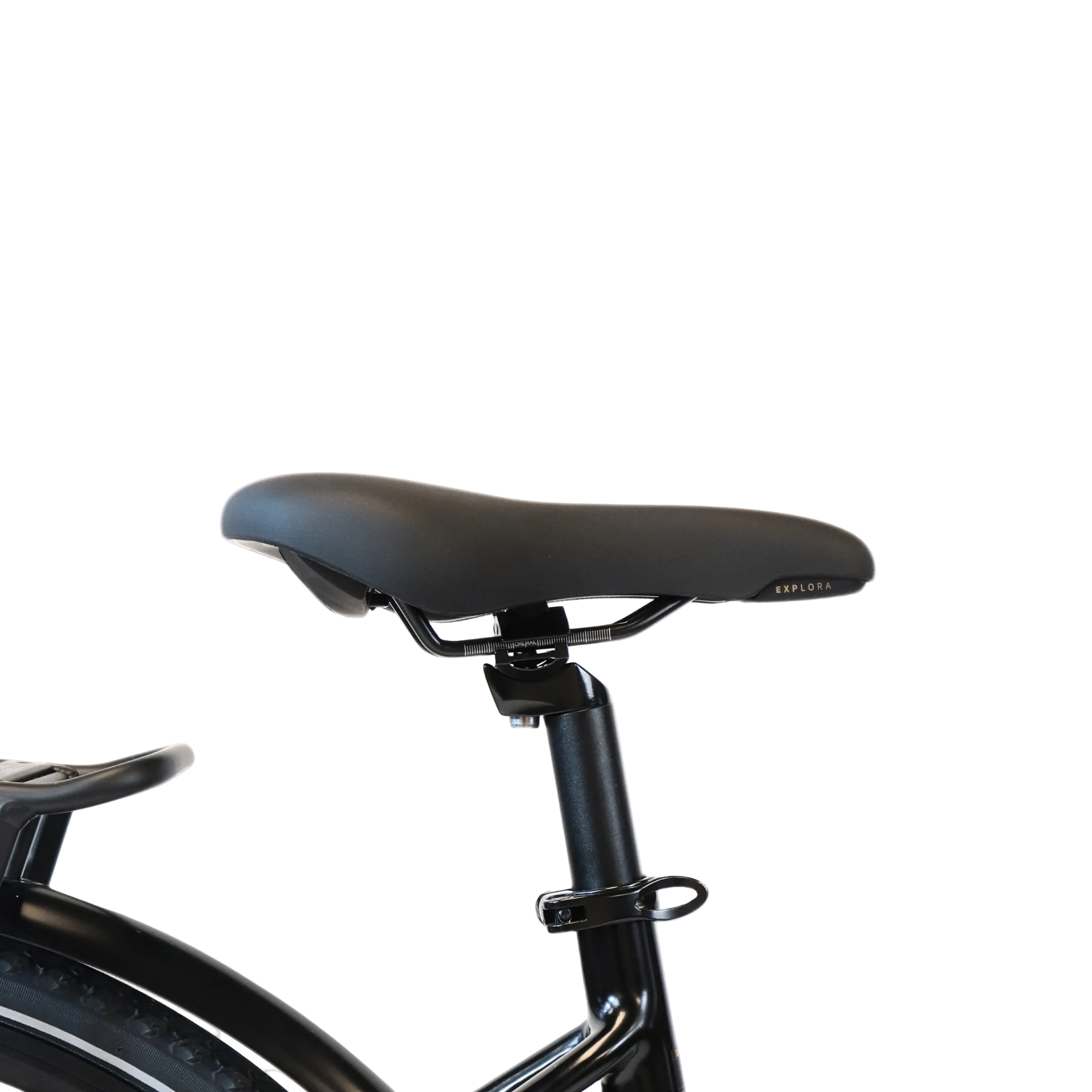

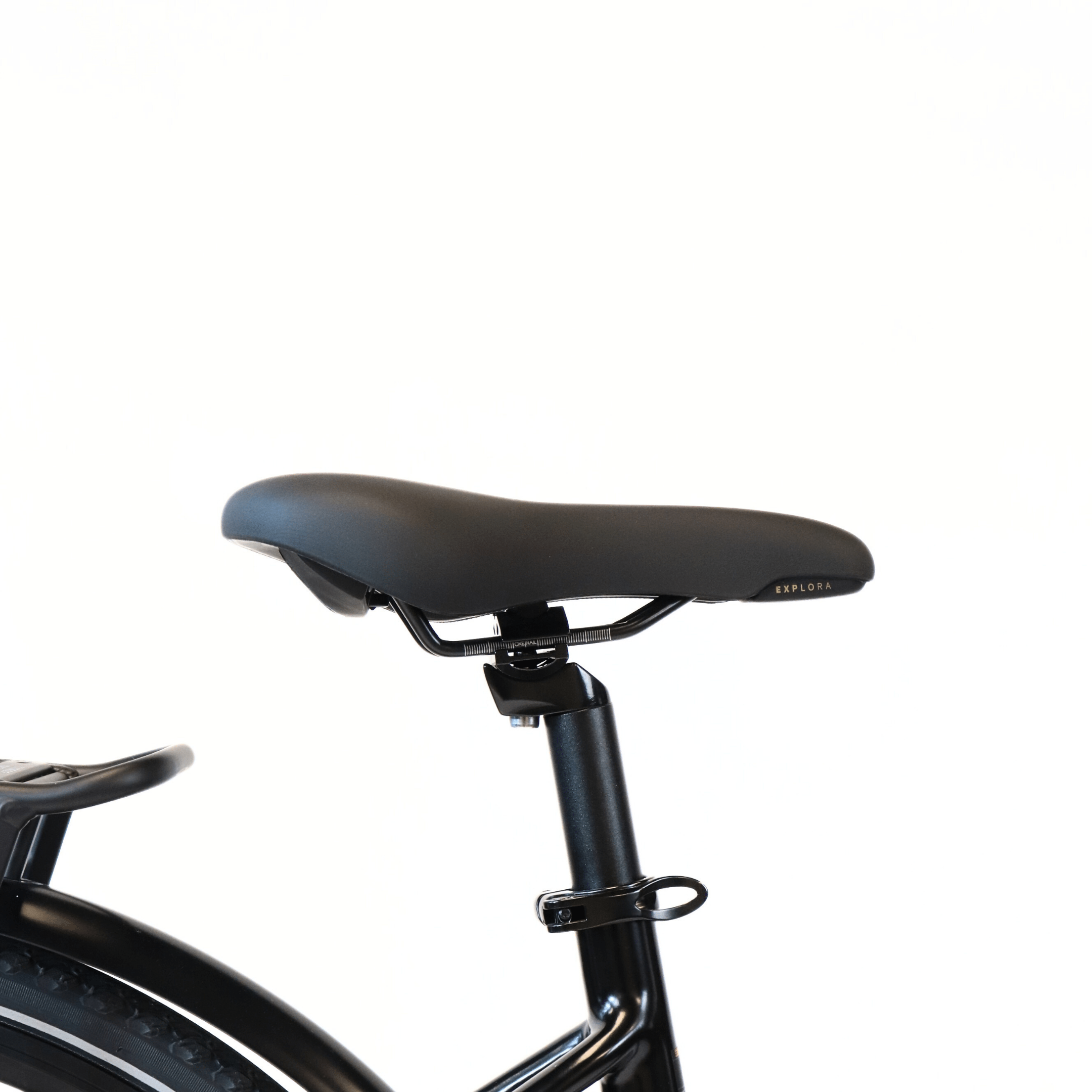

Saddle: SR A069H Black leather
Electrical System

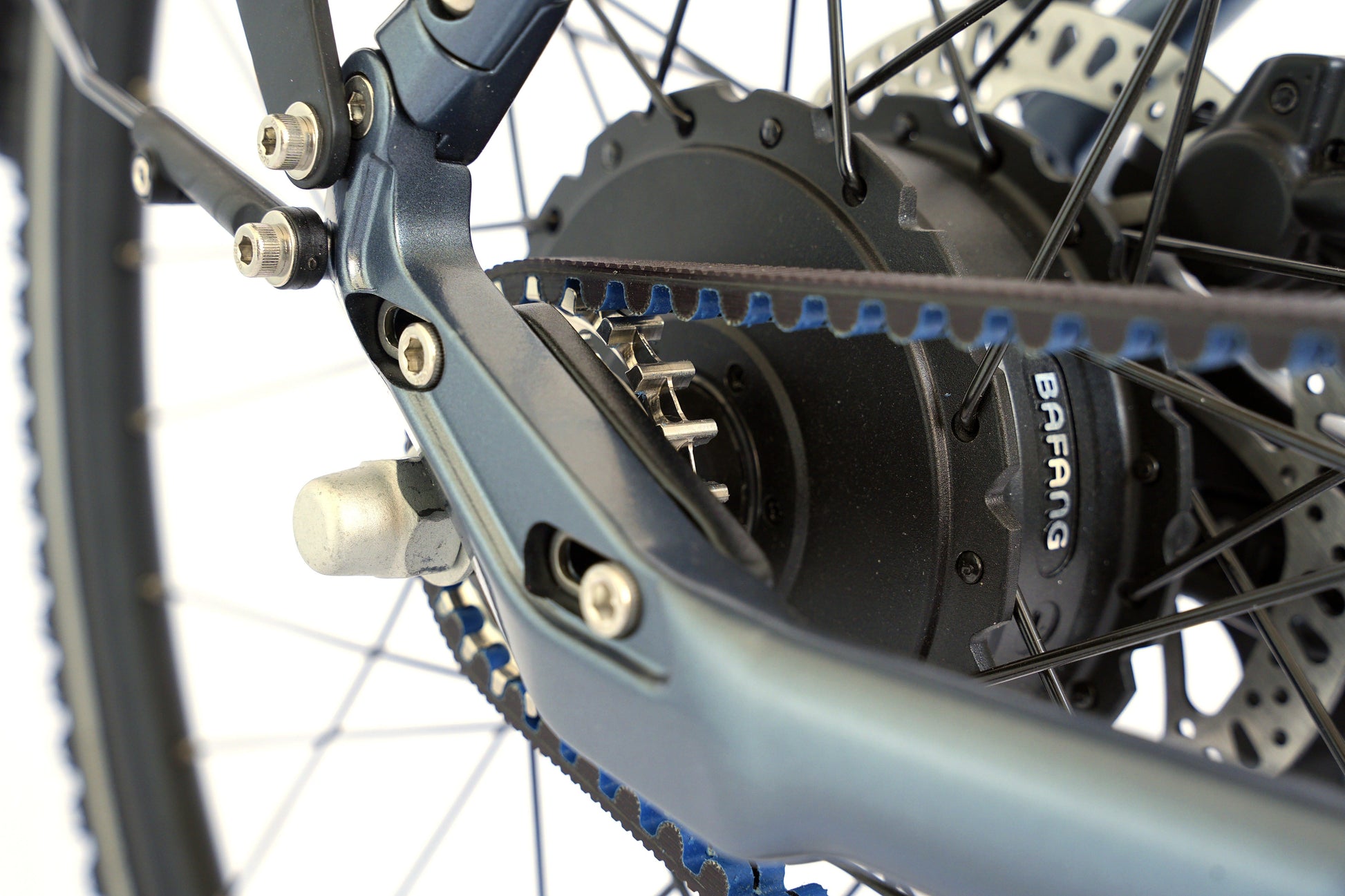

Motor: BAFANG RM G0100 ; 350W, 50 N.M Torque
Battery: LG, 252 Wh (UL Certified)
Controller: JYT Sine Wave Controller – 36V 15A

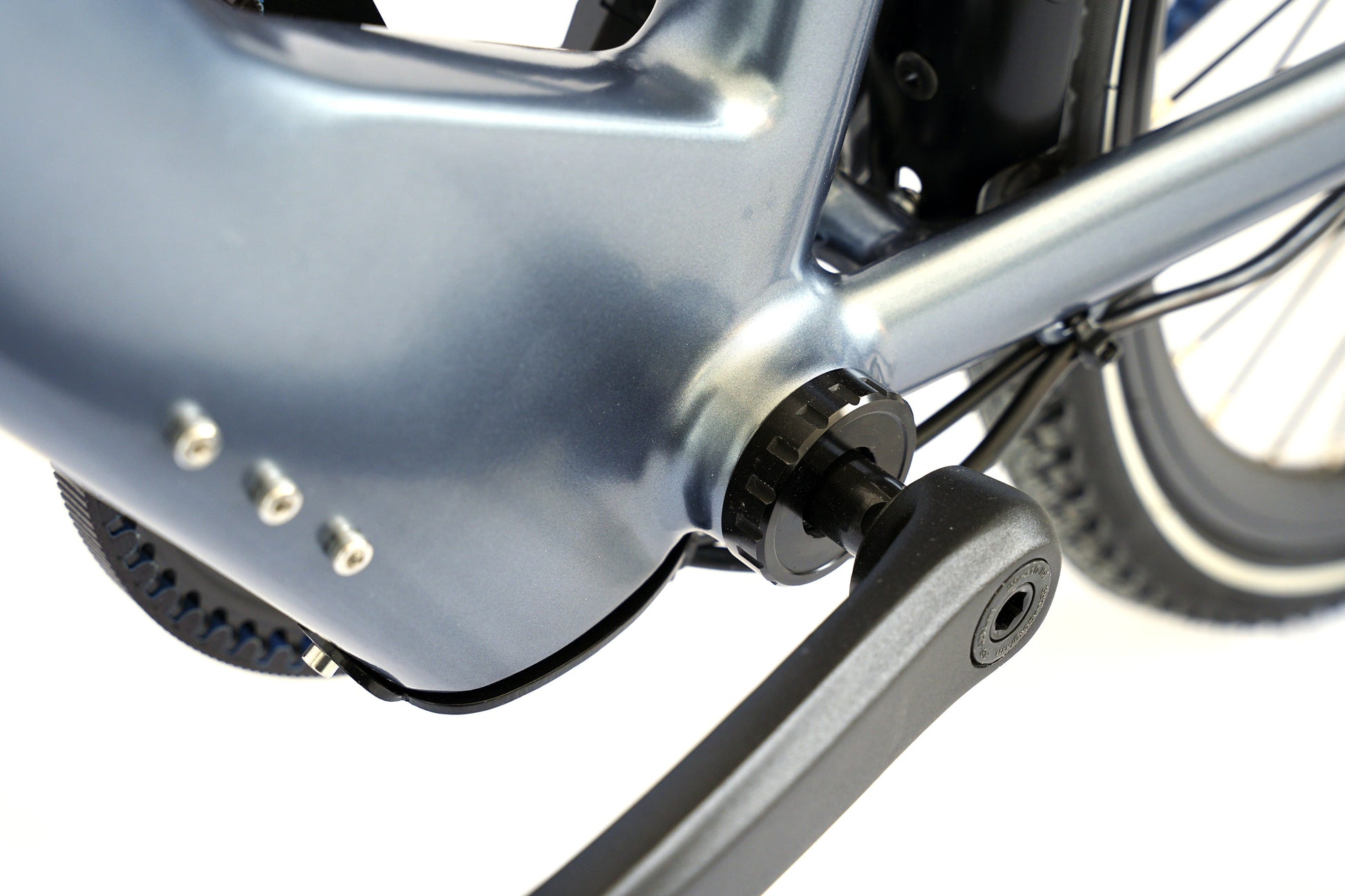

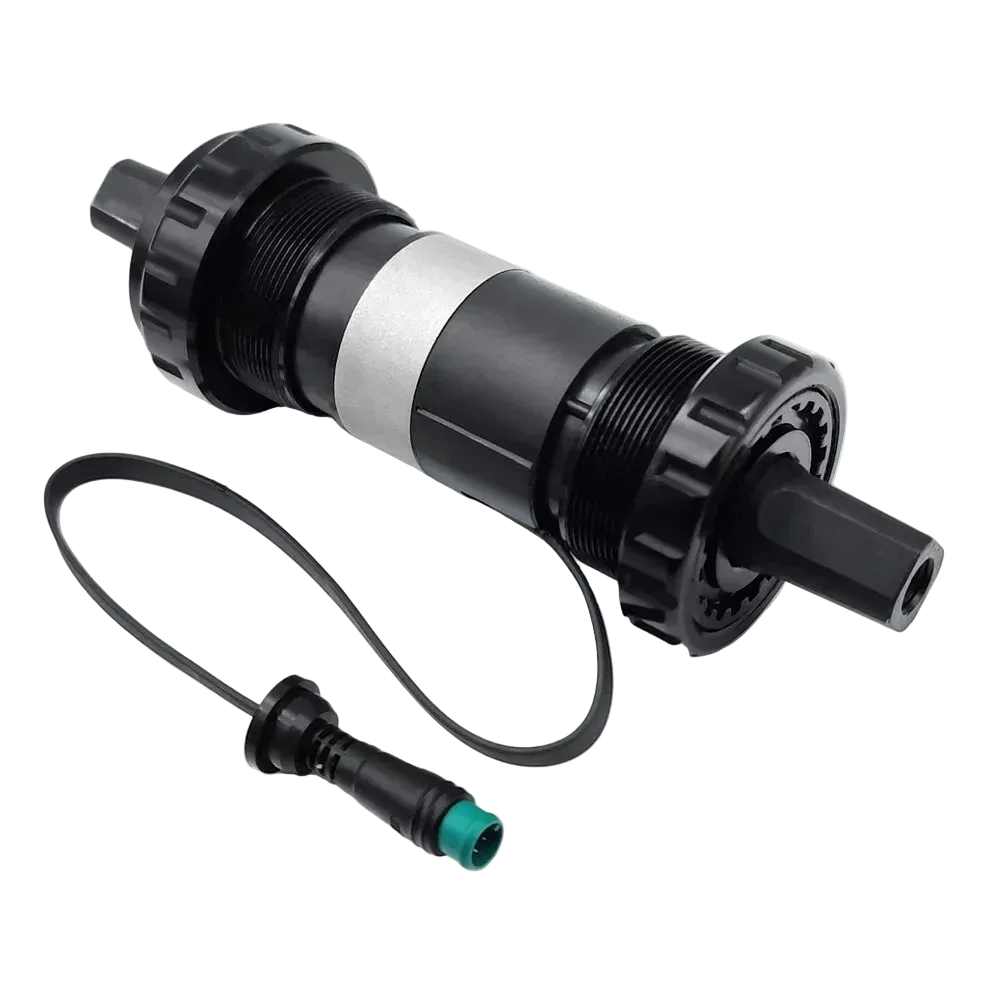

PAS: BBTS1PSD H torque sensor (LDS)
Throttle:

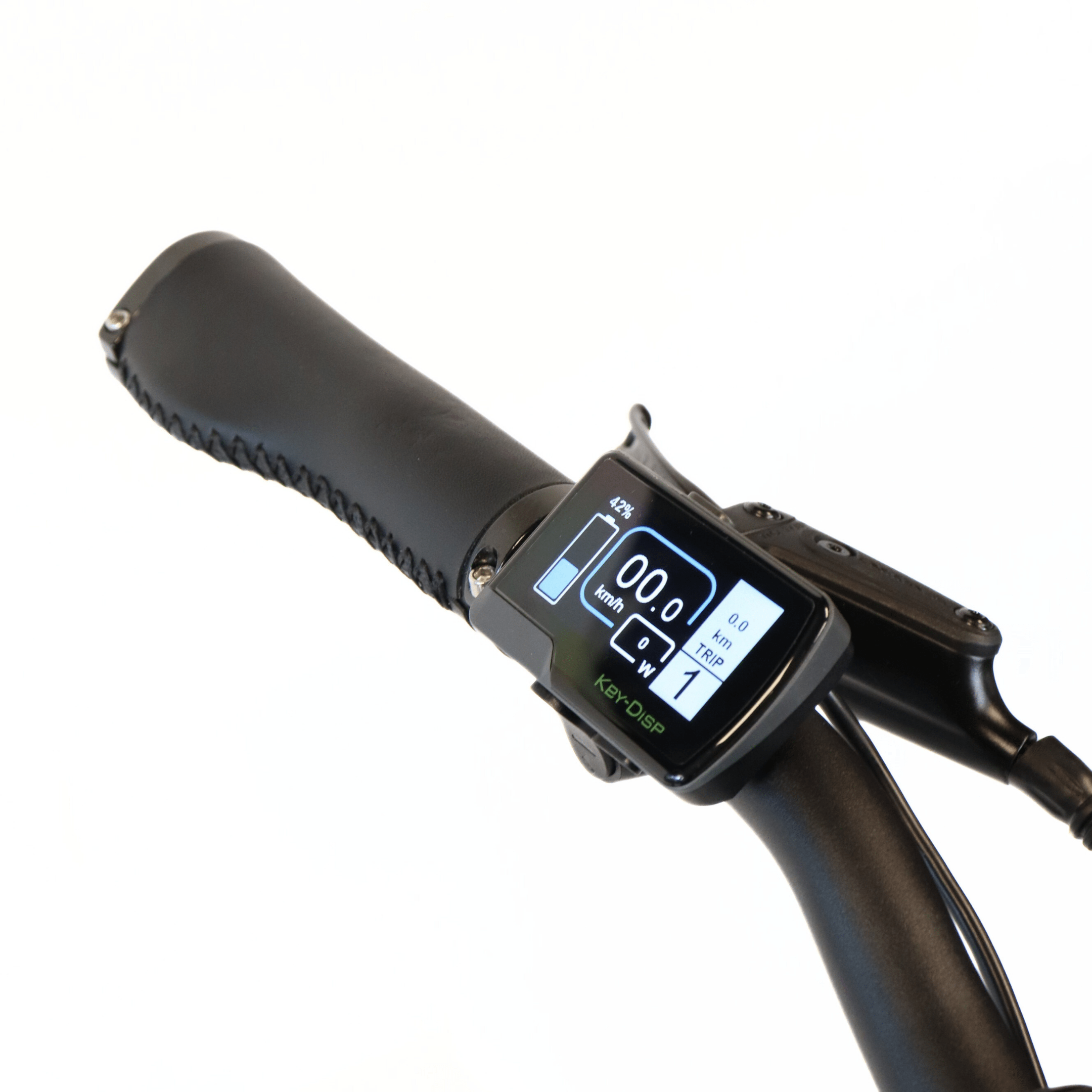

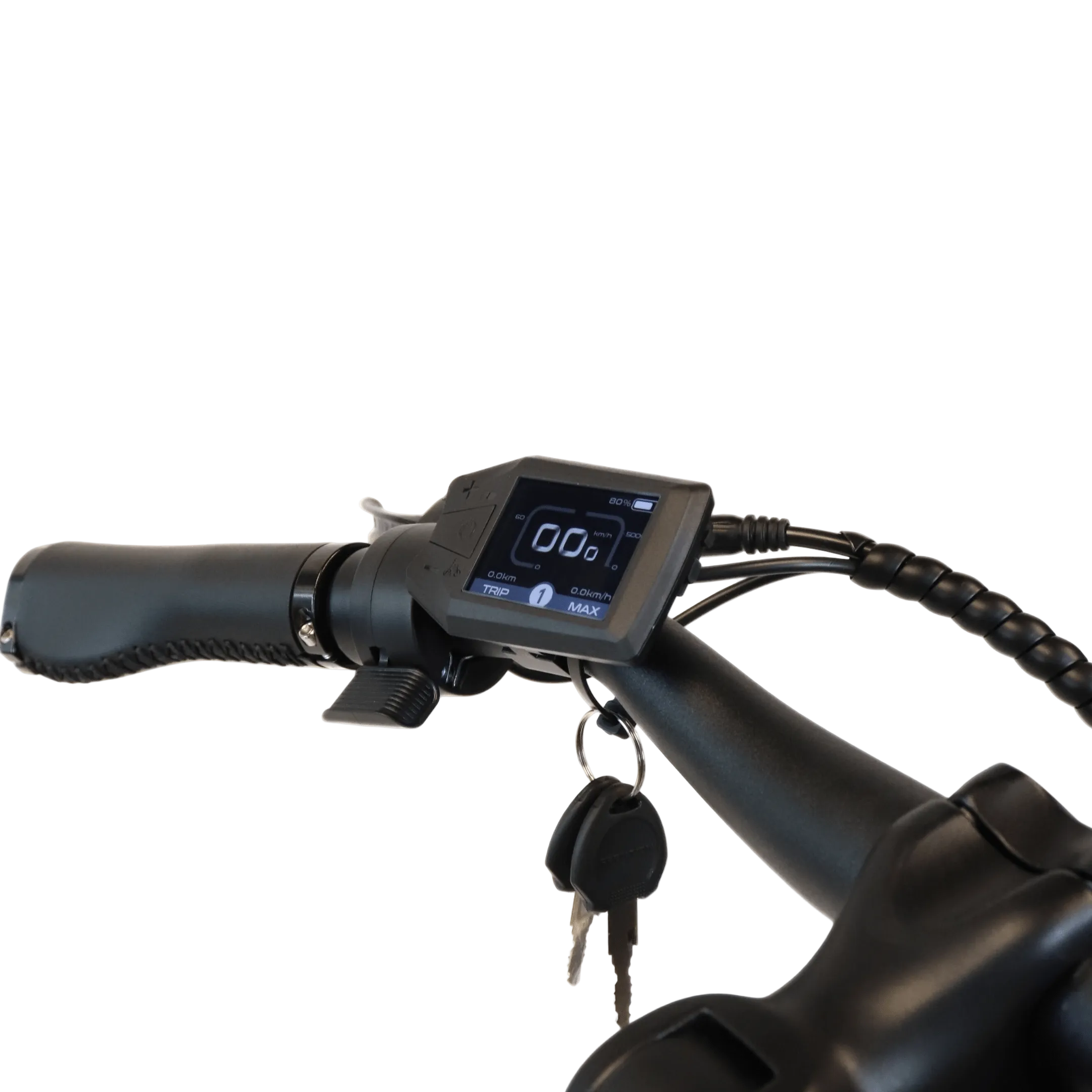

Display: KD386 LCD Display, K-disp

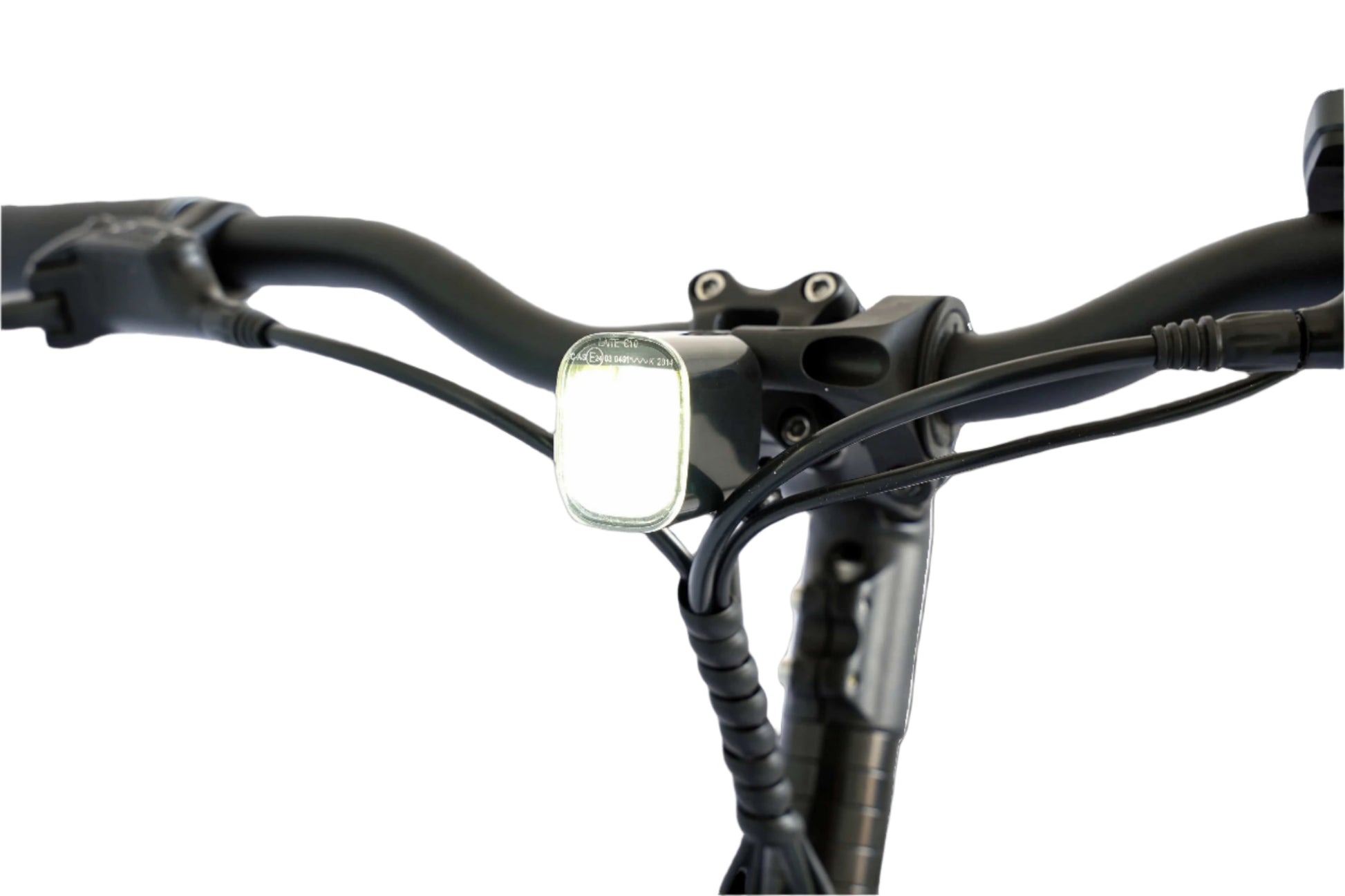

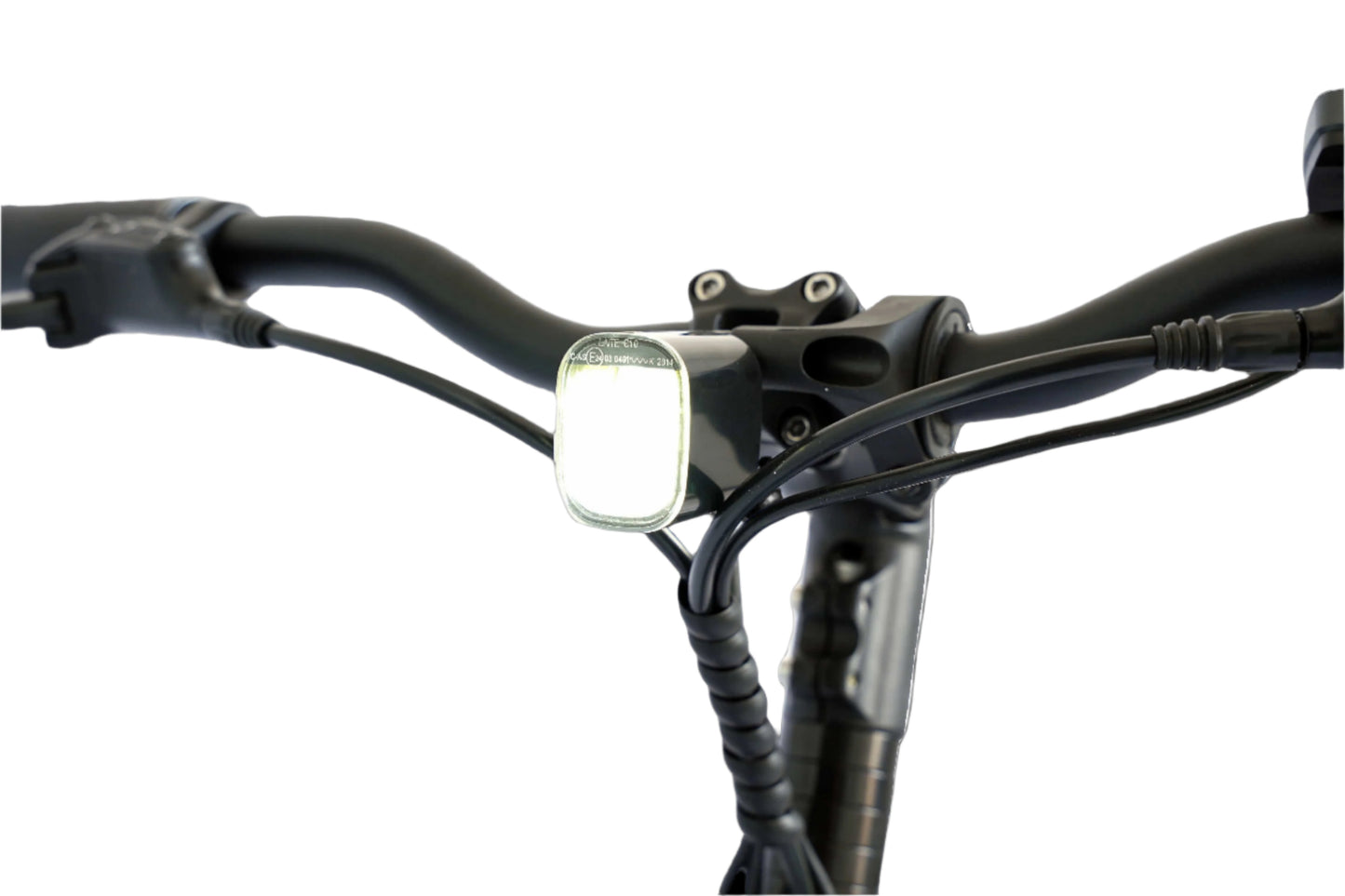

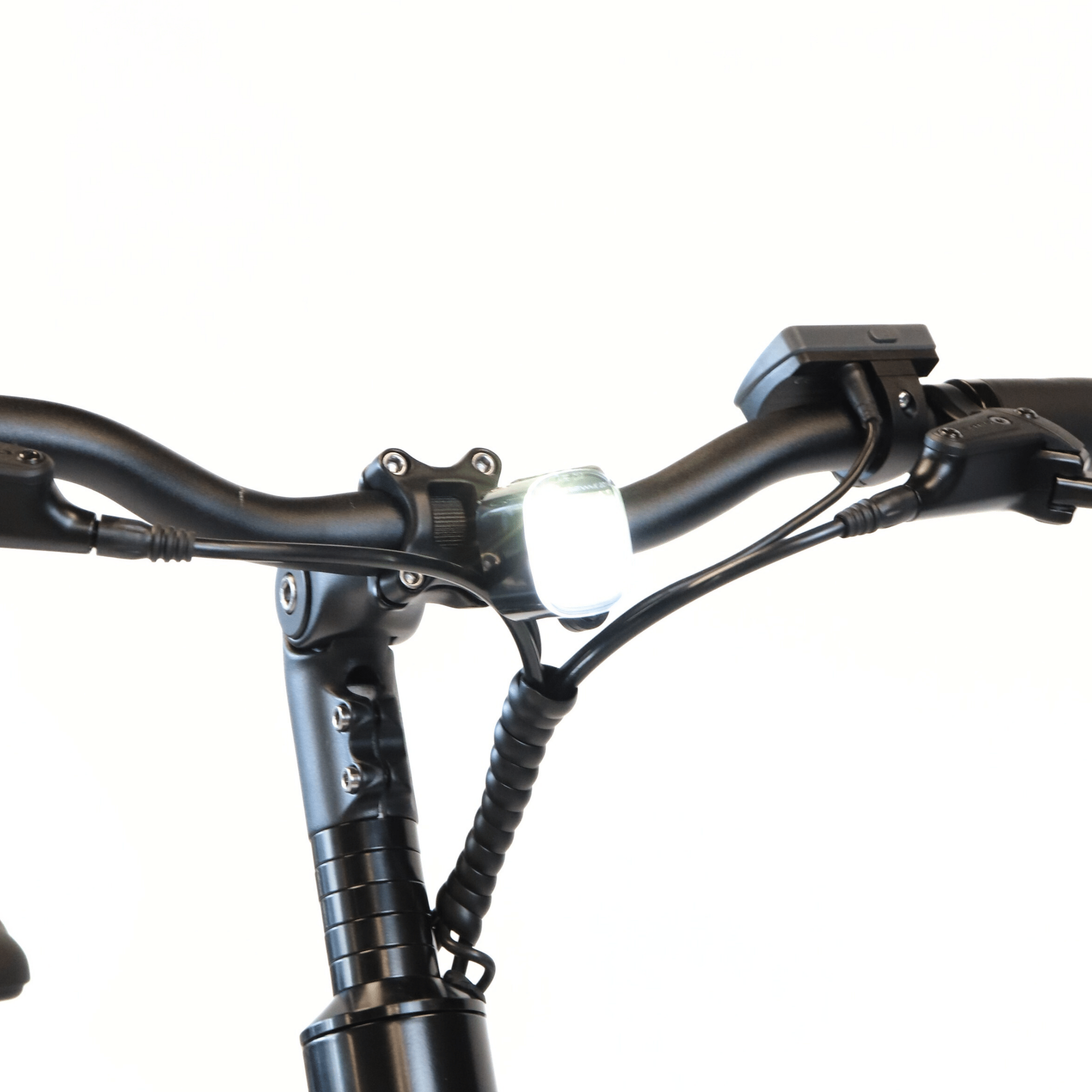

Front Light: SATE-LITE C10 LED

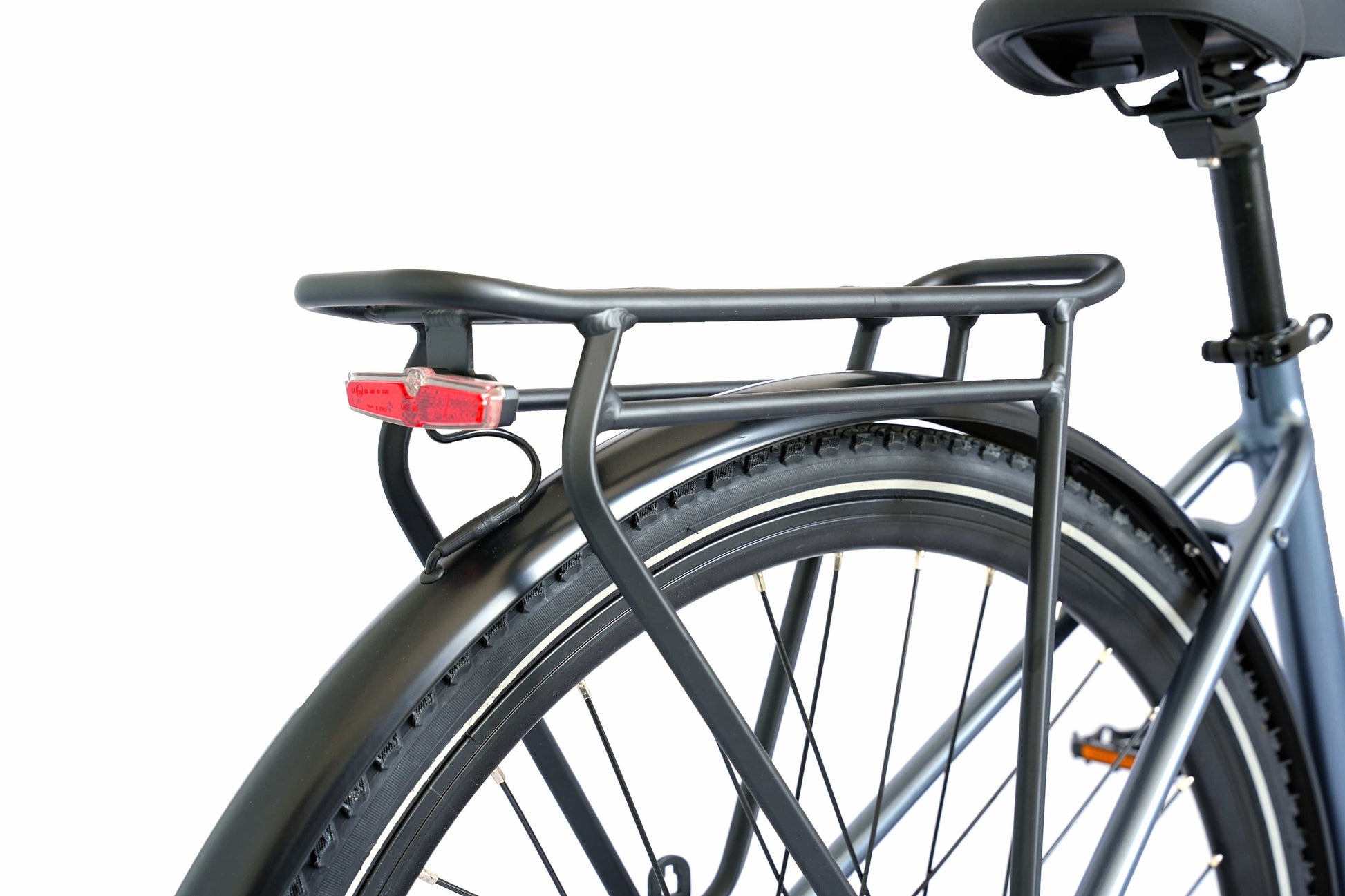

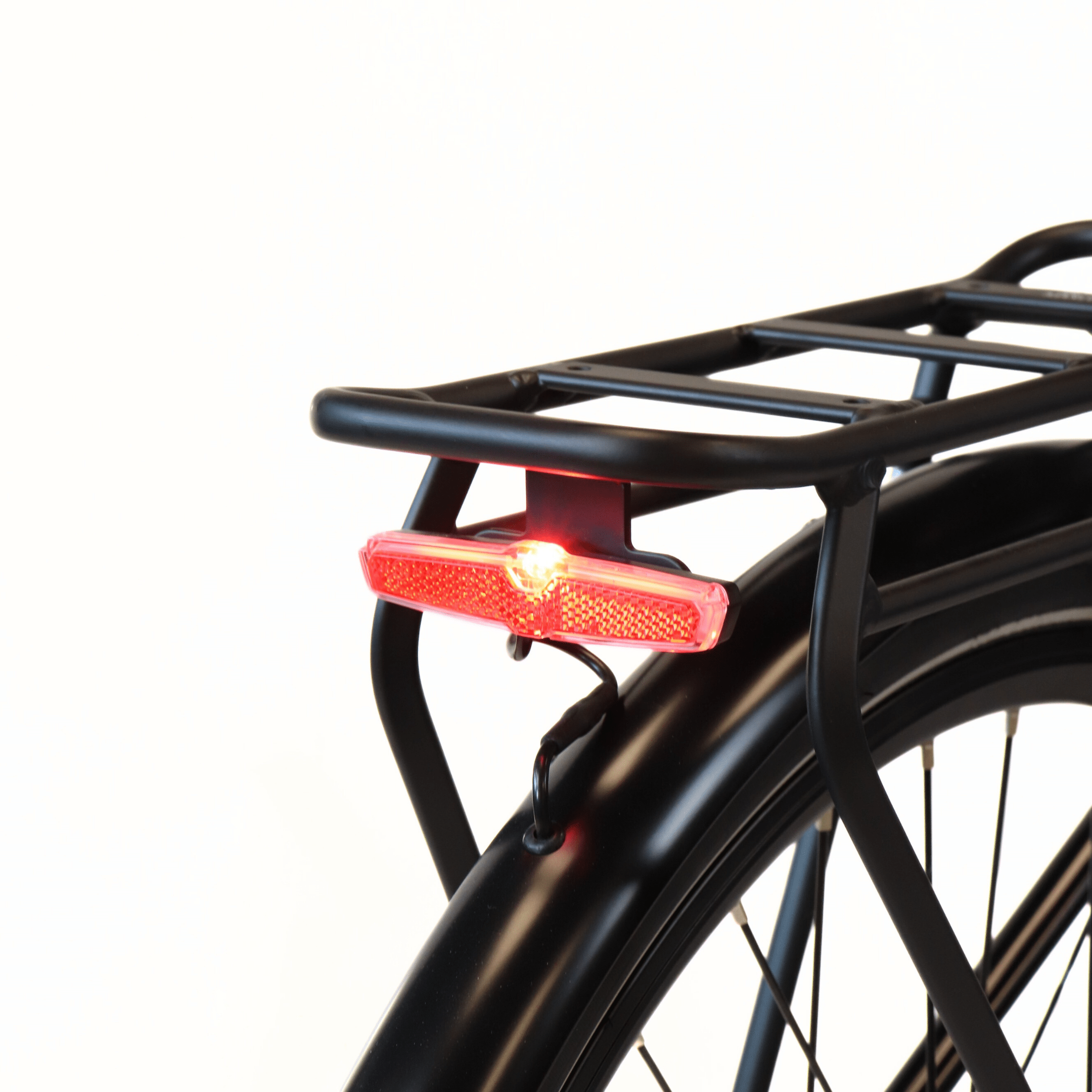

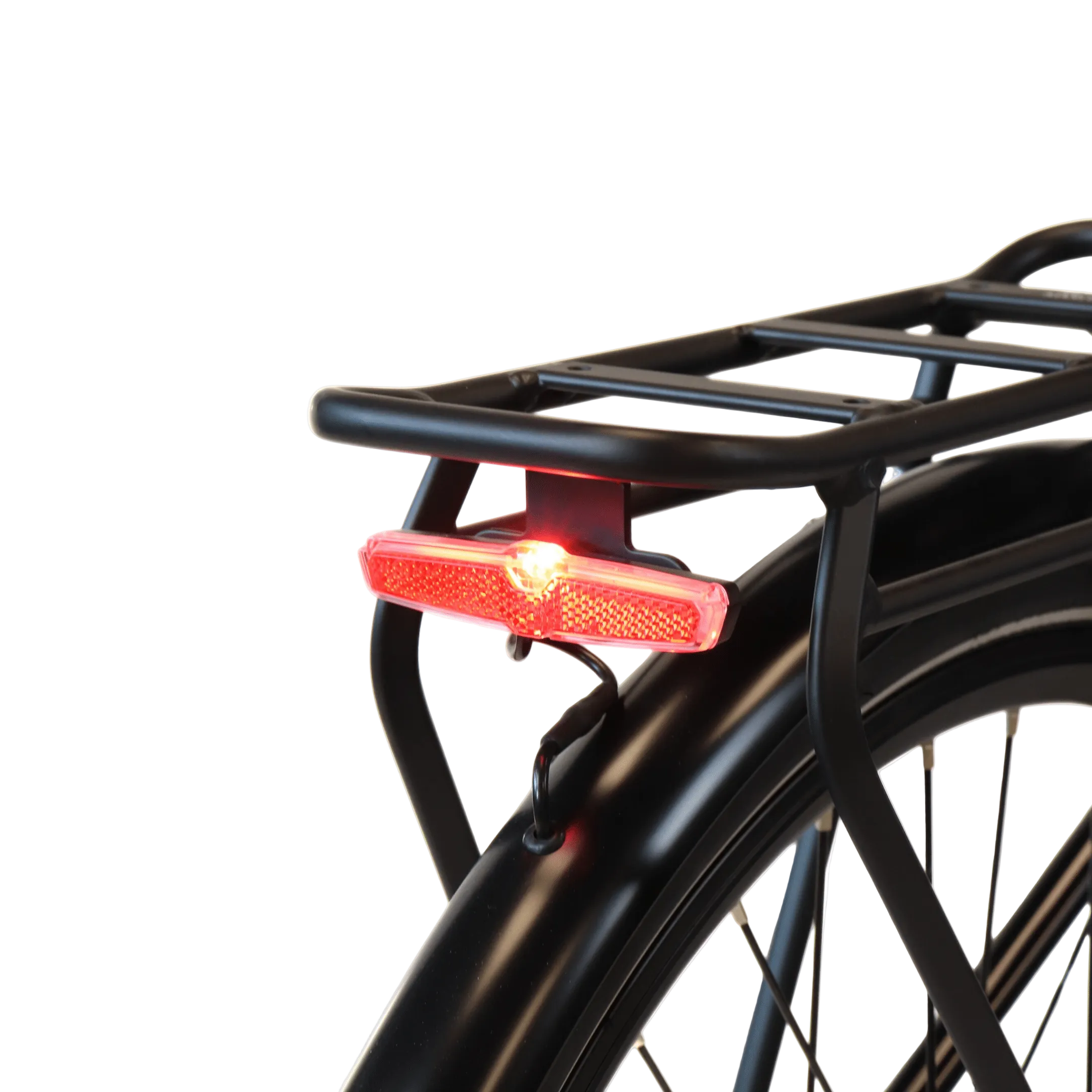

Rear Light: M8 6-52V
Charger: 42V 2A DC2.1（D-POWER)
Transmission

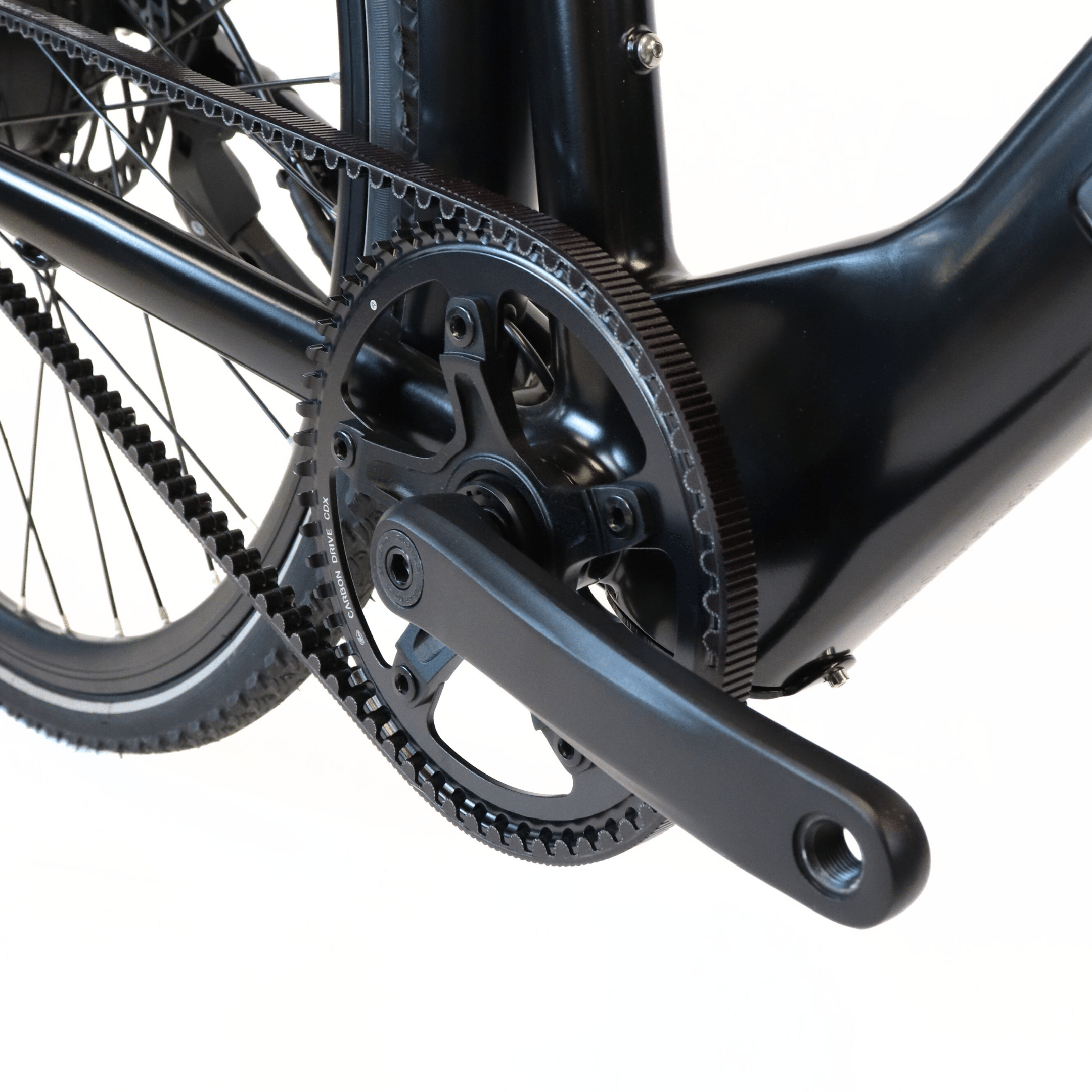

Crank: EC03 JIS 170L R/L, Gates
Belt Pulley: GATES - CDX 55T, BCD:130mm
Freewheel: CT1122XMN-U CDX 20T
Trans. Belt: GATES - 11M-120T-12CT CDX BLACK
Performance
Top Speed:32 kph
Est. Range: 90-95Km（PAS 1st level） 45-50Km（PAS 5th level）
Curb Weight: 19.8 KG
Charging Time: 3.5H
Measurements

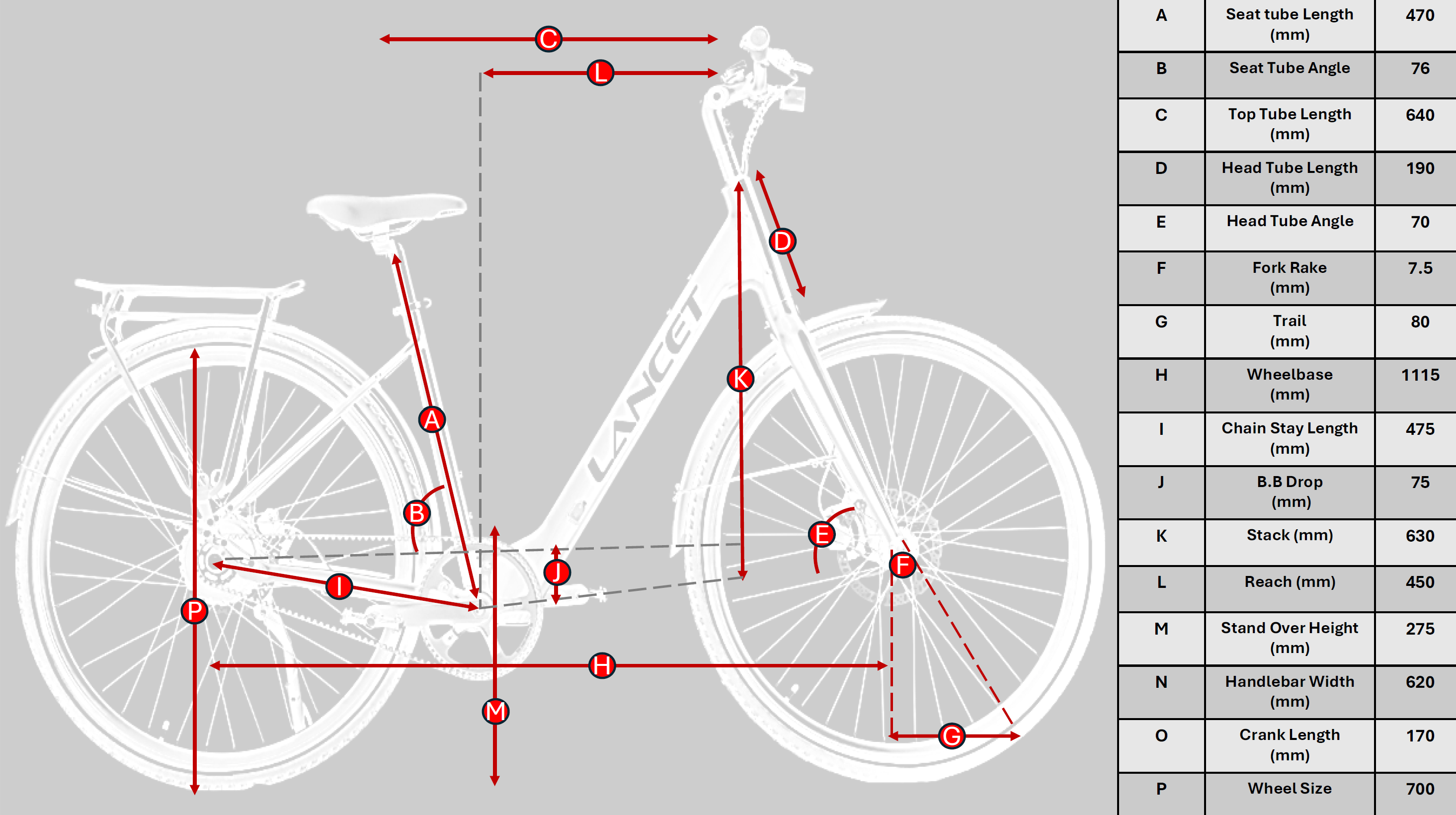

Geometry
Customer Reviews

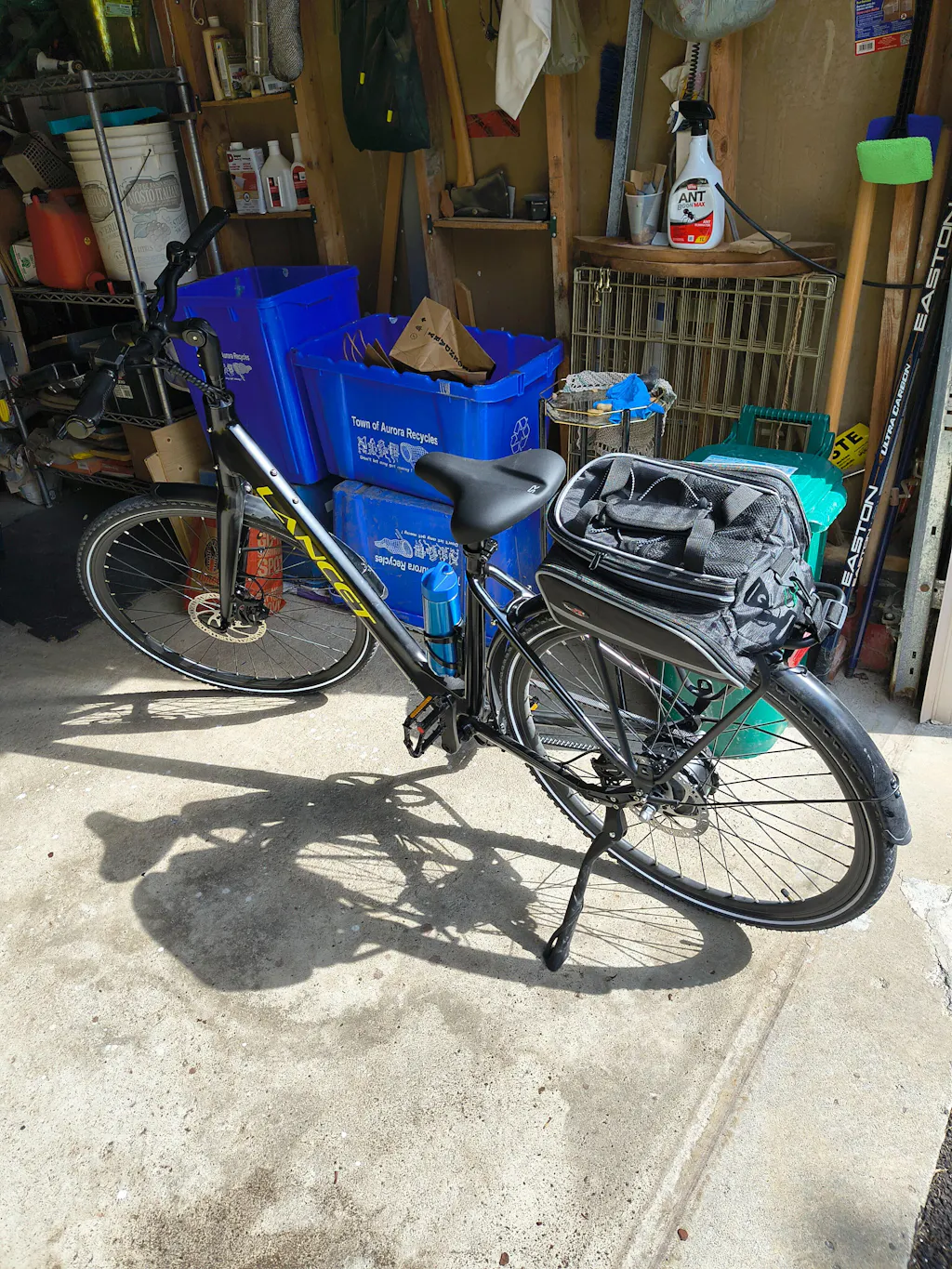

Awesome! I got myself a Lancet step-through e-Bike for the summer, and I'm absolutely loving it! It's got everything I need for my daily rides, and Ebikecan helped me pick out the perfect one. I definitely recommend it for anyone looking for a great e-Bike for their adventures!
FAQs
What is the estimated range on a full battery charge?
With pedal assist (PAS), the estimated range is:
Level1 PAS: 90–95 km
Level 5 PAS: 45–50 km
Note: Actual range may vary depending on terrain, rider weight, weather, and riding habits.
How long does it take to fully charge the battery?
Approximately 3.5 hours for a full charge.
What kind of warranty comes with your E-bikes?
Frame: 4 years
Electrical components (battery, motor, controller, charger, display, sensor, throttle): 18 months
Can I assemble them by myself?
Yes! Our E-bikes arrive 90% pre-assembled. You’ll just need to install the handlebar, front tire, and lights. Assembly is quick and straightforward.
Are financing or payment plans available?
Yes, we offer financing through Klarna and PayPlan by RBC.
You can easily select your preferred payment option at checkout — it only takes a few clicks!
What are the differences between Class 1, Class 2, and Class 3 E-bikes?
Class 1: Pedal assist only, no throttle — up to 32 km/h
Class 2: Pedal assist + throttle — up to 32 km/h
Class 3: Pedal assist only, no throttle — up to 45 km/h
What is the recommended rider height range?
Lancet 2 is Suitable for riders from 5'5" to 6'4" (167–195 cm)
