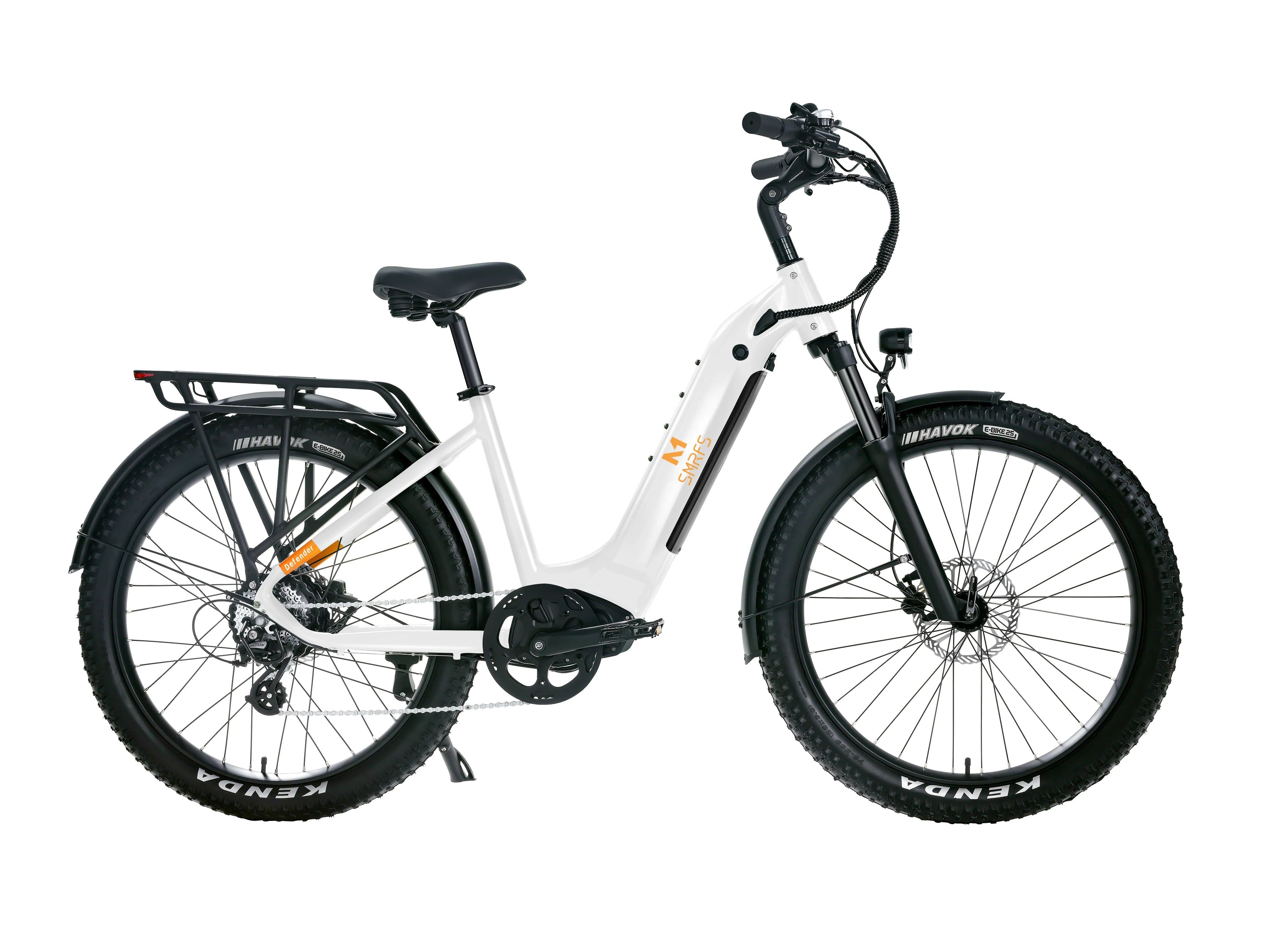

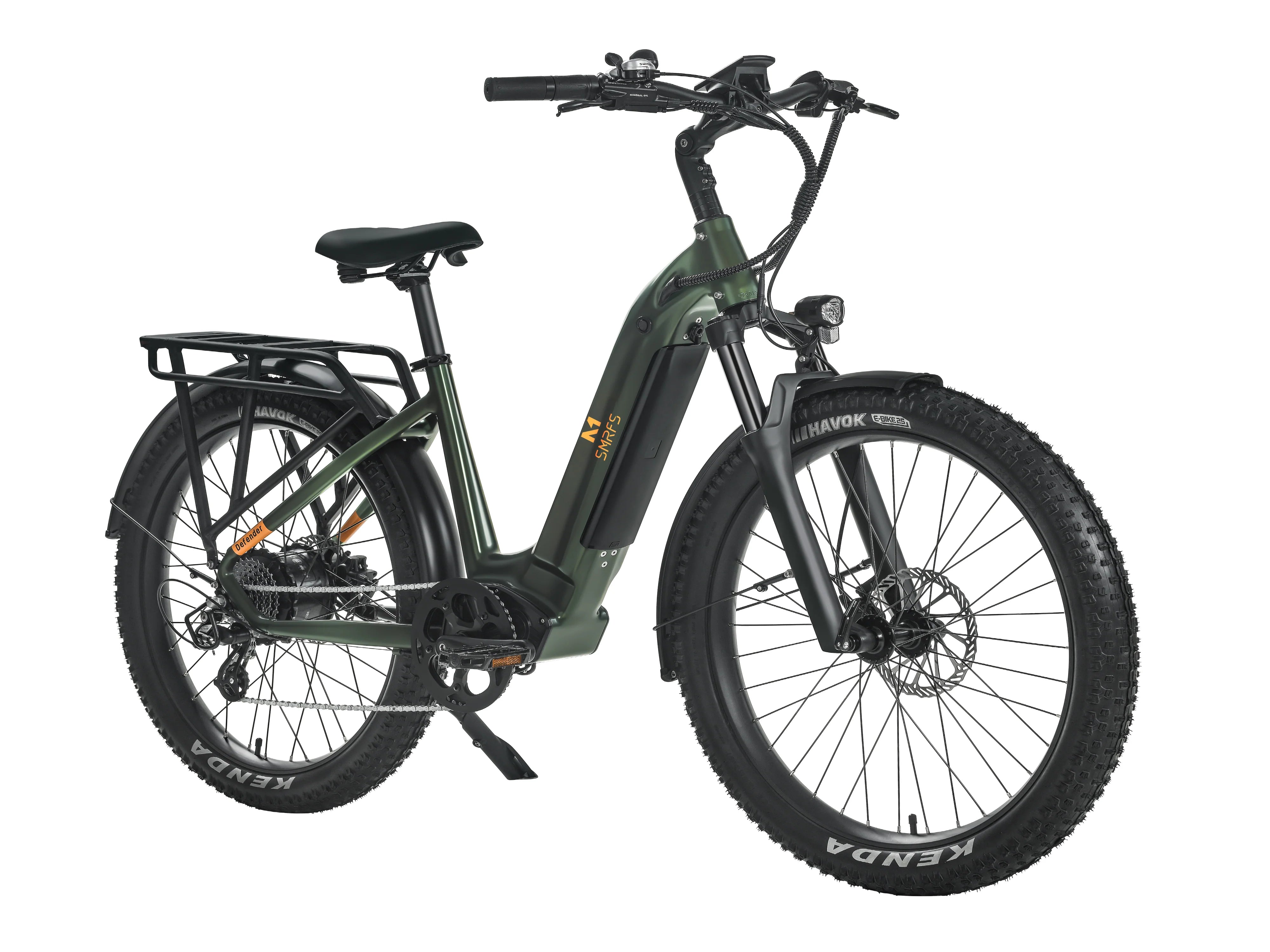

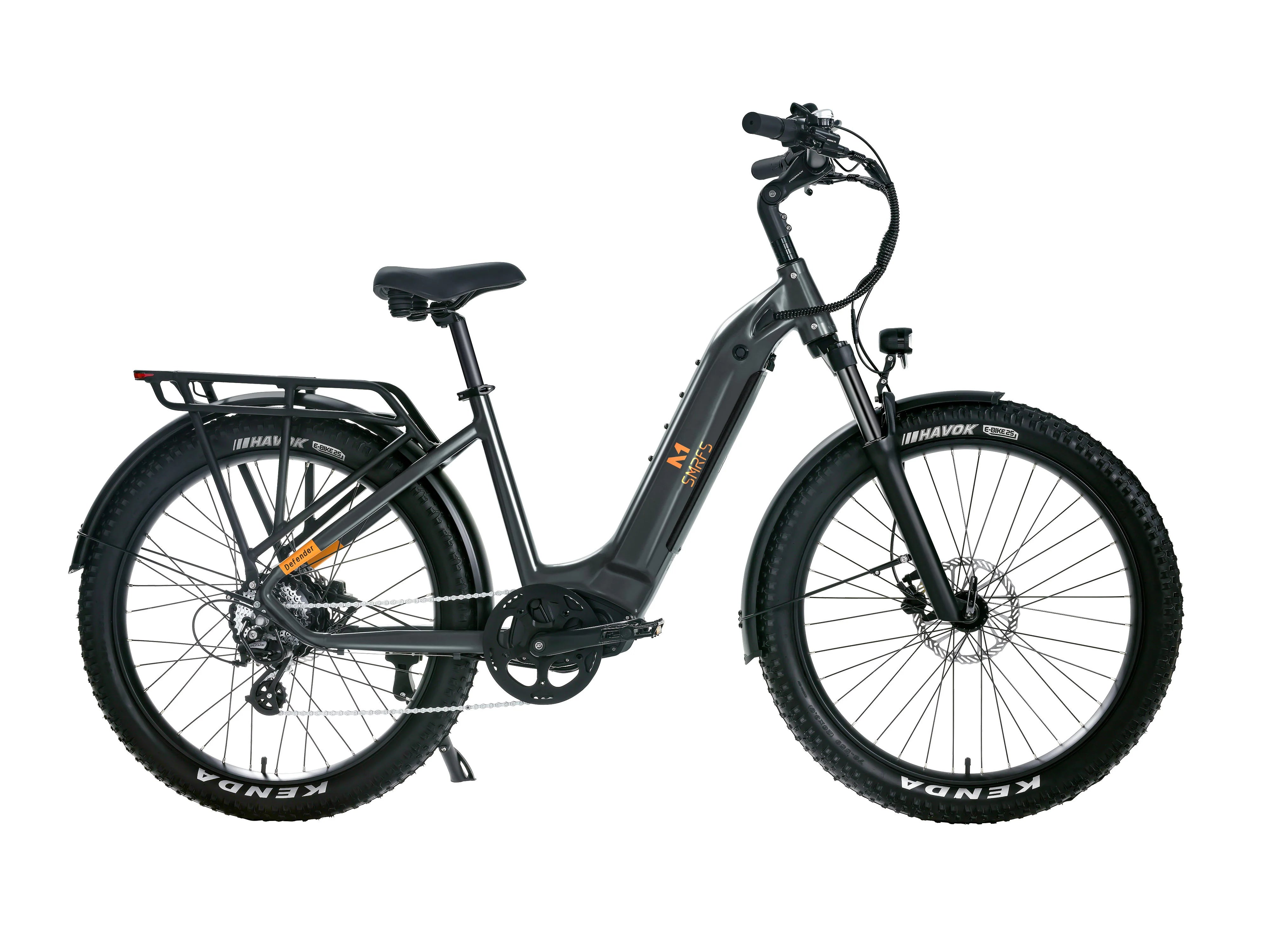

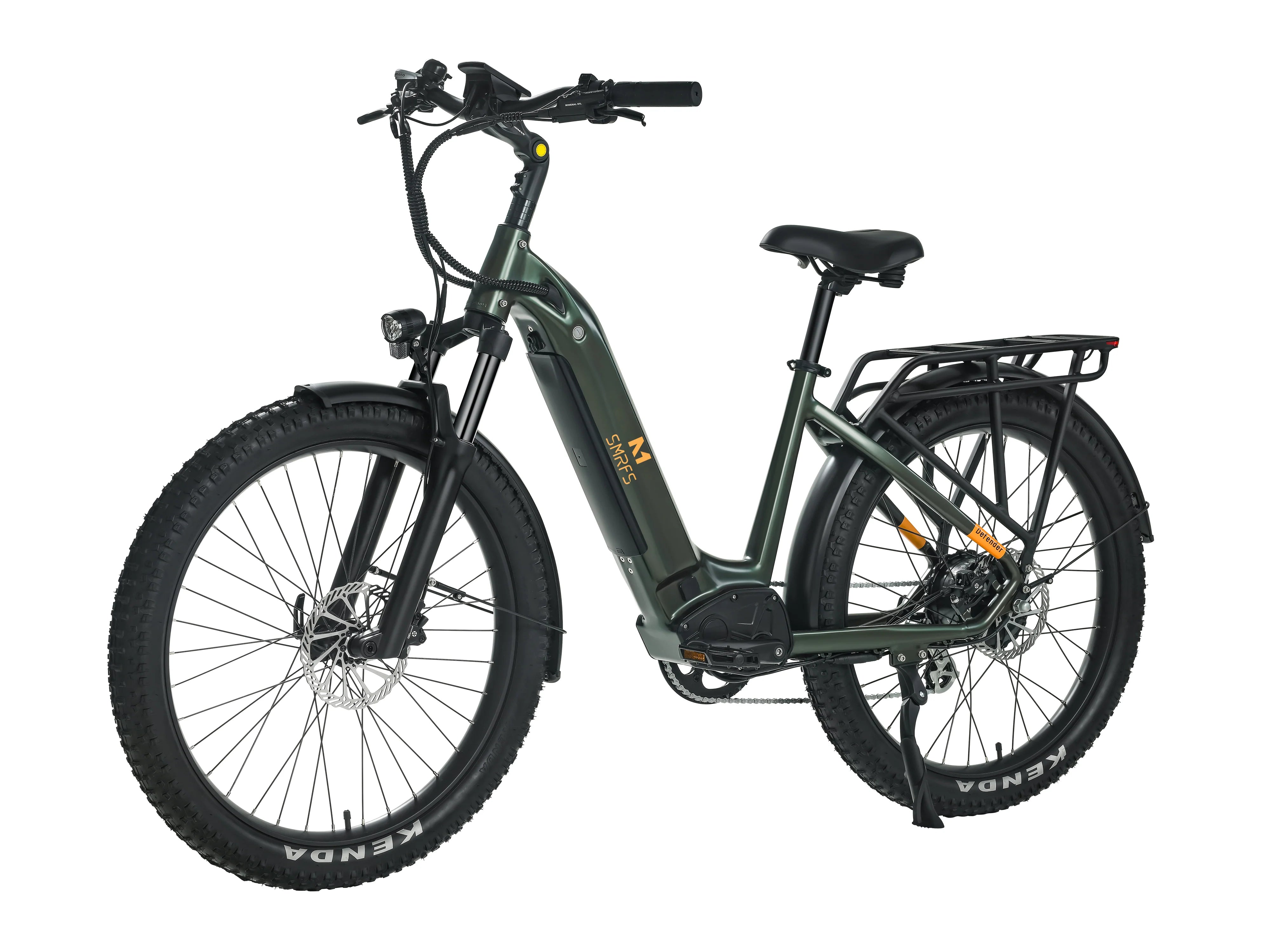

Sasquatch SMRFS
Class Configurator
BUILD DETAILS

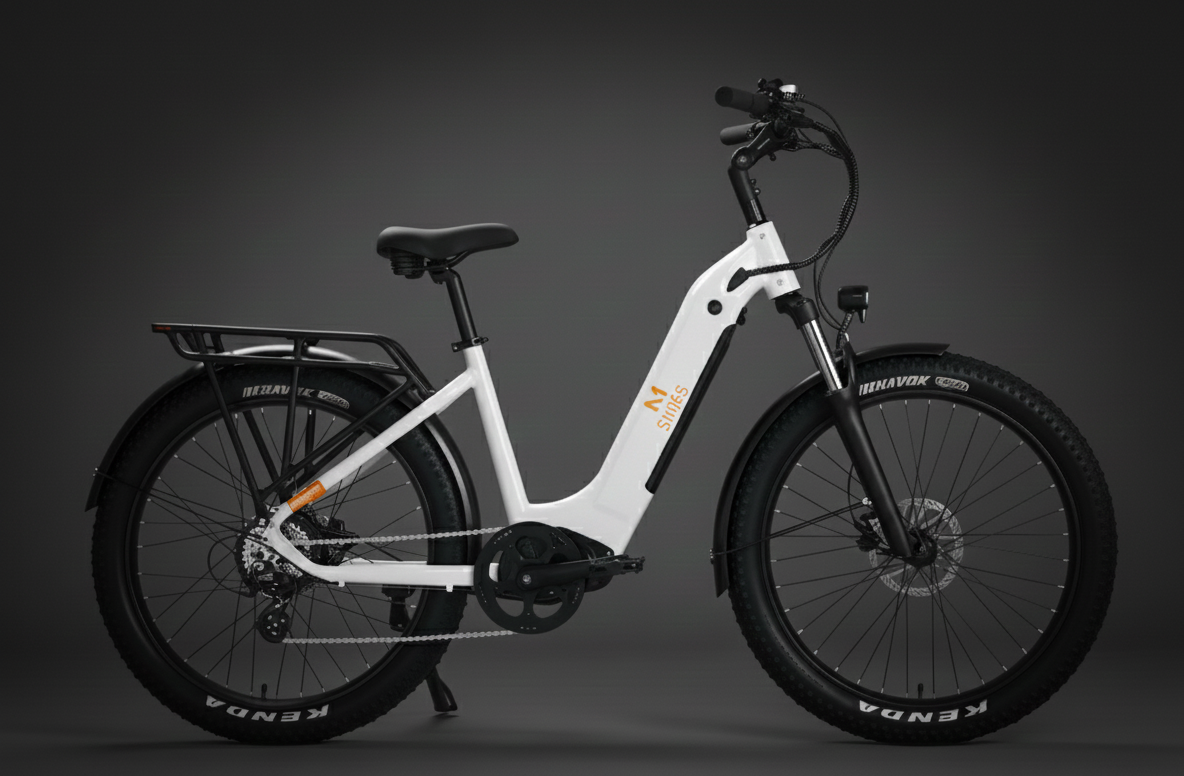

The All new Sasquatch X SMRFS now available with an accessible step-thru frame for easy mounting and dismounting. The Sasquatch is now equipped with a more powerful Motor, higher capacity battery with optional range extender, and 26" x 3.0 Wheelset for a balanced ride with fat bike stability, ample grip in all terrain conditions, and responsive steering and turning.
Designed for the outdoor life, the all new Sasquatch SMRFS are fully UL-Certified and IP65 waterproof; and come fully equipped with the latest safety and anti-theft features.
Performance
- Top Speed: 32 Kph
- Est. Range: 50-110 km
- Charging Time: 3-5 hr.
- Total Weight: 31 Kg | 72 lbs.
- Payload Capacity: 110 Kg / 245 lbs.
- Min. Rider Height: 5'2" (158 cm)
Specifications
|
FRAME & MAIN COMPONENTS |
|
|
Frame |
Aluminum alloy (AL6061) |
|
Front Fork |
29inch Hydraulic Suspension Fork, 100mm travel, with lockout |
|
Headset |
H156E |
|
Handlebar |
HB-T319TP AL Alloy 6061 (PROMAX) |
|
Stem |
MA-596 AL Alloy 6061 adjustable (PROMAX) |
|
Brakes |
Hydraulic disc brake with power off sensor, 180mm (Star-Union) |
|
Saddle |
Black leather big and comfortable saddle (SR) |
|
Bell |
FY-02A-BK AL Alloy black bell |
|
Rims |
MD-40 26" AL Alloy double wall rim |
|
Tires |
K1184A, 26*3.0 , puncture-proof ,with reflective stripe (KENDA) |
|
Fenders |
Black Front/ Rear fender |
|
Rear Rack |
With rear light integrated and quick release rear basket |
|
Front Basket |
|
|
Kickstand |
YC-K031 adjustable |
|

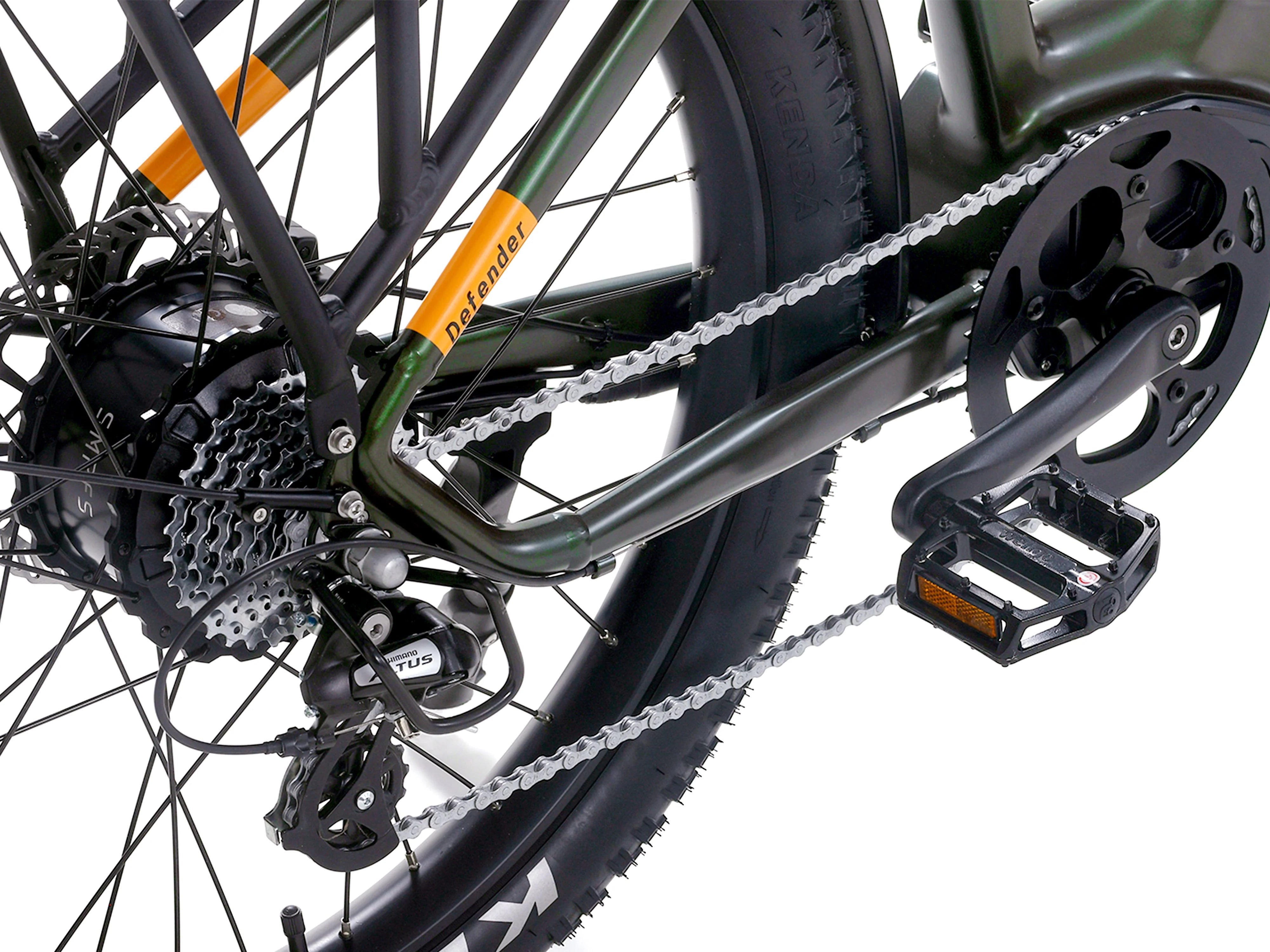

Transmission |
|
|
Crankset |
170mm/46T, AL Alloy (PROWHEEL) |
|
Chainwheel |
BST-BT10P 46T AL Alloy chainwheel (PROWHEEL ) |
|
Freewheel |
ATA KDF-GS732 11-32T |
|
Bottom Bracket |
|
|
ELECTRICAL SYSTEM |
|
|
Motor |
48V 750W rear hub motor IPX6, speed:45km/h |
|
PAS |
BBTS3 Torque sensor（LDS）5 level of assist |
|
Battery |
48V, 13.6Ah(Max 14Ah) (672Wh), UL certified |
|

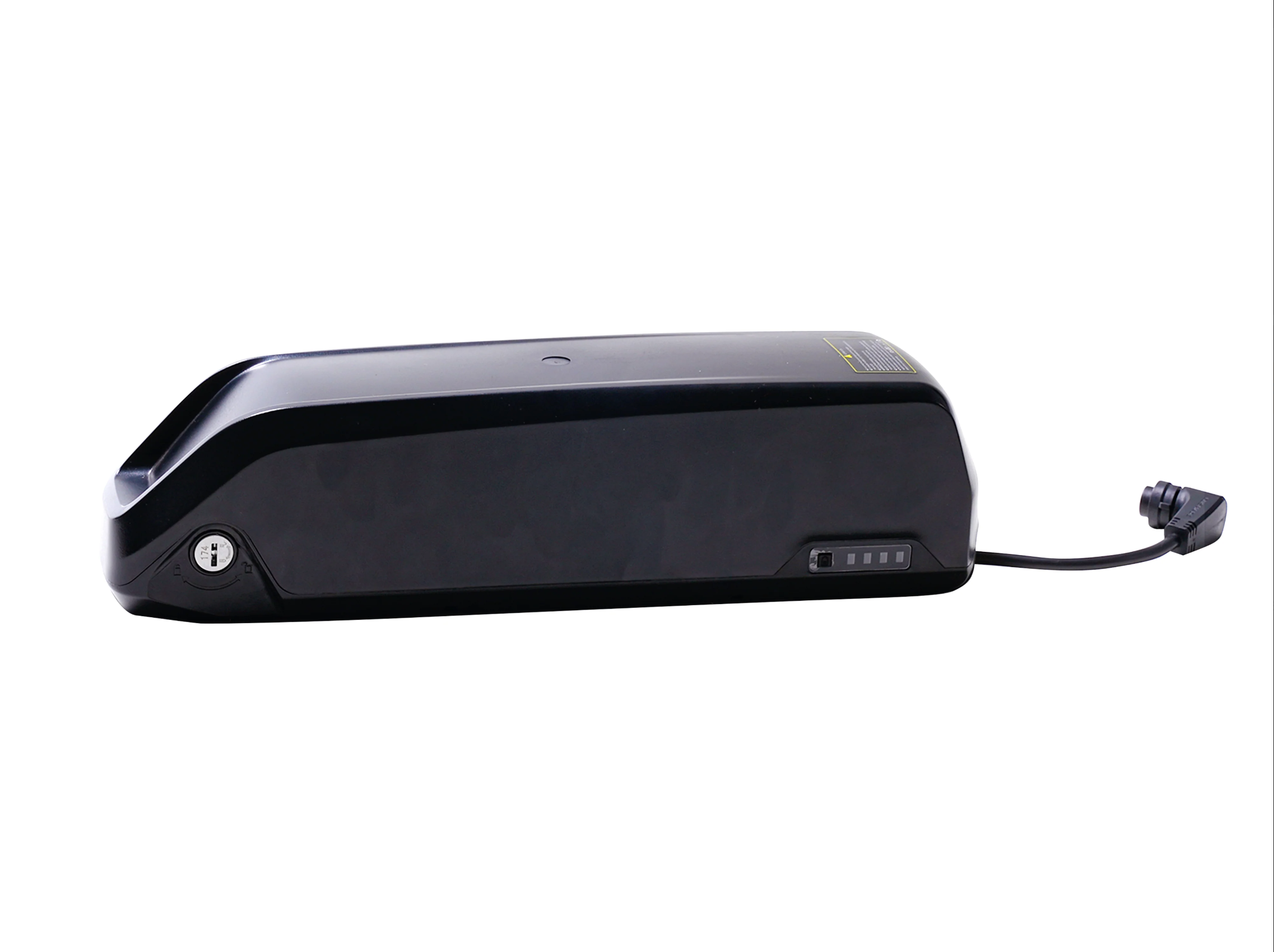

Dual battery |
Optional |
|
Charger |
54.6V 3A charger US standard, UL certified |
|
Throttle |
Twist throttle with matched grips (Star-Union) |
|
Front Light |
XC-275E 6-48V with US standard reflector, adjustable support ,IPX6 |
|
Taillight |
Integrated inside rear rack, with turning signal, IPX6 |
|
Cables |
Waterproof and quick release |
|
Controller |
48V 25A Sine wave controller |
|

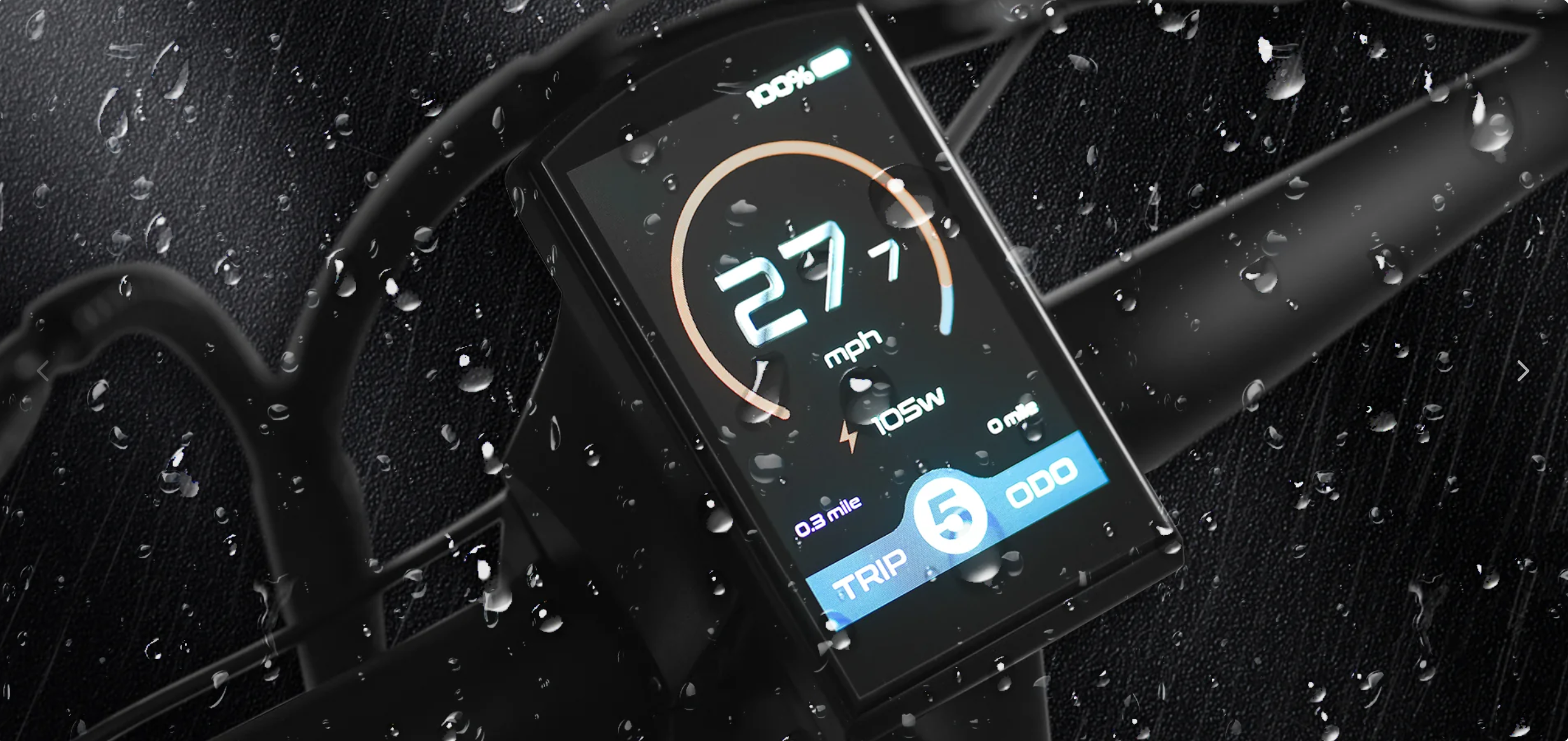

Display |
KD986, with Type C charging port /Light-sensing automatic function |
|
PERFORMANCE |
|
|
Max Speed |
45 km/h (adjustable) |
|
Maximum Range |
50 - 90 km |
|
Maximum Payload |
245 lbs |
|
Min Rider Height |
5.2” |
|
Net Weight |
66 lb/30 kg |
GEOMETRY
Optional Add-ons
Couldn't load pickup availability
Pickup available at Store location
Usually ready in 24 hours2-Years Warranty
Experience peace of mind with parts, and service from local Canadian bike shops, under our comprehensive warranty coverage
Free Shipping
Get your e-bike delivered in just 2–6 days, Across Canada.
30-Day Returns
Changed your mind? Return or exchange your e-bike within 30 days, no hassle.
Access & Comfort
Built from precision-engineered AL6061‑T6 aluminum, with a reinforced mid-pipe and controller box, the step‑thru frame delivers exceptional stiffness with minimal flex for a confident, stable ride. The intuitive torque‑sensing pedal assist works seamlessly with the high‑torque hub motor to deliver quick acceleration and effortless hill climbing. 26" × 3.0 Kenda tires provide a comfortable, puncture resistant ride, with the perfect balance between fat‑tire stability and agile, responsive steering.
Water & Rust proof
Water and rust protection are built into every critical component, starting with a UL‑certified battery and electronics system for enhanced safety and reliability. The IPX6 water‑resistance rating means the bike is engineered to withstand heavy splashes and wet riding conditions. Every exposed metal part is specially treated to be rustproof, helping your e‑bike stay clean, durable, and ready for any weather, anywhere.

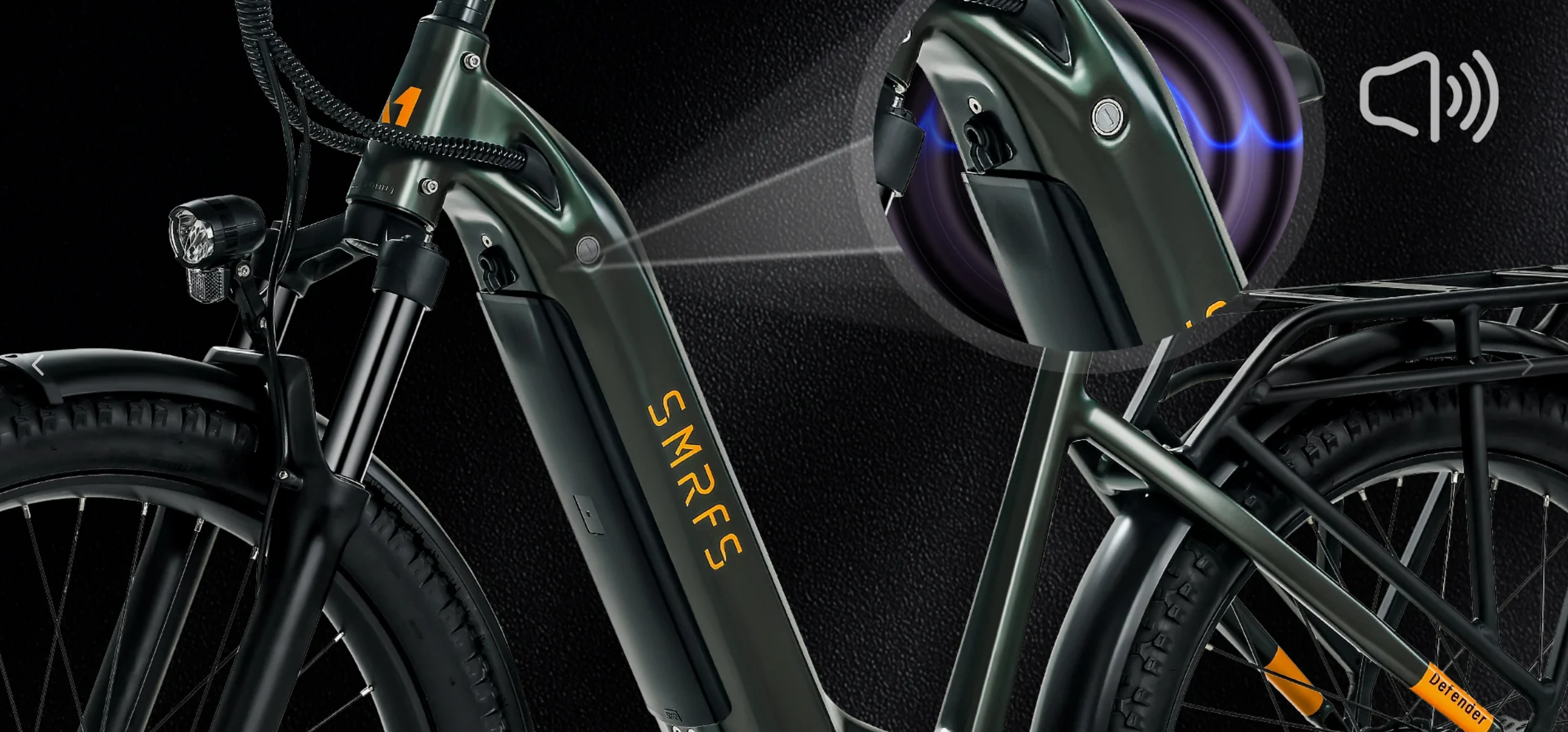

Anti-Theft Alarm System
An integrated anti‑theft system helps keep the bike secure wherever it is parked. A state‑of‑the‑art lock and audible alarm setup deters tampering and unauthorized movement. Built‑in Apple Find My integration lets riders conveniently track and monitor the e‑bike’s location from their Apple devices for added peace of mind.
Ready for the great outdoors

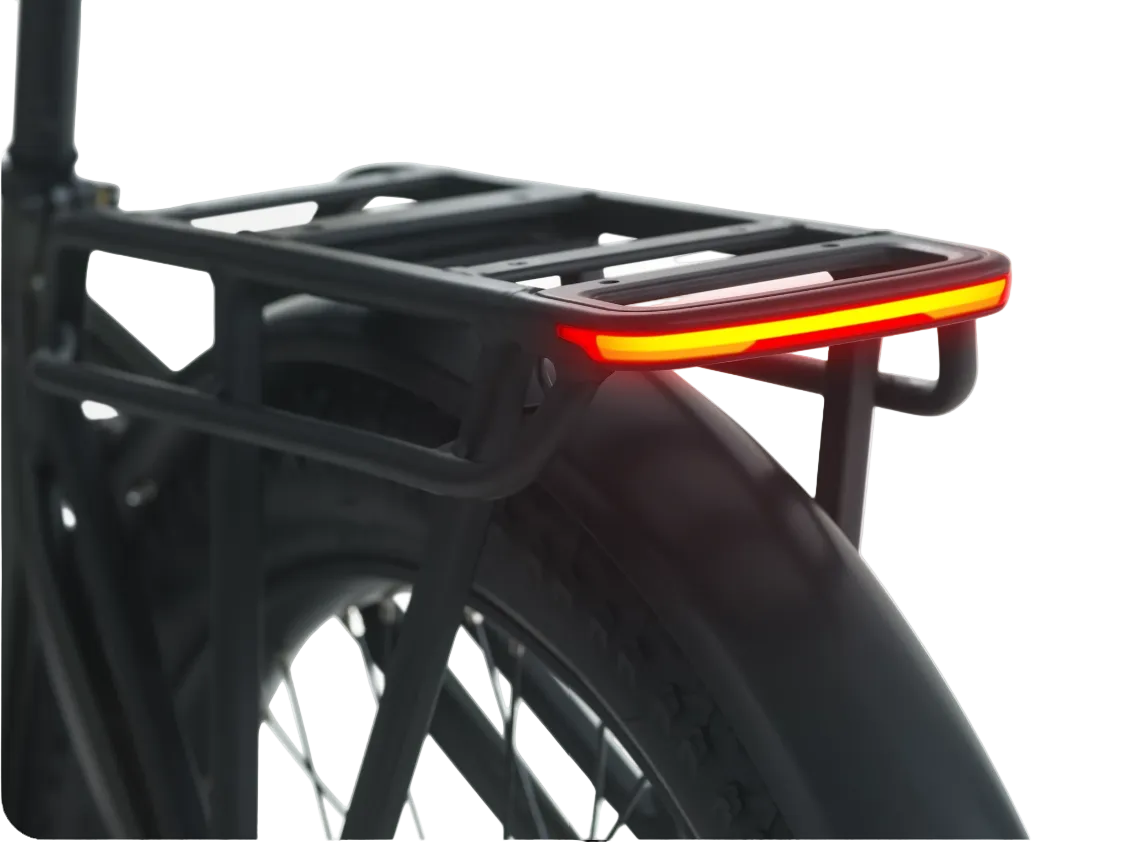

LED Front and rear lights for riding in low visibility environments. The rear LED light, integrated into the rear cargo rack, includes brake light and turn signal functionalities for added safety and protection.
180mm Hydraulic disk brakes for confident braking and optimal stopping power in any weather and surface conditions.

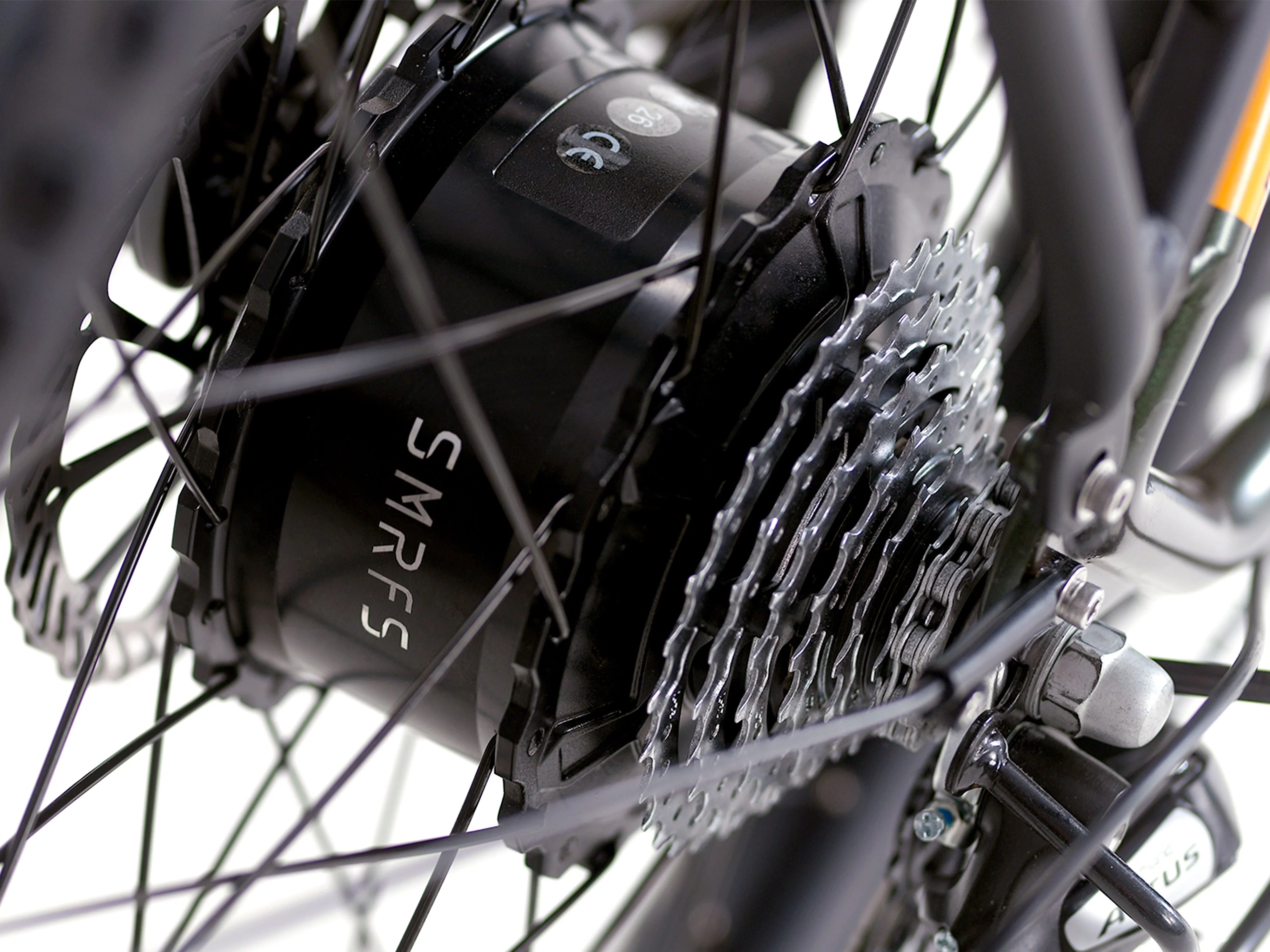

Powerful 750W Brushless hub motor provides up to 95 N.m of torque for rapid acceleration and hill climb ability.
Advanced LDS Bottom Bracket integrated torque sensor provides customizable and natural feeling pedal assist.

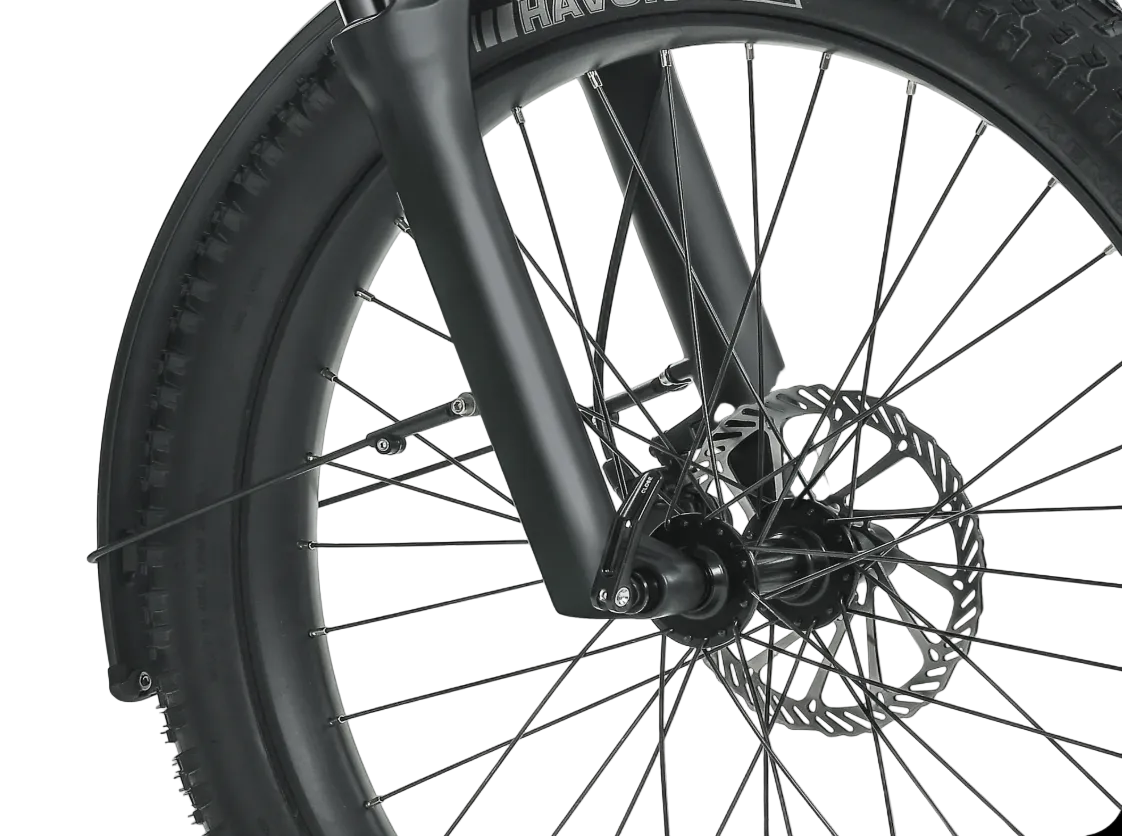

Front Suspension fork with hydraulic lockout for maximum comfort and control over rough terrain. The front fork and hub feature a thru-axle design with enhanced safety and higher impact absorption, compared to quick-release designs
Rated Torque
Cont. Power
Est. Range
IPX65 RATED
All electronics, wiring and electrical connections on the Aurora GRX are designed and tested to IP65 rating for water and dust protection.
SGS; UL-C Certified
All Ebikecan models & electronics are tested and certified by SGS Labs to UL-2849/UL-2271 Standards.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
Frame and Main Components
Frame:
Aluminium AL6061
Front Fork:
FIX15 29inch Hydraulic Suspension Fork with 100mm travel, with lockout
Stem:
MA-596 AL Alloy 6061 Adjustable (PROMAX)
Handlebar:
HB-T319TP AL Alloy 6061 (PROMAX)
Rims:
MD-40 26" AL Alloy double wall rim
Tires:
K1184A, 26*3.0 , puncture-proof ,with reflective stripe (KENDA)
F/R Brakes:
Hydraulic disc brake with power off sensor, 180mm (Star-Union)
Saddle:
Black leather big and comfortable saddle (SR)
Electrical System
Motor:
48V 750W rear hub motor IPX6, speed:45km/h
Battery:
48V, 13.6Ah(Max 14Ah) (672Wh), UL certified
Controller:
48V 25A Sine wave controller
PAS:
BBTS3 Torque sensor（LDS）5 level of assist
Display:
KD986, with Type C charging port /Light-sensing automatic function
Front Light:
XC-275E 6-48V with US standard reflector, adjustable support ,IPX6
Rear Light:
Integrated inside rear rack, with turning signal, IPX6
Charger:
54.6V 3A charger US standard, UL certified ）
Transmission
Crank:
170mm/46T, AL Alloy (PROWHEEL)
Chainwheel :
BST-BT10P 46T AL Alloy chainwheel (PROWHEEL )
Freewheel:
ATA KDF-GS732 11-32T
Chain:
Performance
Top Speed:
45 km/h (Adjustable)
Est. Range:
50-90 km
Charging Time:
Total Weight:
68 lb/31 kg
FAQs
What is the estimated range on a full battery charge?
About 60-90 Kms
Note: Actual range may vary depending on terrain, rider weight, weather conditions, and riding style.
How long does it take to fully charge the battery?
Charging from 0% to 100% takes approximately 3.5 hours.
What kind of warranty comes with your E-bikes?
Frame: 4 years
Electrical Components: 18 months
(Includes: battery, motor, controller, charger, display, sensor, and throttle)
Is Aurora GRX water resistant?
Yes, all our e-bikes are designed with an IPX65 water resistance rating, making them safe to use in rainy conditions. However, we advise against fully submerging the e-bike in water.
Can I assemble them by myself?
Yes! Our E-bikes arrive 90% pre-assembled. You'll only need to install the handlebar, front tire, and lights. The process is simple and straight forward.
Are financing or payment plans available?
Yes, we offer flexible financing options through Klarna and PayPlan by RBC.
You can easily select your preferred plan at checkout — it only takes a few clicks!
What is the recommended rider height range?
Aurora GRX is ideal for riders between 5'6" and 6'5" (168–198 cm).
What are the differences between Class 1, Class 2, and Class 3 eBikes?
Class 1: Pedal assist only, no throttle — up to 32 km/h
Class 2: Pedal assist + throttle — up to 32 km/h
Class 3: Pedal assist only, no throttle — up to 45 km/h
Still Not Sure?
If you can’t decide which model suits you best; just come try them out! Test rides are quick, easy, and totally free – let’s find your perfect match.
