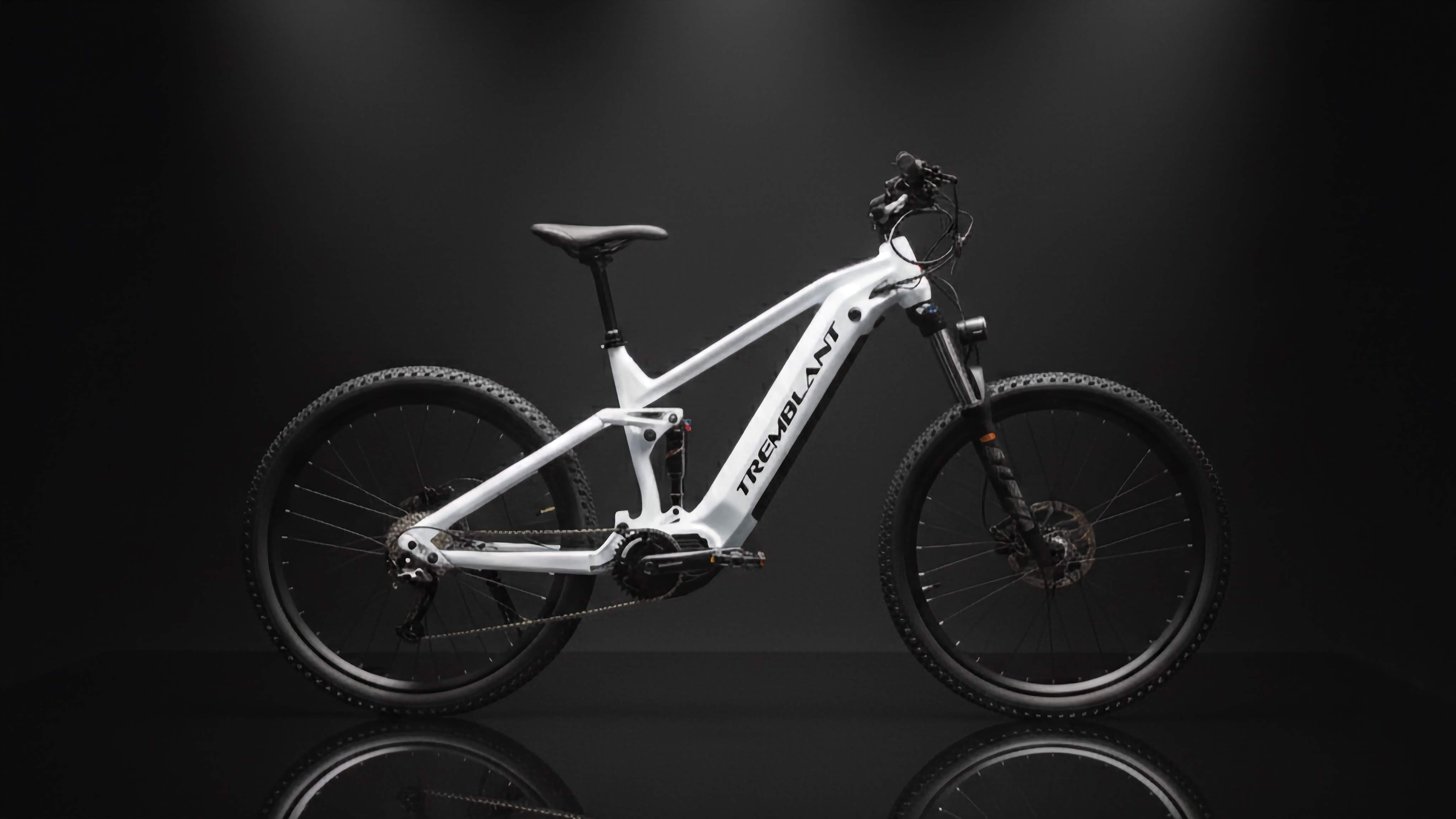

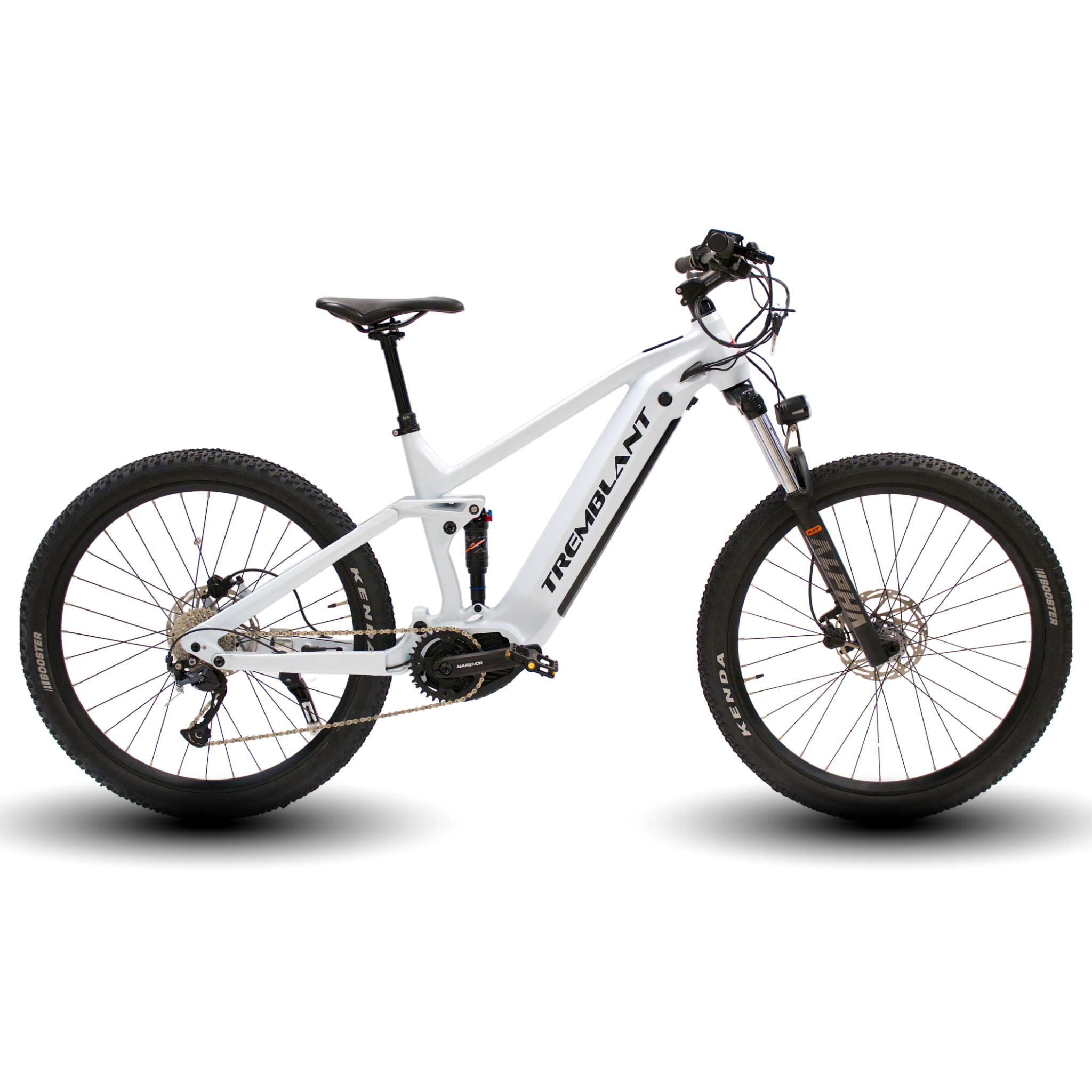

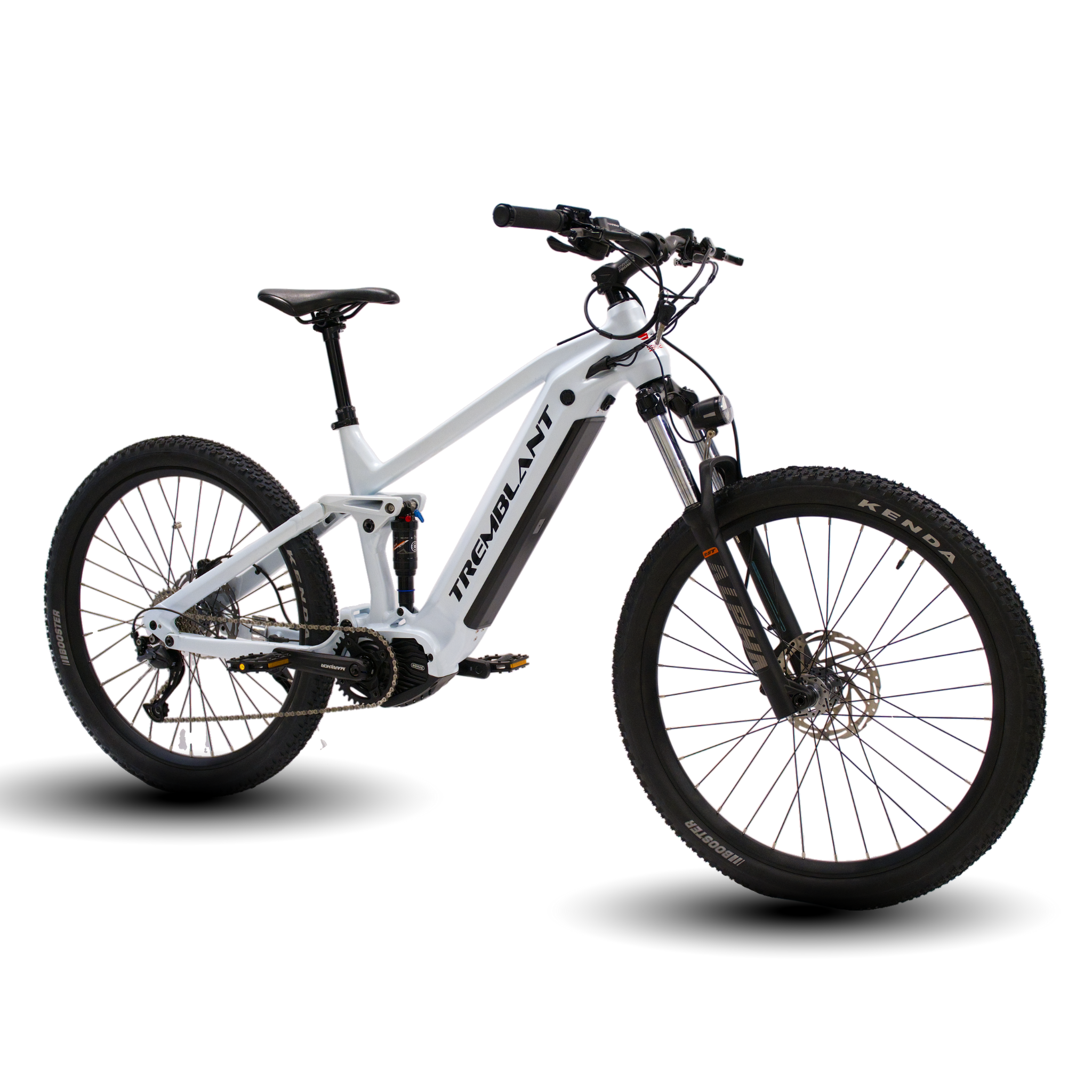

All new for 2026! The Tremblant is EBC flagship e-MTB release for the 2026 season
The Tremblant Core is engineered as a versatile all‑mountain platform for varied terrain and full‑day trail objectives. Its multi‑link rear suspension and balanced geometry are tuned for efficient climbing, composed descending, and predictable handling on everything from tight singletrack to broken, off‑camber sections. The Bafang M560 E‑Drive system and integrated control suite deliver smooth, torque‑sensitive assistance that supports steady pacing, technical features, and frequent elevation changes without overwhelming the ride feel. Paired with a 720 Wh UL‑certified LG downtube battery, the Tremblant Core is built to link trail networks, extend route options, and make diverse terrain feel like a cohesive ride experience.
Performance
- Top Speed: 32 KPH - 45 KPH (Class Dependent)
- Est. Range: 60-80 KM
- Charging Time: 2.5 hr (80%)
- Total Weight: 28.9 KG | 62 lbs.
- Payload Capacity: 110 Kg / 245 lbs.
- Min. Rider Height: 5'6" (168 cm)
Specifications
|
FRAME & MAIN COMPONENTS |
|
|
Frame |
27.5-inch Lightweight Aluminum Alloy |
|
Front Fork |
RST hydraulic Front suspension fork, Travel:120mm/ Brand:RST |
|
Headset |
Aluminum Alloy |
|
Handlebar |
L780mm Aluminum Alloy 6061 |
|
Stem |
MA-596 AL Alloy 6061 adjustable (PROMAX) |
|

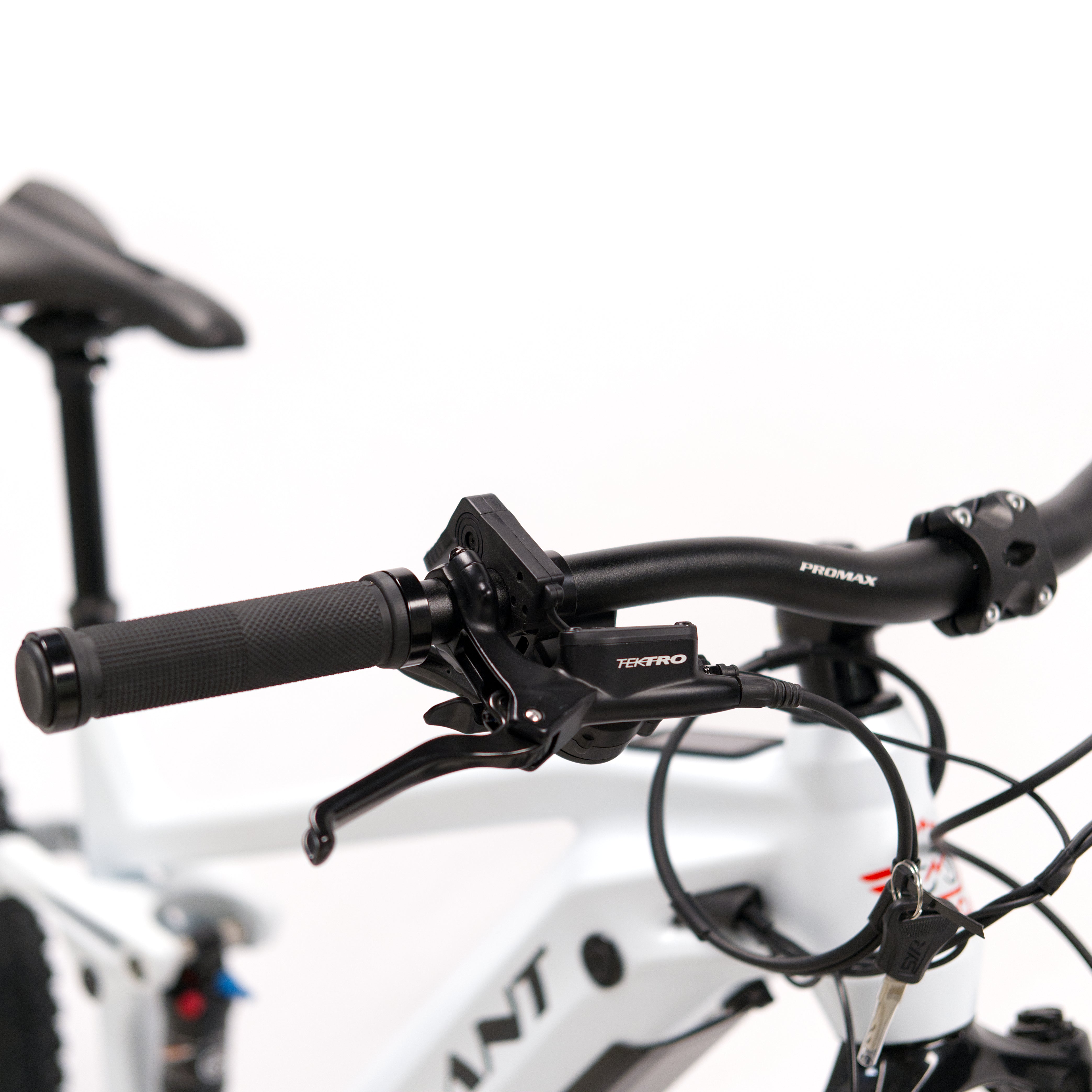

Brakes |

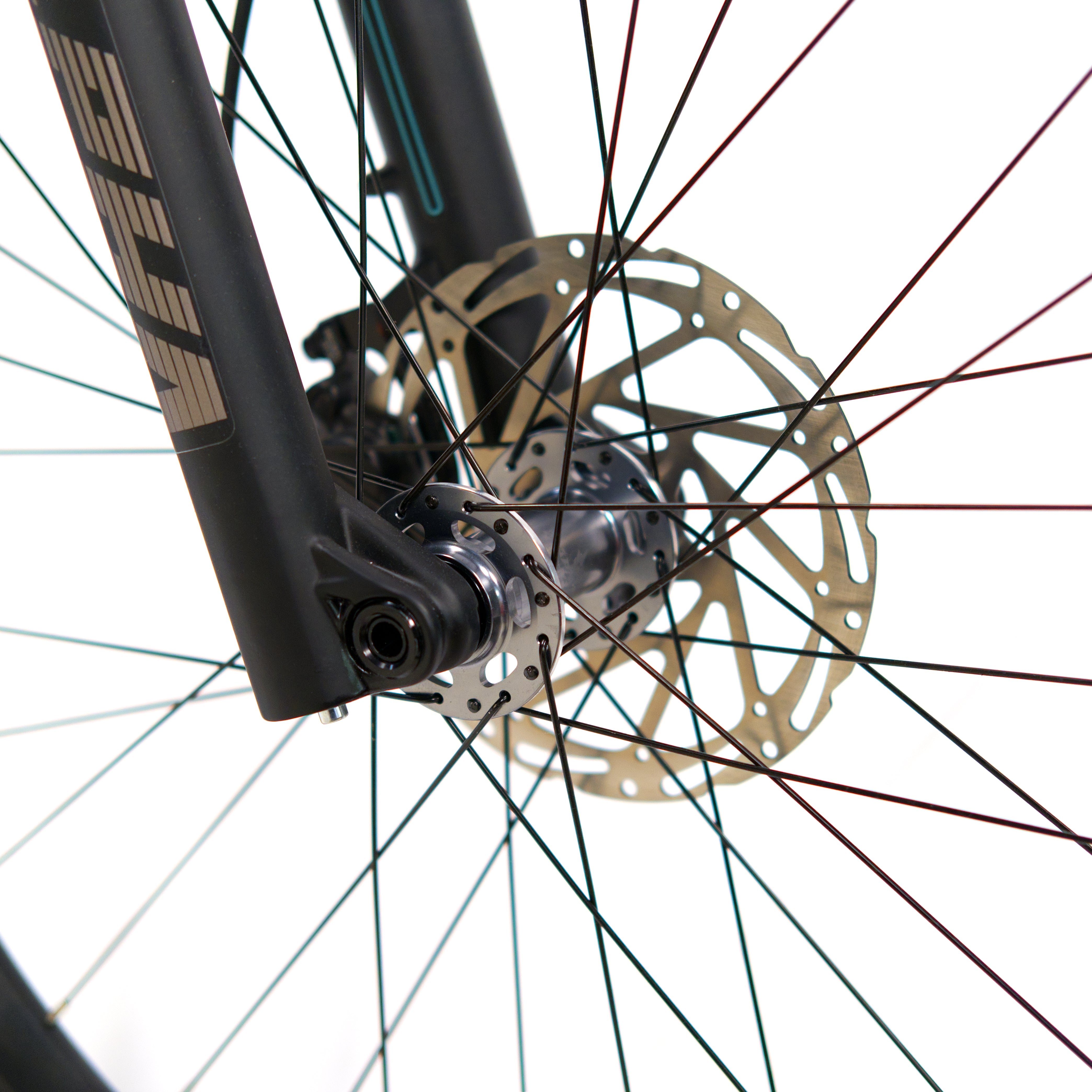

F/R TEKTRO E3520 hydraulic Disc-brake, 180mm disc(Brand:Tektro) |
|
Saddle |
Sport type (Brand:SR) |
|
Bell |
|
|
Rims |
27.5 inch Aluminum Alloy rim for MTB |
|
Tires |
KENDA BOOSTER, 27.5*2.3 (Brand:KENDA) |
|
Fenders |
Aluminum alloy |
|
Rear Rack |
|
|
Front Basket |
|
|
Kickstand |
Aluminum alloy |
|
Transmission |
|
|
Crankset |
Bafang, 160 mm |
|
Chainwheel |
Steel 34 T*160 mm (Brand:BAFANG) |
|
Freewheel |
SHIMANO CS-HG201-9 9 Speed Cassette (Brand:SHIMANO) |
|
Bottom Bracket |
Integrated with BAFANG mid drive motor |
|
ELECTRICAL SYSTEM |
|
|
Motor |

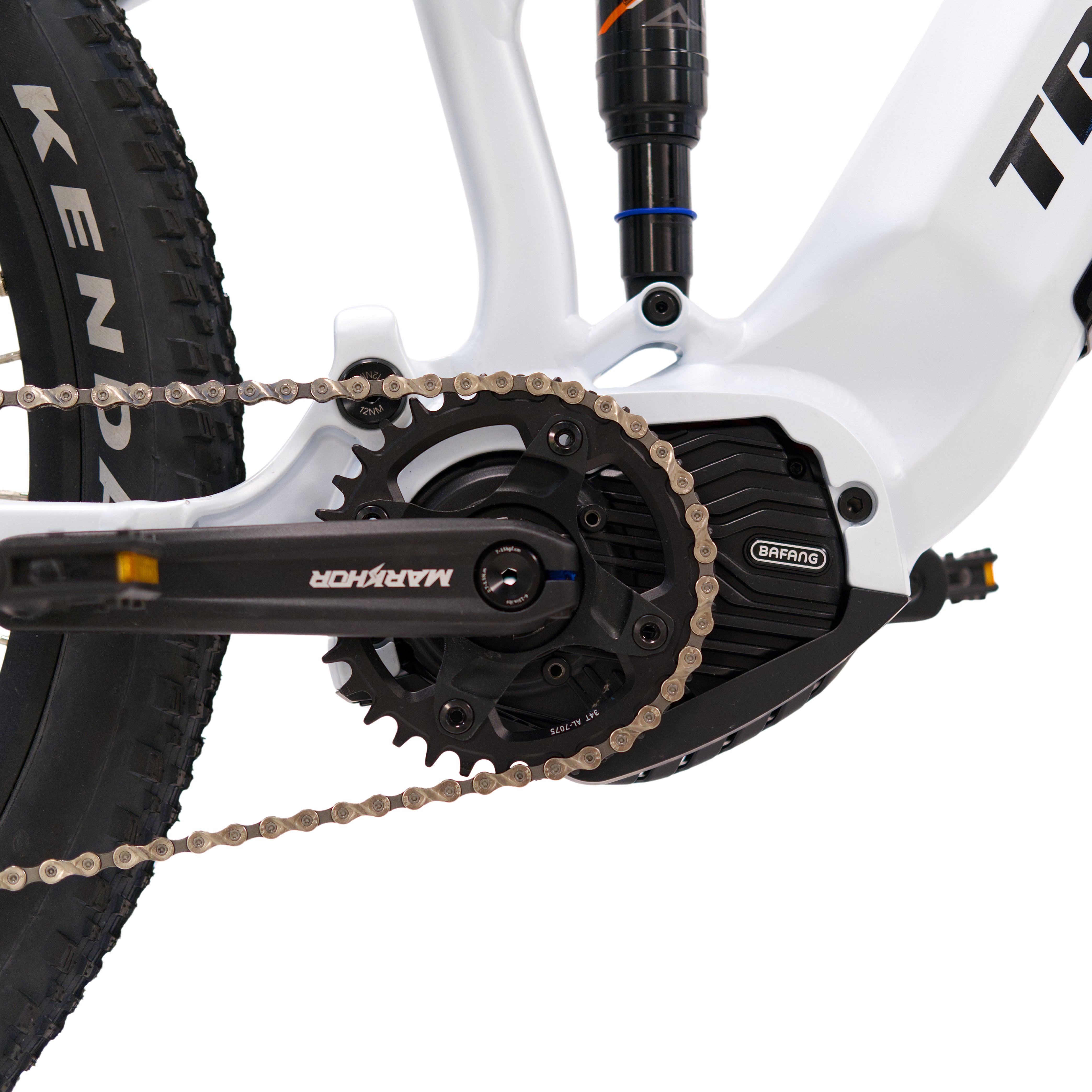

BAFANG M560 48V 500W mid drive motor ,Max Torque:130 NM |
|
PAS |
Torque sensor integrated inside BAFANG motor (Brand:BAFANG) |
|
Battery |

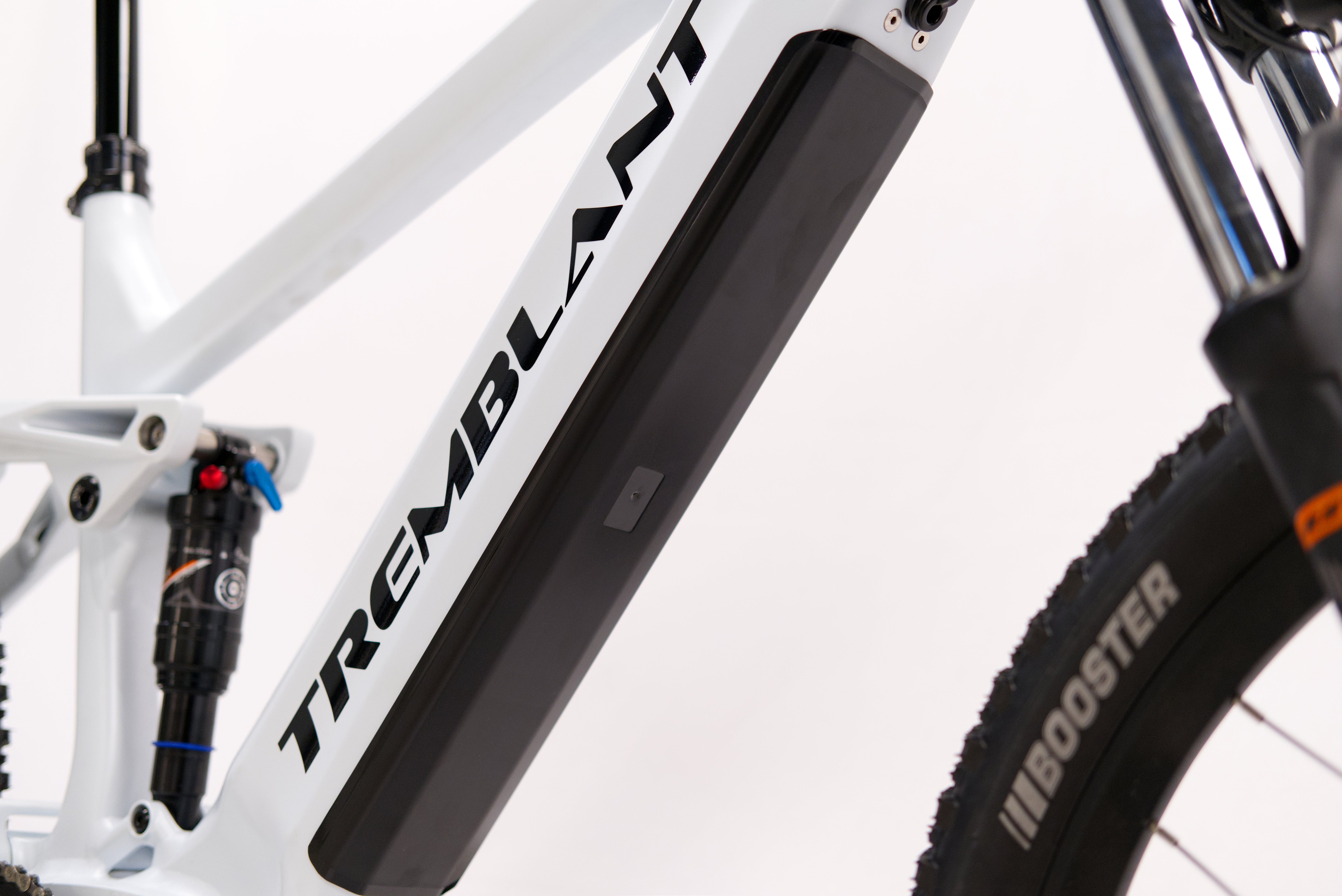

48V 15Ah (LG 5000mah) 720Wh with UL certified |
|
Dual battery |
|
|
Charger |
54.6V3A US standard DC2.1 |
|
Throttle |
Twist throttle with matched grips (Star-Union) |
|
Front Light |
QD240 LED light (Brand: STAR UNION) |
|
Taillight |
|
|
Controller |
BAFANG integrated/ Waterproof and quick release connector- BUS protocol |
|
Display |

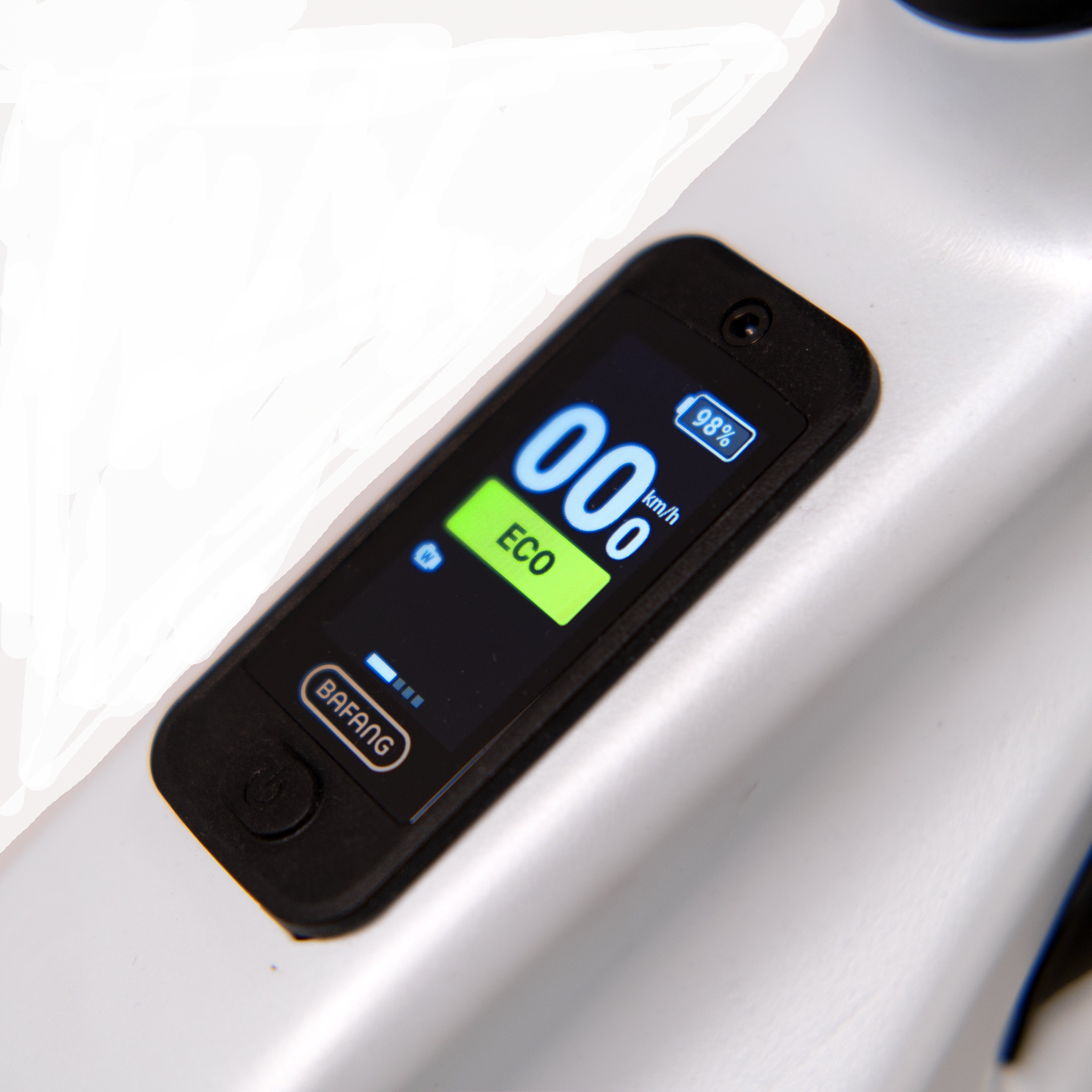

BAFANG DP color TFT display (with Bluetooth) integrated inside the frame |
|
PERFORMANCE |
|
|
Max Speed |
32 km/h (adjustable) |
|
Est. Range |
80-100 km |
|
Maximum Payload |
130 KGS |
|
Min Rider Height |
160cm-195cm |
|
Net Weight |
28.5 KGS |
Couldn't load pickup availability
Pickup available at Store location
Usually ready in 24 hours2-Yr Warranty
Experience peace of mind with parts, and service from local Canadian bike shops, under our comprehensive warranty coverage
Free Shipping
Get your e-bike delivered in just 2–6 days, Across Canada.
30-Day Returns
Changed your mind? Return or exchange your e-bike within 30 days, no hassle.
Core Edition - AL
Tremblant
125mm
The workhourse of bike transmissions! The 12 speed Shimano Deore groupset

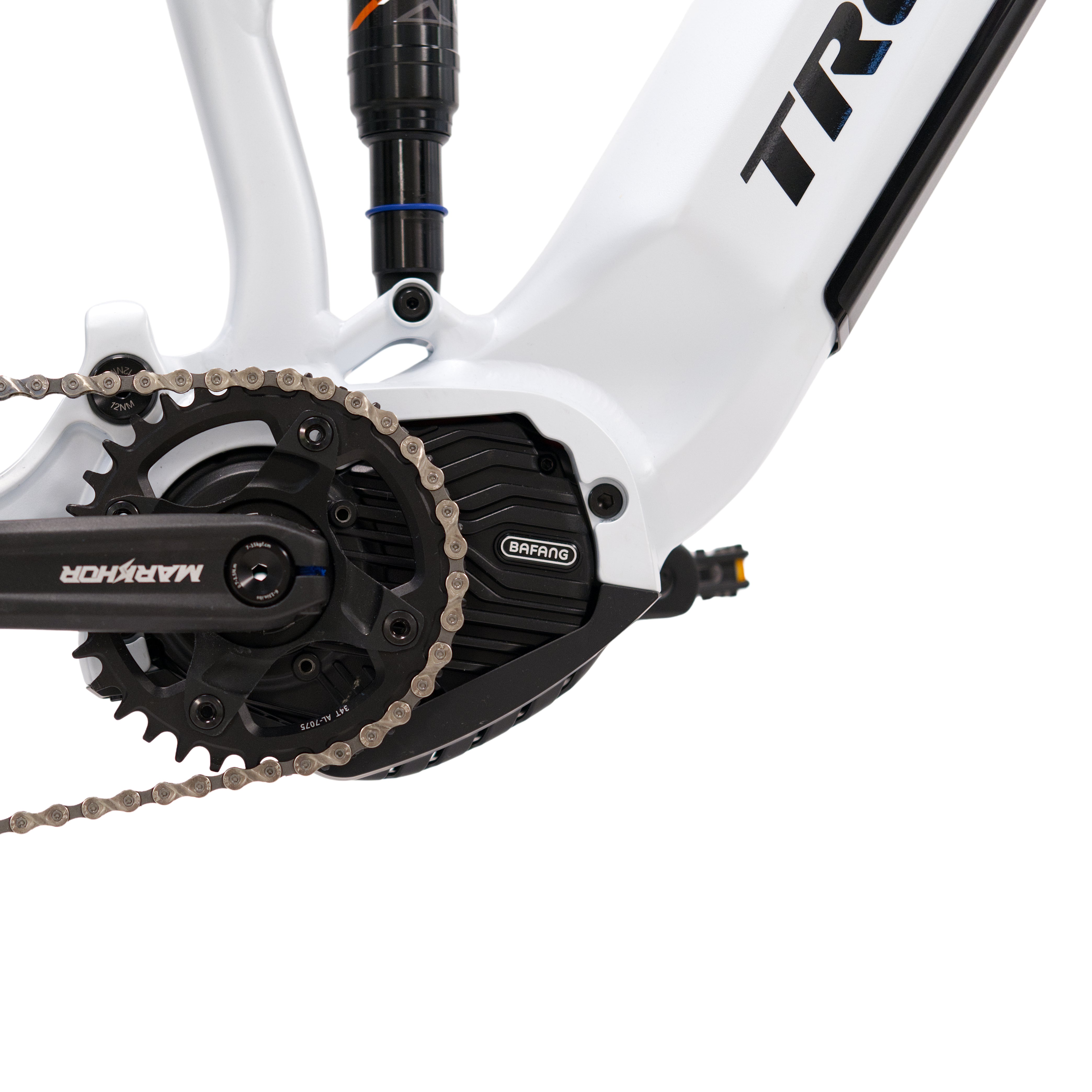

Rapid acceleration and hill climbs with the full power 500W Bafang M560 Mid drive Motor and drive system; boasting best in class torque rating of 130 N.m
Equipped with 40mm Kenda gravel tires as standard. The Aurora Frame provides up to 48mm tire clearance.
Rated Torque
Top Speed*
Est. Range
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
Frame and Main Components
Frame:
AL6061-T6 EBC All-Mountain
Front Fork:
RST Alpha 120 mm
(Optional) Marzzochi Bomber V2

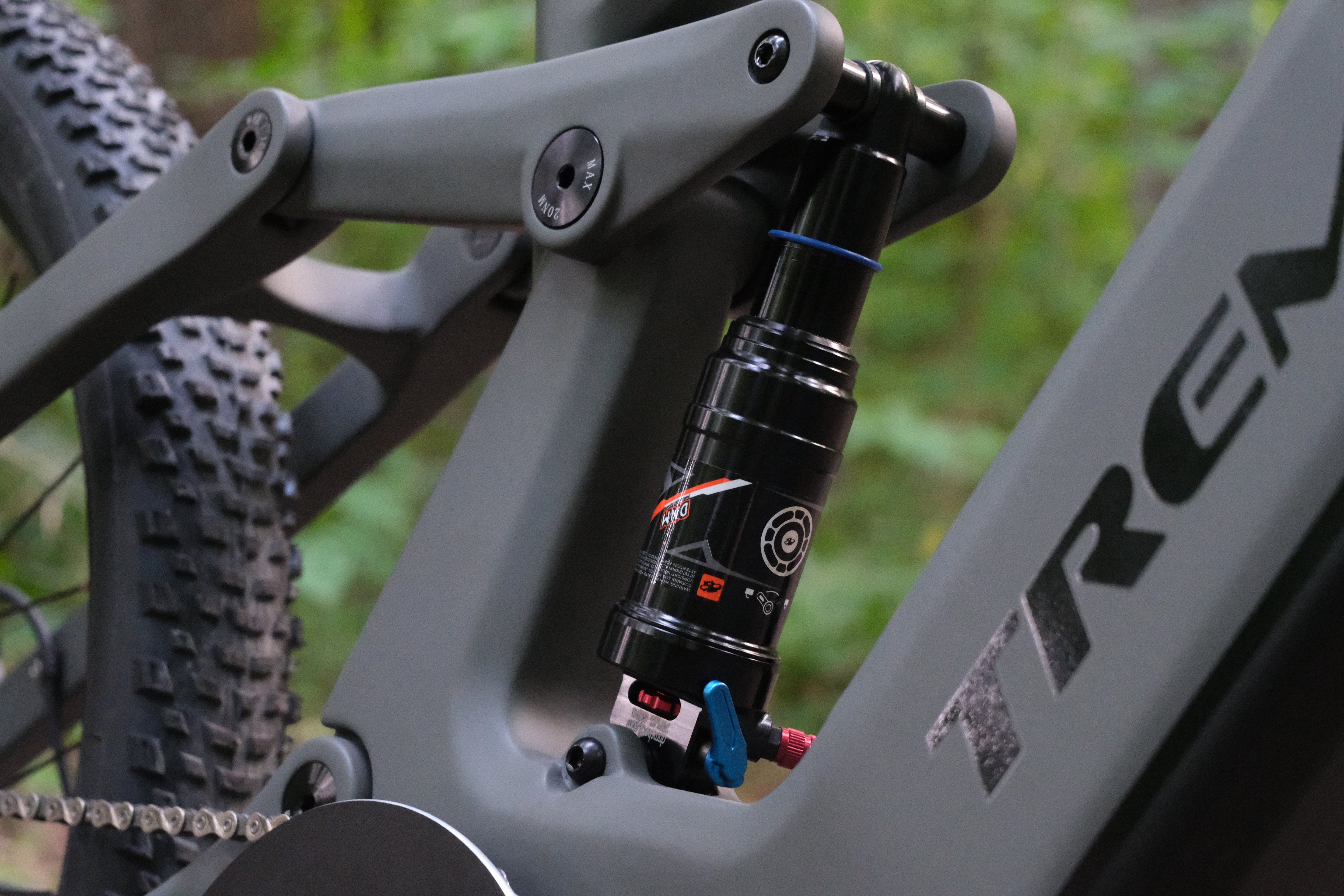

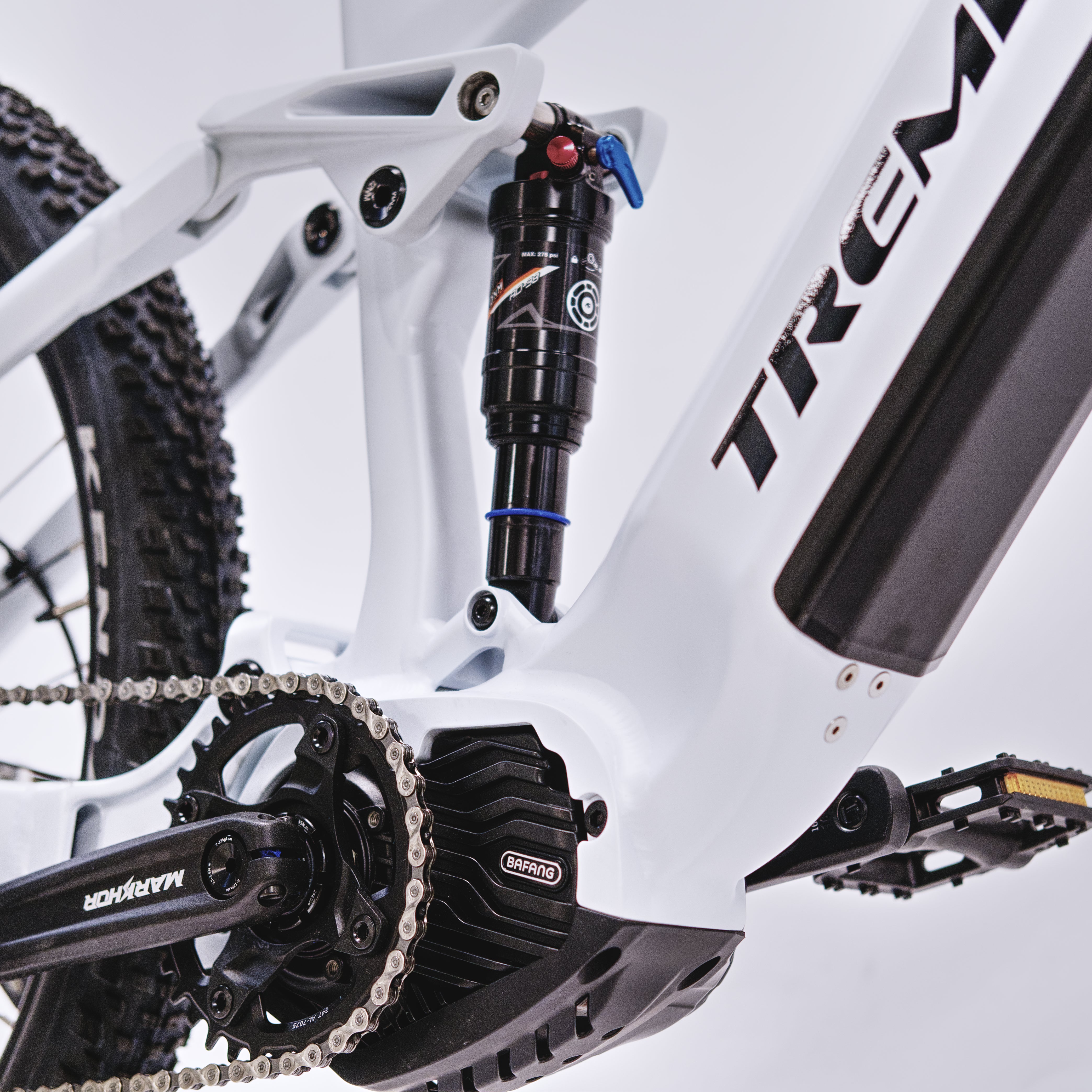

Rear Shock:
DNM Air Shock
(Optional) RockShox Deluxe Air
Stem:
PROMAX - MA-596 AL Alloy 6061 adjustable
Handlebar:
L780mm Aluminum Alloy 6061
Wheelset:
27.5 inchAluminum Alloy rim for MTB
KENDA BOOSTER, 27.5*2.3
F/R Brakes:
TEKTRO E3520 hydraulic Disc-brake, 180mm disc
Saddle:
Sport type (Brand:SR)
Electrical System
Motor:
BAFANG M560 48V 500W mid drive motor ,Torque:130 NM
Battery:
48V 15Ah (LG 5000mah) 720Wh, UL certified
Controller:
BAFANG integrated/ Waterproof and quick release connector- BUS protocol
PAS:
Torque sensor integrated inside BAFANG motor (Brand:BAFANG)
Display:

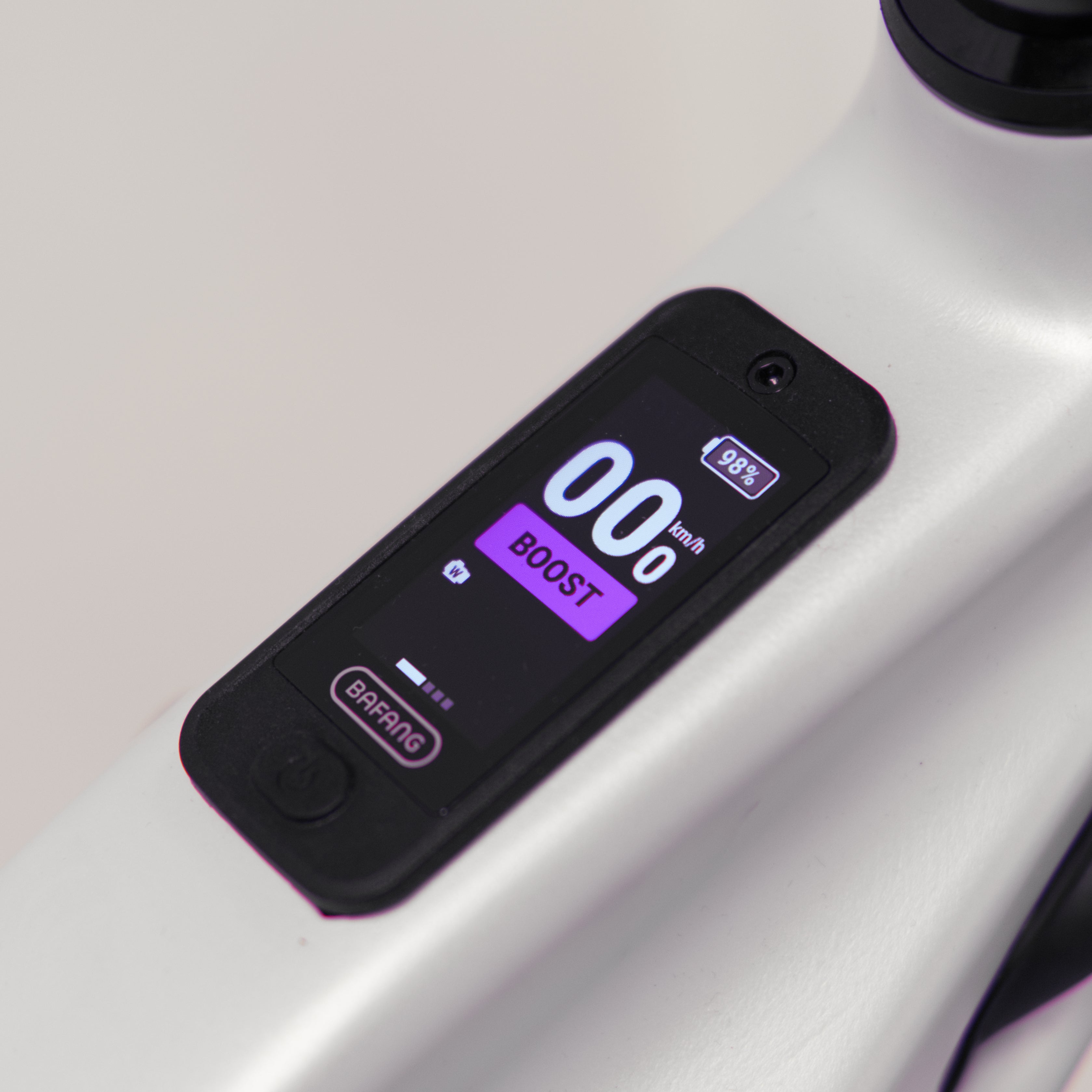

BAFANG DP color TFT display (with Bluetooth) integrated inside the frame
Front Light:
QD240 LED light (Brand: STAR UNION)
Rear Light:
N/A
Charger:
54.6V3A US standard DC2.1
Transmission
Crank:
Bafang, 160 mm
Chainwheel :
Steel 34 T*160 mm (Brand:BAFANG)

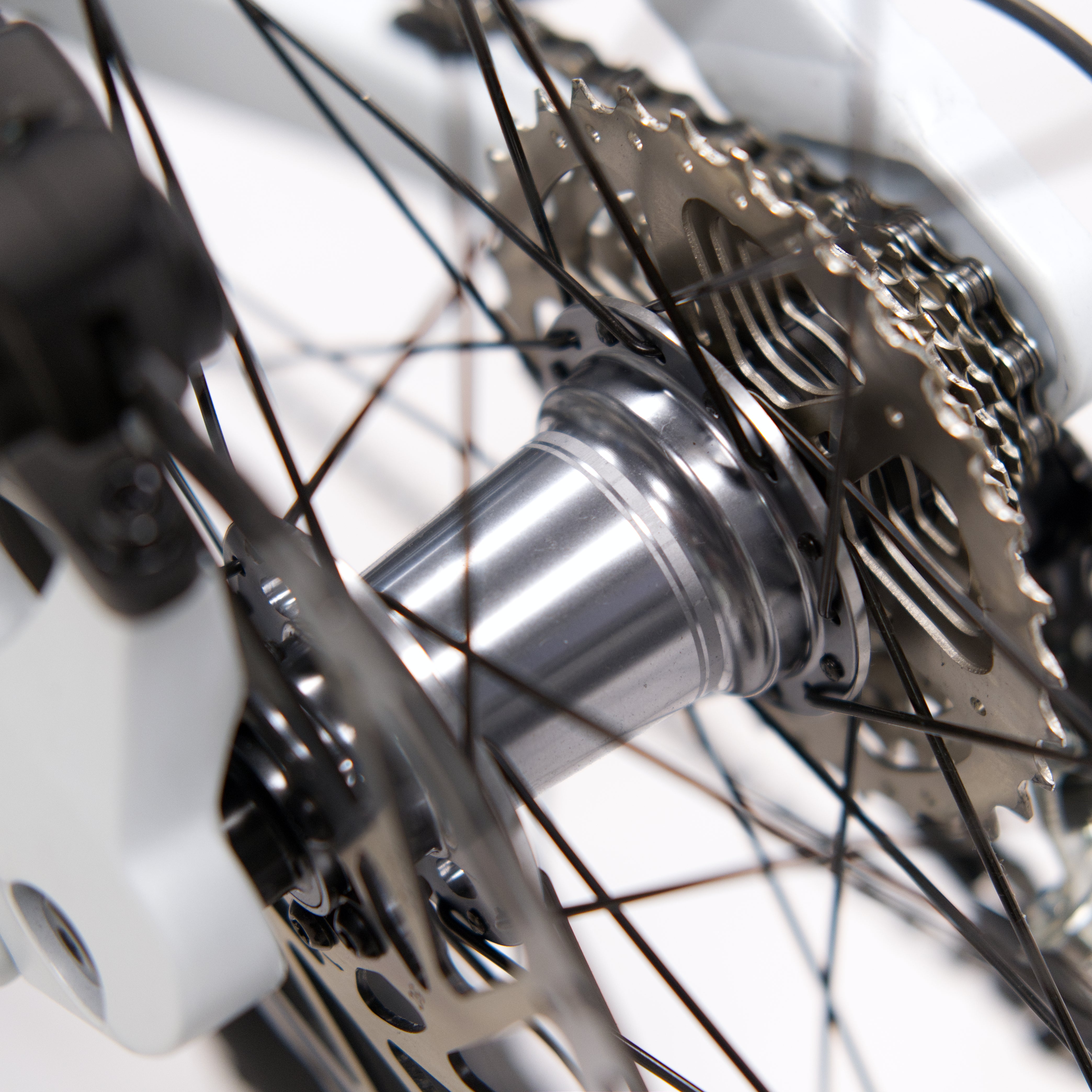

Freewheel:
SHIMANO CS-HG201-9 9 Speed Cassette
Chain:
Performance
Top Speed:
32 km/h (adjustable)
Est. Range:
80-100 km
Charging Time:
4.5 hr (Charge from 0% to 100%)
Total Weight:
28.5 KGS
Rider Height:
160cm-195cm
Maximum Payload:
130 KGS
