MYOKEN
Class Configurator
BUILD DETAILS
The Myoken folding e-bike is purpose-built for city explorers, daily commuters, and riders looking for value and performance in a small package, The compact and capable Myoken offers a comfortable and nimble ride, with minimal maintenance.... Plus a whole lot of customization and accessories!
- Size (SM) Frameset - Recommended Rider Height: 5'0" - 6'2" (150 cm - 188 cm)
Performance
Top Speed:32 kph
Est. Range: 40-60 km
Curb Weight: 20.8 Kg
Charging Time: 3 - 5 hr
Payload Capacity: 220 lbs.
Specifications
FRAME & MAIN COMPONENTS |
|
|
Frame |
20-inch foldable aluminum alloy (AL6061) |
|
Front Fork |
AL6061 |
|
Headset |
AL6061 |
|
Handlebar |
22.2×25.4×580mm, 6°, AL6061 |
|
Stem |
foldable, AL6061 |
|

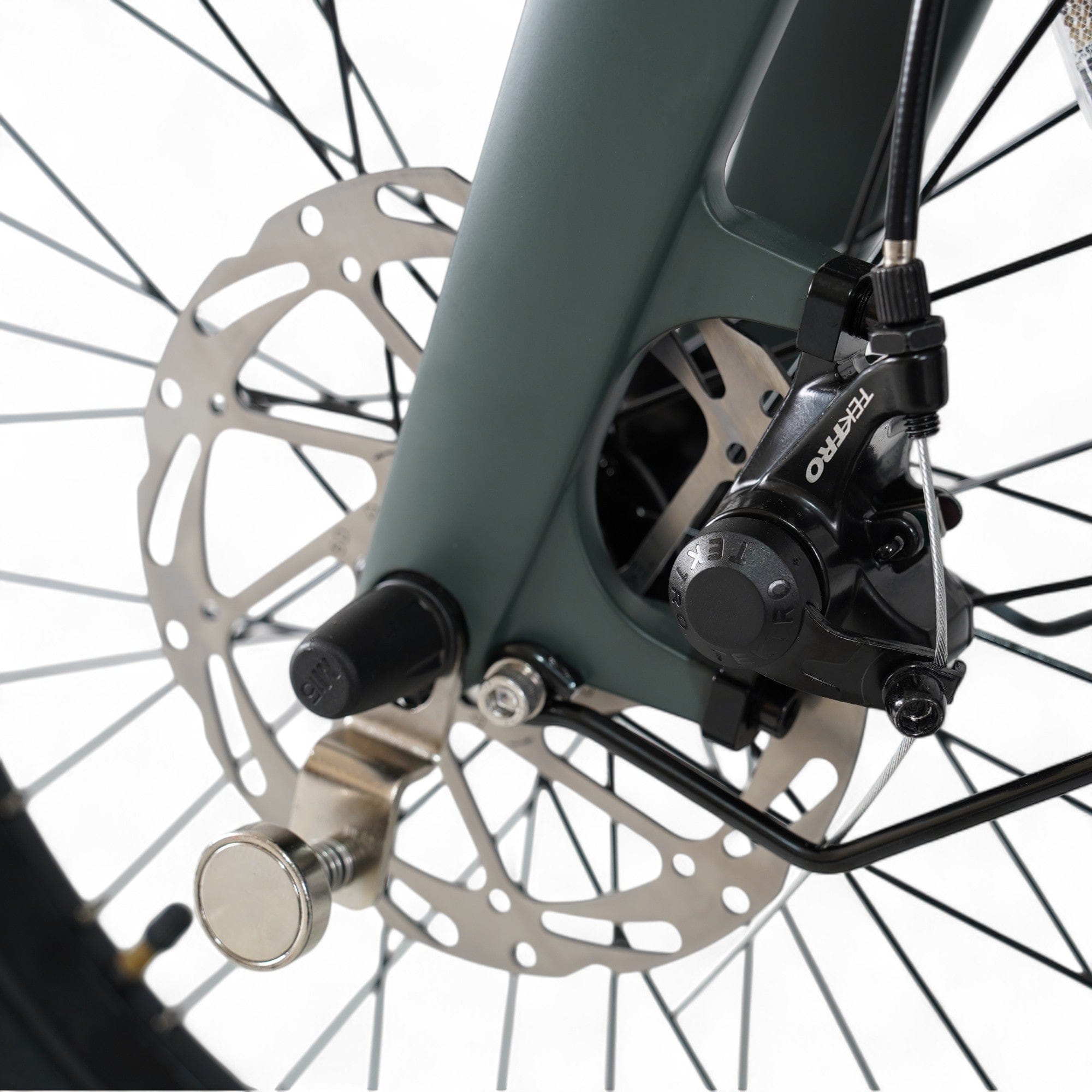

Brakes |
TEKTRO mechanical disc brakes, 160mm disc |
|
Saddle |
VL-4122 |
|
Bell |
Mechanical bell |
|
Rims |
20-inch double wall aluminum alloy |
|
Tires |
KENDA K1145, 20×2.3 |
|
Fenders |
20-inch aluminum alloy |
|
Rear Rack |
Aluminum alloy |
|
Front Basket |
Optional |
|
Kickstand |
Aluminum alloy |
Transmission |
|
|
Crankset |
11M-64T-130-L170 aluminum alloy |
|
Chain/Belt |
1364mm-11M-12mm Belt Drive |
|
Freewheel |
11M-22T-9K, 22T single gear |
|
Bottom Bracket |
68mm aluminum alloy |
ELECTRICAL SYSTEM |
|
|
Motor |
BAFANG H405, 36V 350W rear hub, torque 45N·m |
|
Sensor |
LDS BBSS1P 12P PAS |
|
Battery |
36V 10.5Ah (LG 3500mAh 18650 cells), UL certified, seat-post design |
|
Charger |
42V 2A, US standard, DC2.1, UL certified |
|
Thumb throttle |
Optional |
|

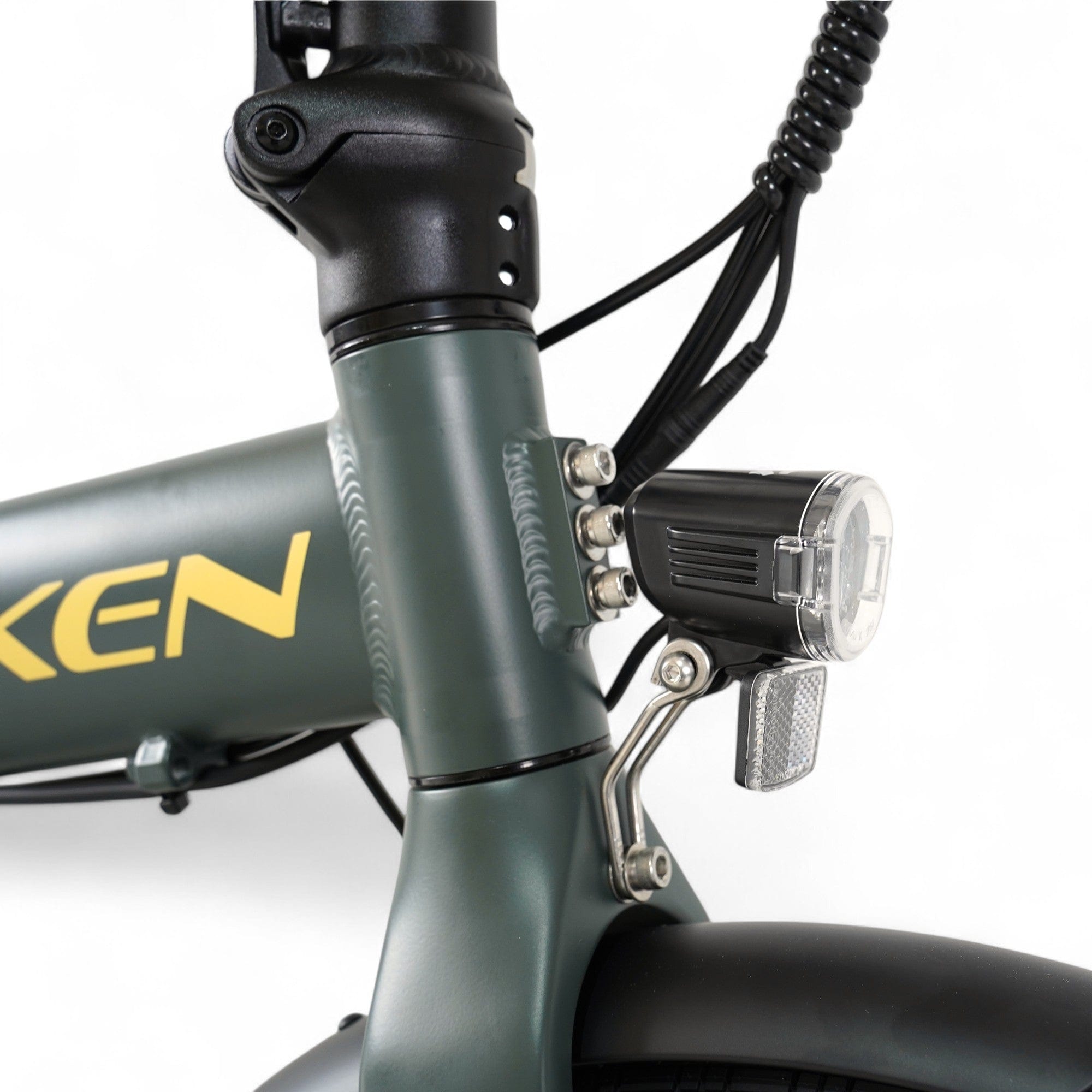

Front Light |
LED |
|
Cables |
Waterproof and quick release |
|
Controller |
36V, max current 15A |
|
Display |
LCD with USB |
PERFORMANCE |
|
|
Size (Unfolded) |
1,520×590×1,150 mm |
|
Size (Folded) |
850×420×720 mm |
|
Max Speed |
32 km/h |
|
Maximum Range |
60 - 70 km |
|
Charging Time |
5–6 hours (0% to 100%) |
|
Maximum Payload |
100kg |
|
Recommended Rider Height |
155–195 cm |
|
Net Weight |
20.8 kg |
|
Gross Weight |
28 kg |
|
Carton Size |
850×450×720mm (folded packaging) |
GEOMETRY:
ADD-ONS
Couldn't load pickup availability
Pickup available at Store location
Usually ready in 24 hoursIf you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
2-Years Warranty
Experience peace of mind with parts, and service from local Canadian bike shops, under our comprehensive warranty coverage
Free Shipping
Get your e-bike delivered in just 2–6 days, Across Canada.
30-Day Returns
Changed your mind? Return or exchange your e-bike within 30 days, no hassle.

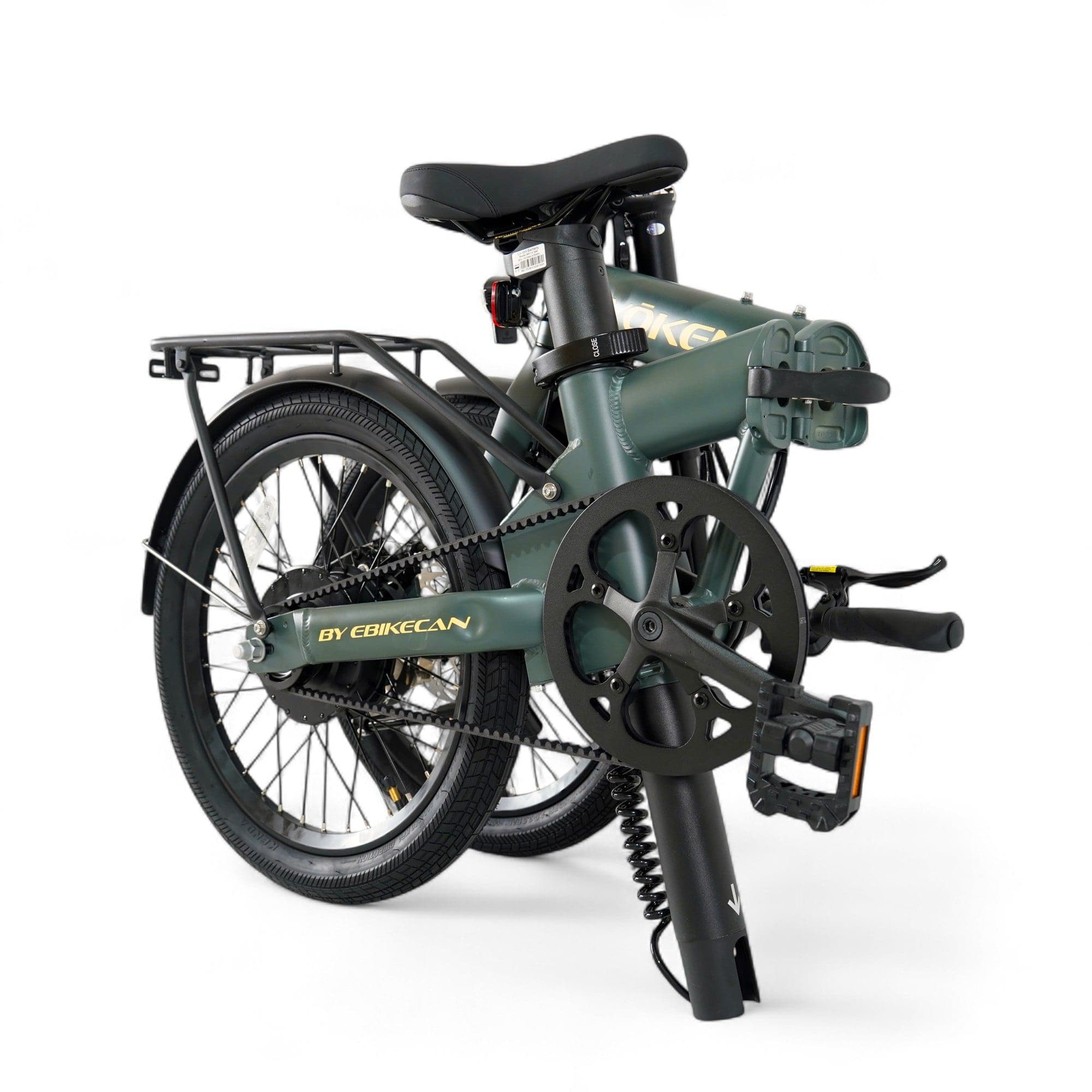

LIGHT & Accessible

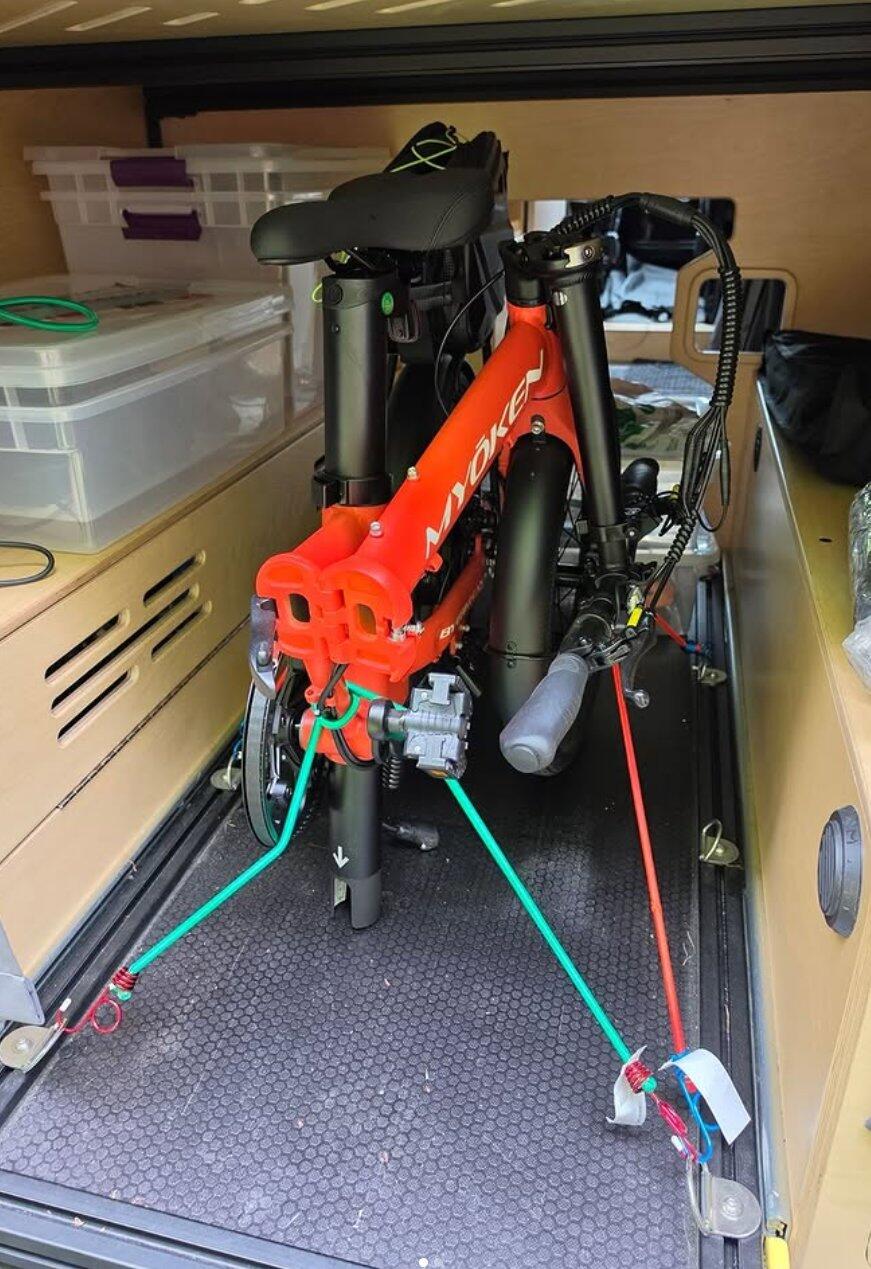

Engineered with a lightweight T6 aluminum folding frame that collapses in seconds, the Myoken transitions seamlessly from ride mode to storage-ready without compromise. The compact 20-inch wheelset delivers nimble handling through tight urban spaces while providing a lower stand over height that makes mounting and dismounting effortless for riders of all ages and abilities. Stash it under your desk, in your trunk, or on public transit.

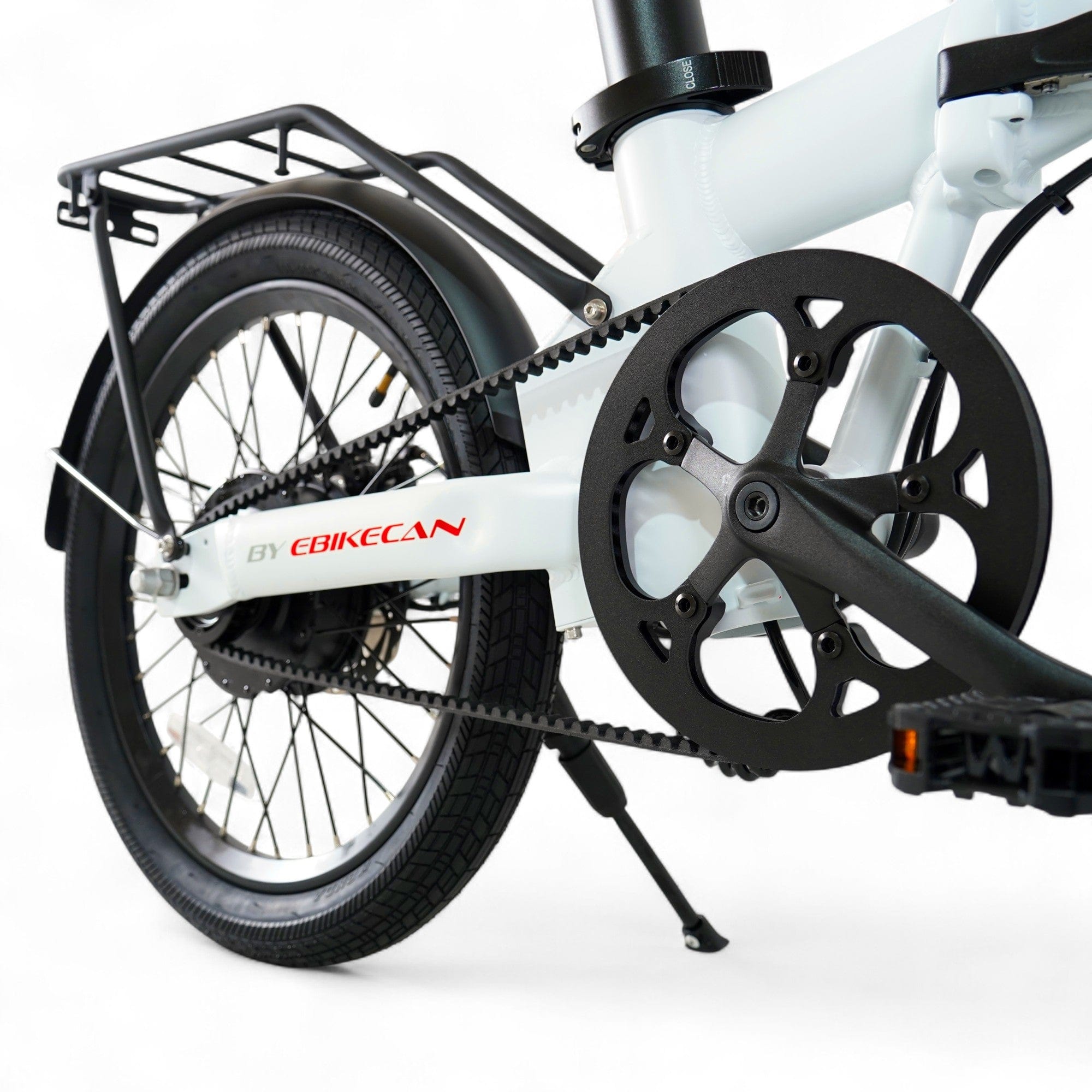

CARBON BELT DRIVE
Myoken is equipped with a Dayco belt drive system, delivering whisper-quiet operation with zero grease, zero rust, and virtually zero maintenance. The perfect choice for serious commuters with smooth, efficient power transfer that lasts 3x longer than traditional chains while keeping your hands and clothes clean on every ride.

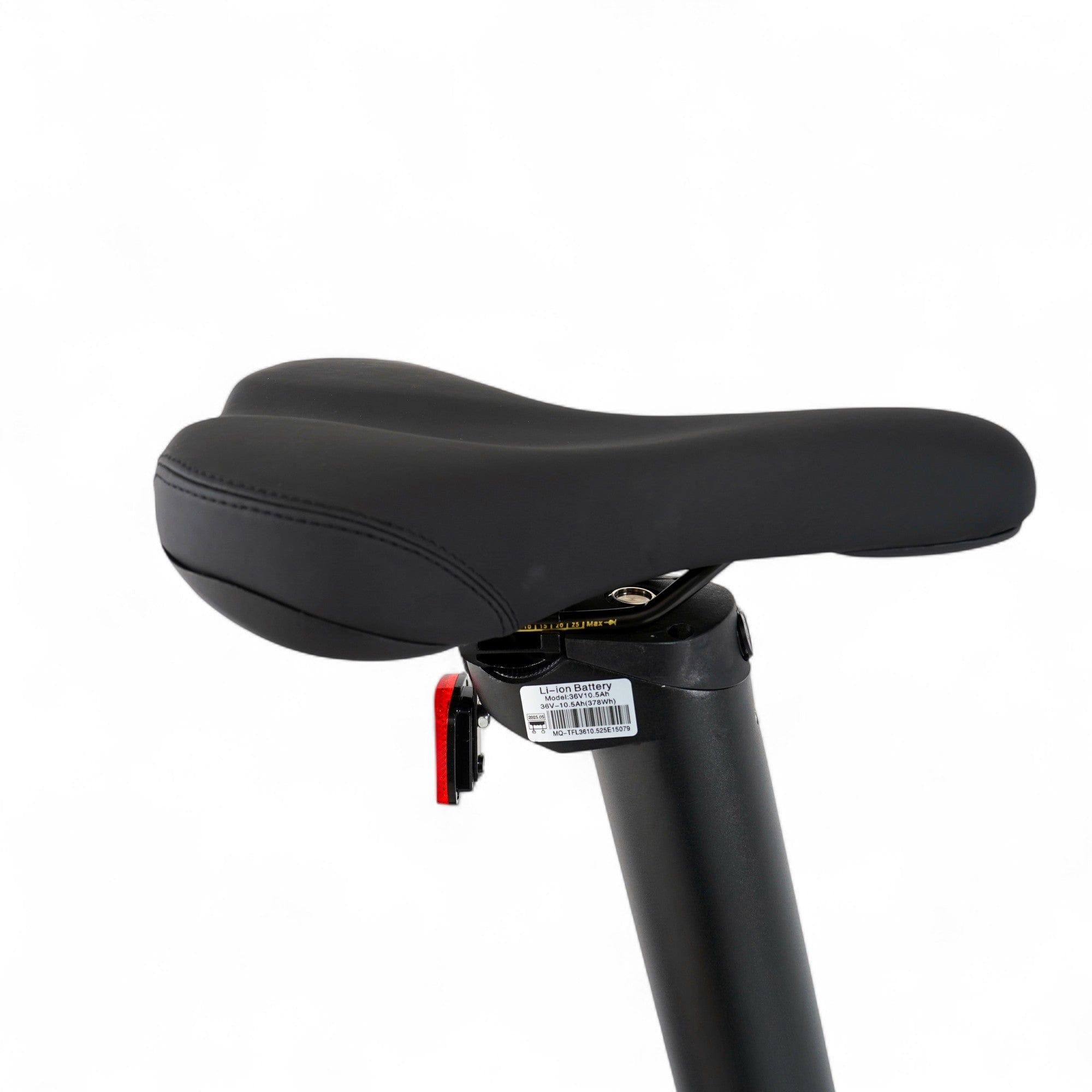

Seatpost Integrated battery
Removable LG Prismatic cell, UL-certified 378 Wh battery directly integrated into the seatpost for a sleek design, and optimal weight distribution.
Rated Torque
Top Speed
Est. Range

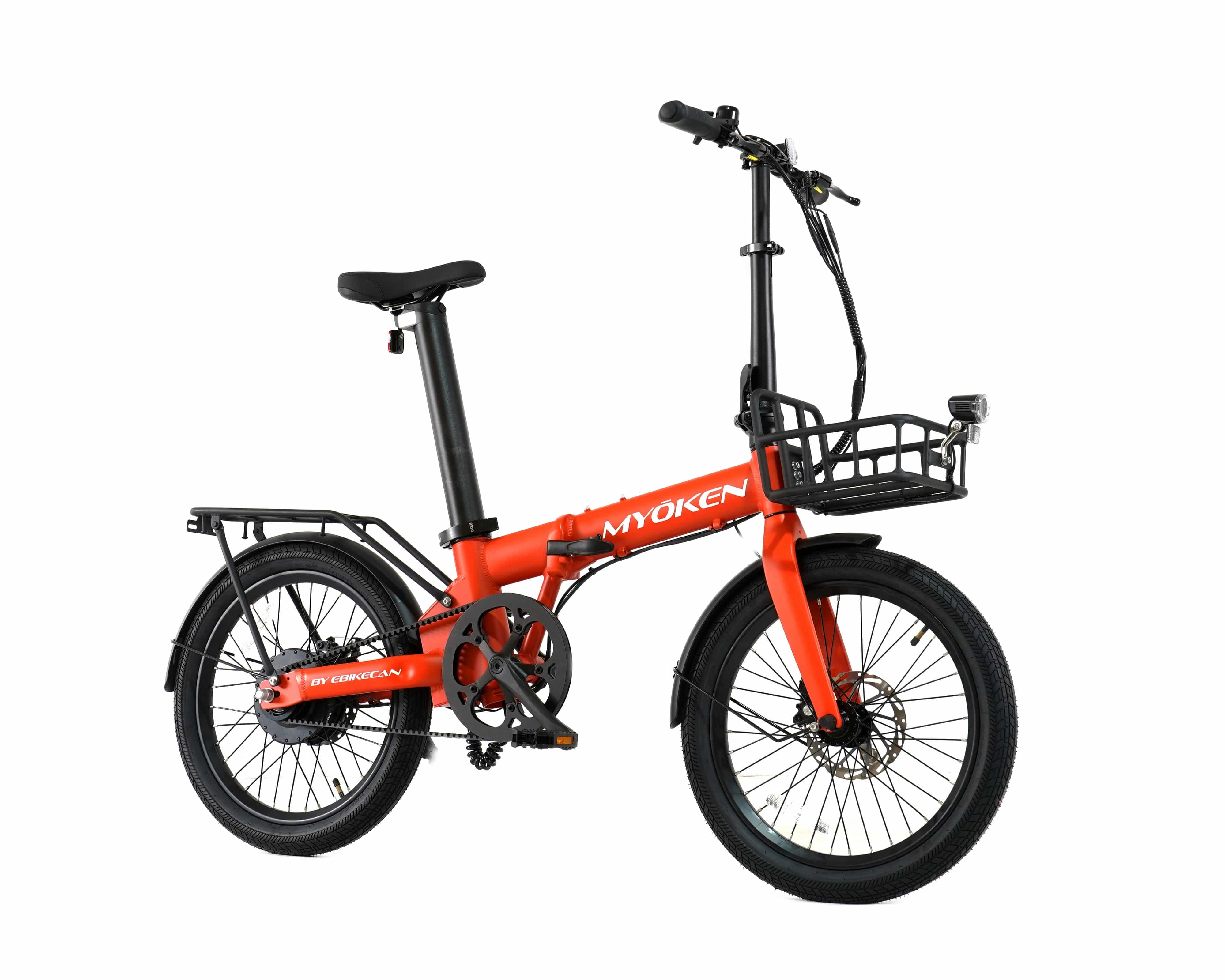

MYOKEN
Compact & Capable

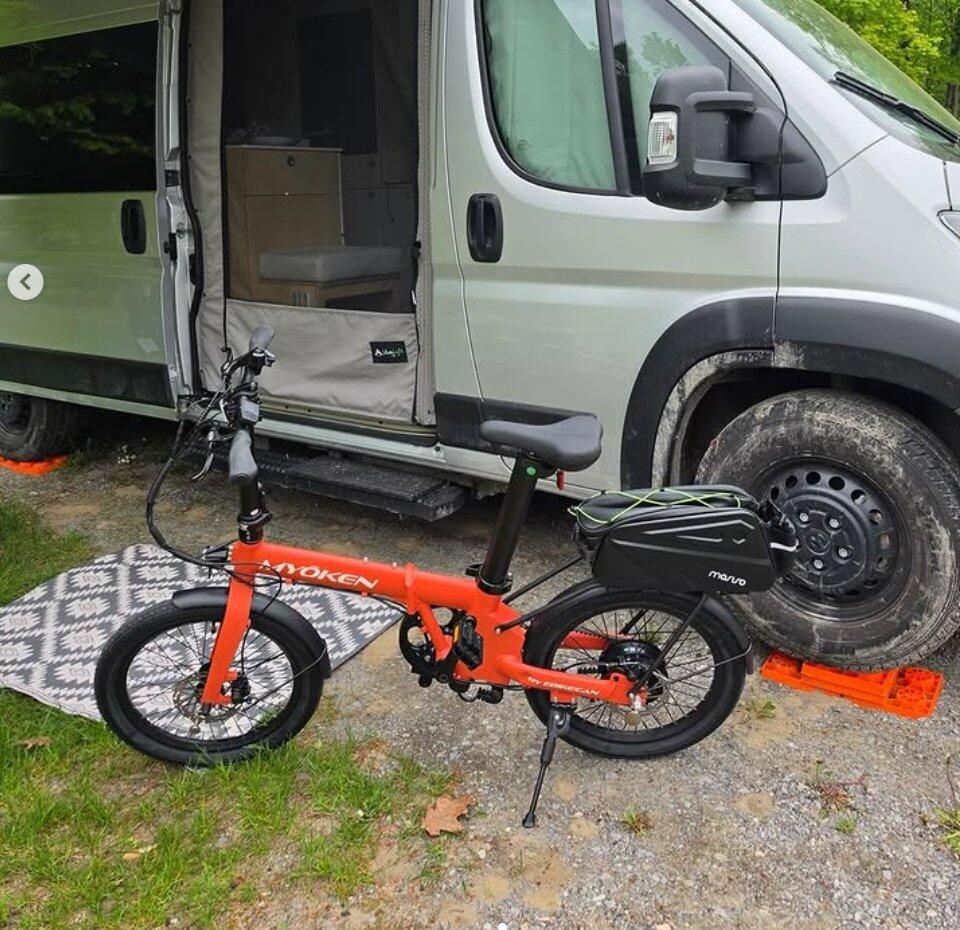

Lightweight aerospace-grade AL6061-T6 folding frame offers ultimate versatility from everyday rides to camping trips with tight space. Advanced alloy technology ensures a rigid, stable ride without the extra weight.

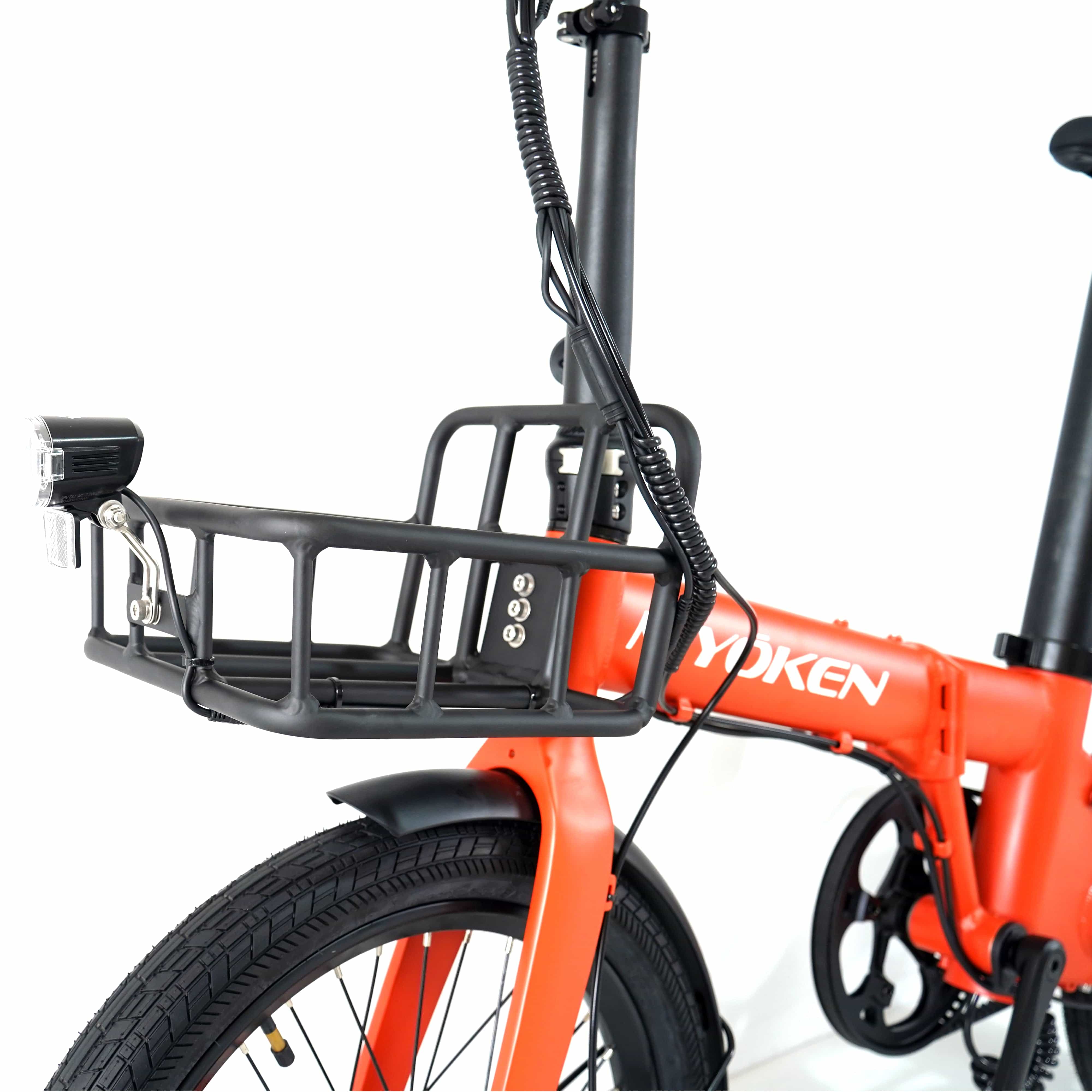

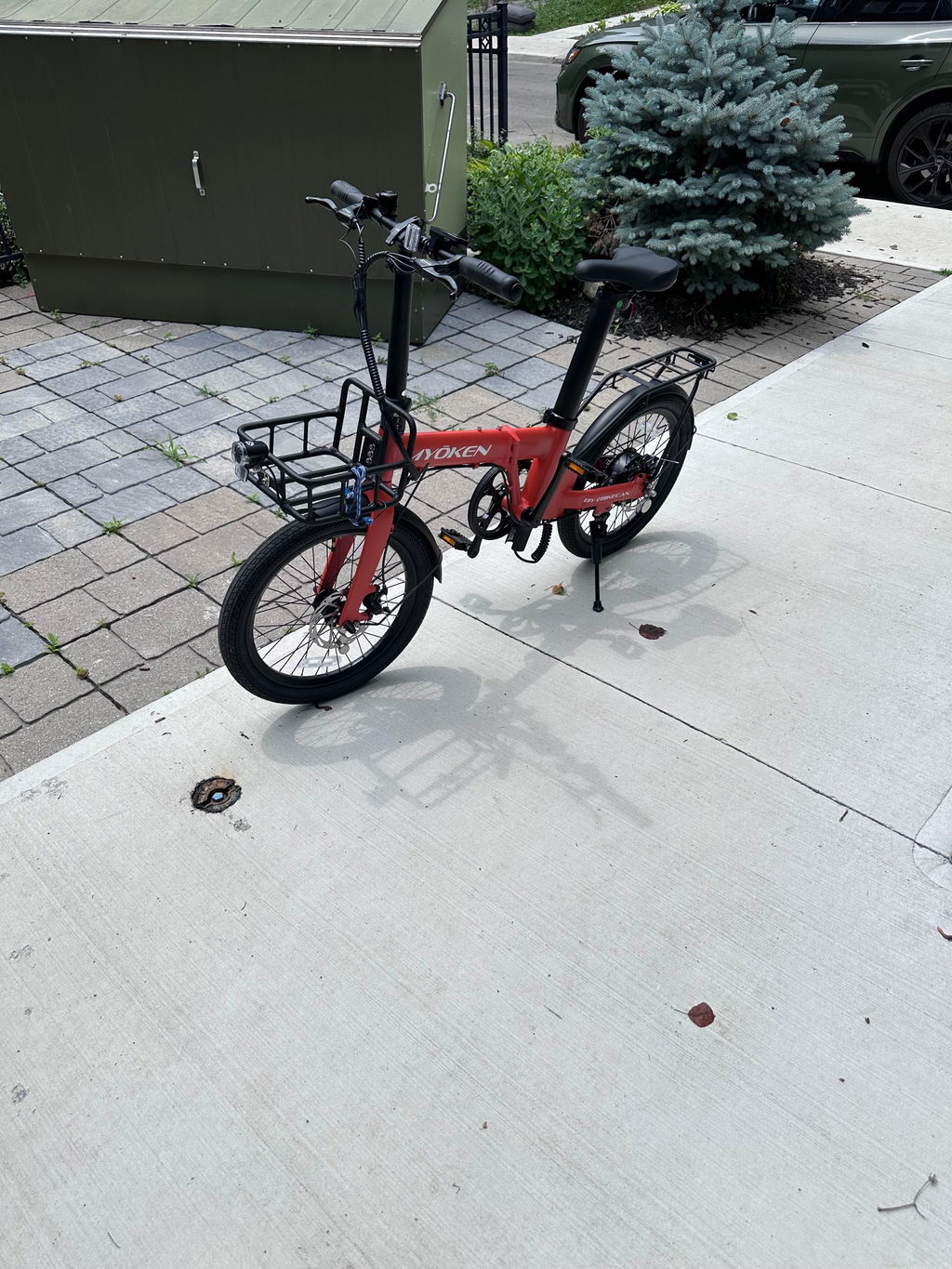

The Myoken comes standard with heavy duty rear luggage rack, rated for 20 Kg/45 lbs. Get even more cargo space (10 Kg/20 lbs.) with our optional front basket!
378Wh high-capacity Li-ion LG battery hidden away in the seat post for a lowkey design.
1x direct Dayco Carbon belt drive system, paired with a 350W| 45 N.m Bafang Hub Motor. Less maintenance, more time riding!
20x2.3-in wheels designed for agile & stable handling in urban environments. The low step-over height makes mounting effortless, giving all riders easy access, confidence, and added comfort.

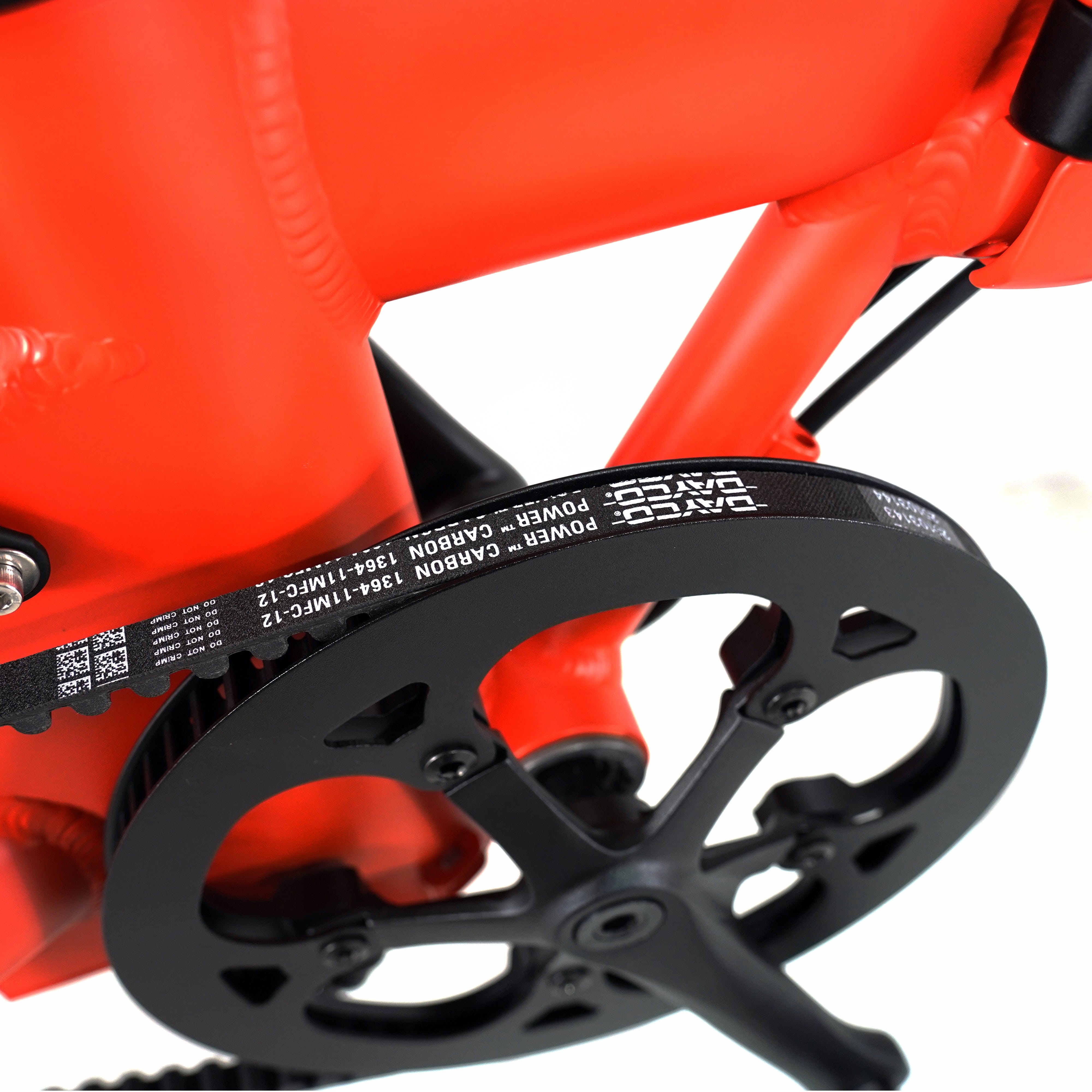

CDX Belt Drive
1X1 Single-Speed DAYCO Carbon Belt Drive System
Silent & maintenance-free drivetrain.
IPX65 RATED
All electronics, wiring and electrical connections on the Myoken are designed and tested to IP65 rating for water and dust protection.
UL-C Certified
All Ebikecan models & electronics are tested and certified by SGS Labs to UL-2849 / UL-2271 standards .
Specifications
Frame and Main Components
Frame: Aluminium AL6061-T6
Front Fork: AL6061
Stem: ZHD- AL6061 Foldable
Handlebar: AL6061 Alloy
Wheelset: 20in. double wall aluminum alloy rims
Tires: Kenda - K1145 20*2.3,
F/R Brakes: TEKTRO - 160mm Disc Brakes
Saddle: Velo Plush Leather
Electrical System
Motor: BAFANG H-405 RM1; 350W, 45 N.M
Battery: LG cells - 36V10.5Ah 378Wh (UL-2271)
Controller: 36V15A Sine Wave Controller,
PAS: 12P PAS Cadence Sensor
Throttle: Thumb Throttle on demand
Display: LCD Display, with USB, VELOFOX
F/R Lighting: STAR UNION - Full LED
Charger: 42V 2A 110V DC2.1, UL Certified;
Transmission
Crank: Aluminum alloy 170mm
Belt Pulley: Aluminium 11M-64T
Freewheel: 22T Single gear
Trans. Belt: DAYCO 1364mm-11M-12mm
Performance
Top Speed: 32 km/h
Est. Range: 40-70 km
Recommended Rider Height: 5'0" - 6'2" (150 cm - 188 cm)
Curb Weight: 20.8 Kg/ 45 lbs.
Charging Time: 3 hours
Payload Capacity: 110 Kg/220 lbs.
Measurements
Geometry
fast & easy setup
Spend less time setting up and more time riding.
Our e-bikes arrive %90 pre-assembled, with expert video to walk you through and get you started in minutes.
FAQs
What is the estimated range on a full battery charge?
With pedal assist (PAS): 60–65 km (Level 1)
By throttle only: 40–50 km
How long does it take to fully charge the battery?
Charging from 0% to 100% takes approximately 5–6 hours.
What kind of warranty comes with your E-bikes?
Frame: 24 Months
Electrical Components: 12 months
(Includes: battery, motor, controller, charger, display, sensor, and throttle)
Can I assemble them by myself?
Yes! Our E-bikes arrive 90% pre-assembled. You’ll only need to install the handlebar, front tire, and lights. The process is straightforward and beginner-friendly.
Are financing or payment plans available?
Yes, we offer flexible payment options through Klarna and PayPlan by RBC.
You can easily select your preferred plan at checkout — it only takes a few clicks!
What are the differences between Class 1, Class 2, and Class 3 E-bikes?
Class 1: Pedal assist only, no throttle — up to 32 km/h
Class 2: Pedal assist + throttle — up to 32 km/h
Class 3: Pedal assist only, no throttle — up to 45 km/h
What is the recommended rider height range?
Myoken is ideal for riders between 5" and 6'4" (152–194 cm)
Is Myoken water resistant?
Yes, all our e-bikes are designed with an IPX65 water resistance rating, making them safe to use in rainy conditions. However, we advise against fully submerging the e-bike in water.
